123

BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION

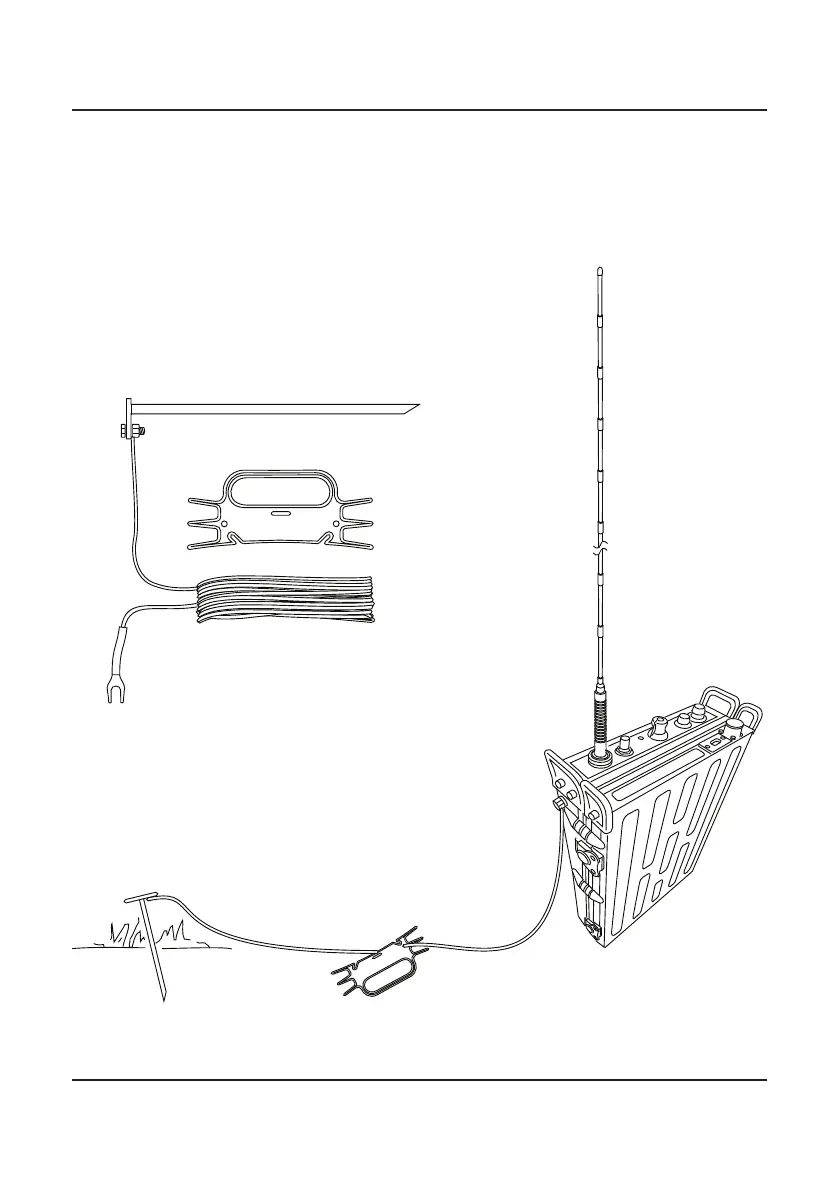

Single-wire Counterpoise (P/N 4090-02-09)

When using either a whip or the long-wire antenna use of the counterpoise

supplied is recommended for better efciency. This is connected to the PRC-

4090 via the ground post.
