BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INTRODUCTION

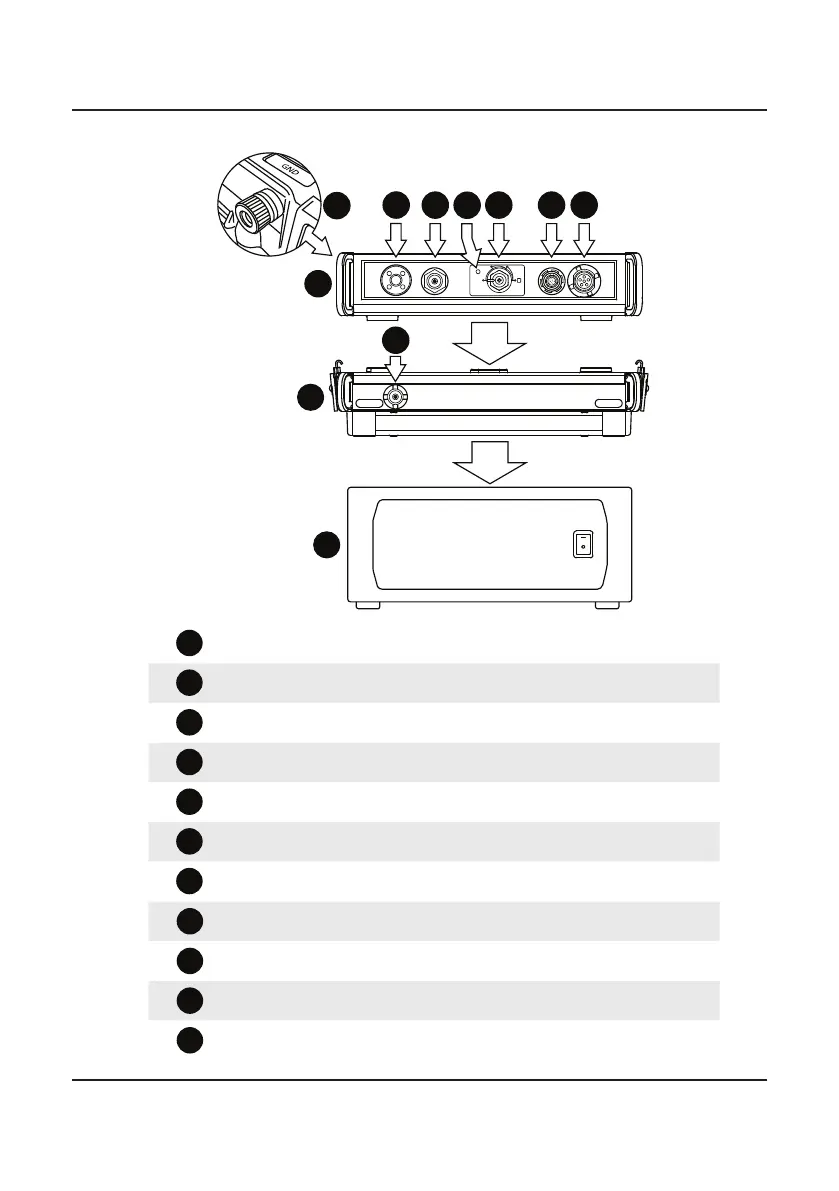

Base Station Conguration (front)
3
2
1
5
6
9
10
OFF
EMERG.
ON
Z
8
7
11
4
1
PRC-4090 Transceiver (P/N 4090-00-01)
2
PRC-4090 System Docking Station (P/N 4090-05-00)
3
PRC-4022 Power Supply (P/N 4090-06-01)
4
Earth stud
5
Whip antenna connection
6
50 Ohm antenna connection
7
LED status indicator
8
On/Off, Emergency and Zeroise switch
9
PRC-4090 Control Handset connector
10
H250 Handset connector
11
RF Connector (from 50 Ohm output)
