8
BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INTRODUCTION

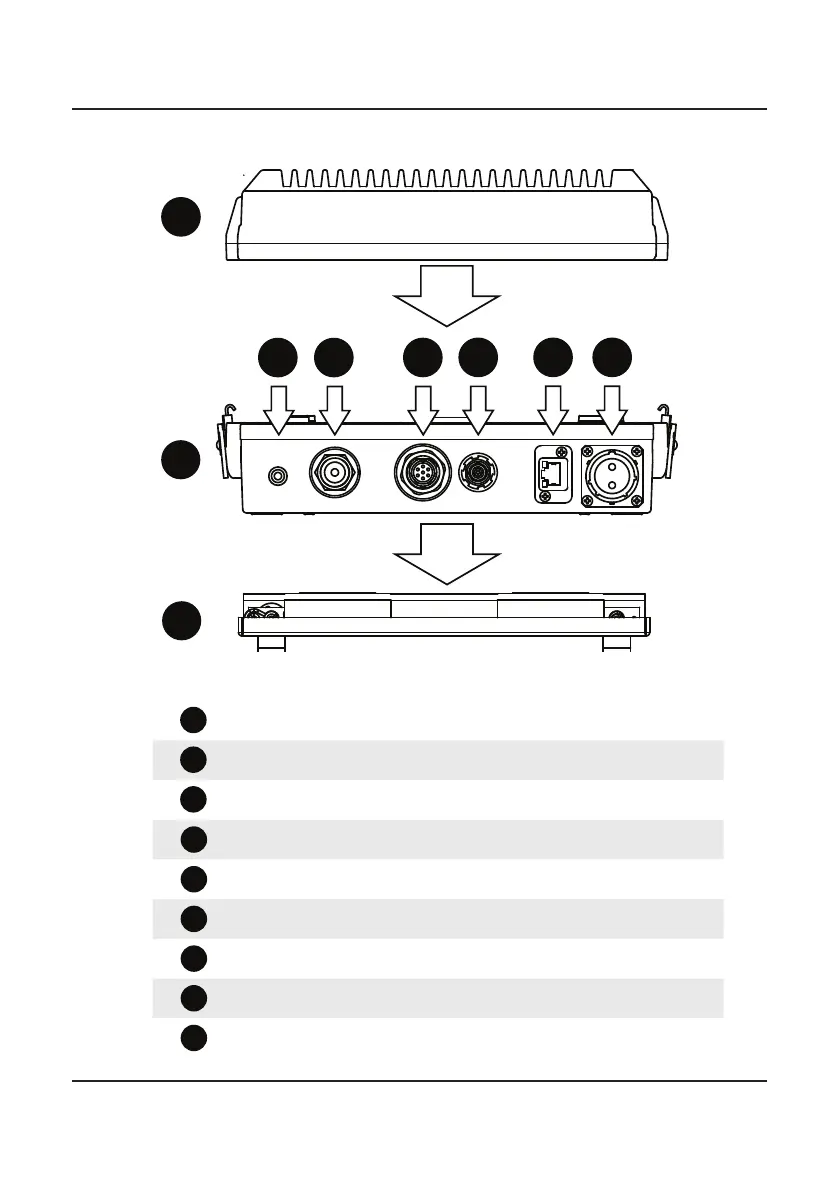

Mobile Conguration (rear)
2
3
1
5
6
7
8
9
4
1
PRC-4090 Transceiver (P/N 4090-00-01)
2
PRC-4090 System Docking Station (P/N 4090-05-00)
3
PRC-4090 Anti-vibration plate (P/N 4090-05-07)
4
Ground
5
Coaxial connection (RF out)
6
ATU Connector
7
Aux. PRC-4090 Control Handset connector
8
Ethernet connection (RJ45)
9
DC in (+11 V to +28 V DC)
