BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - APPENDICES

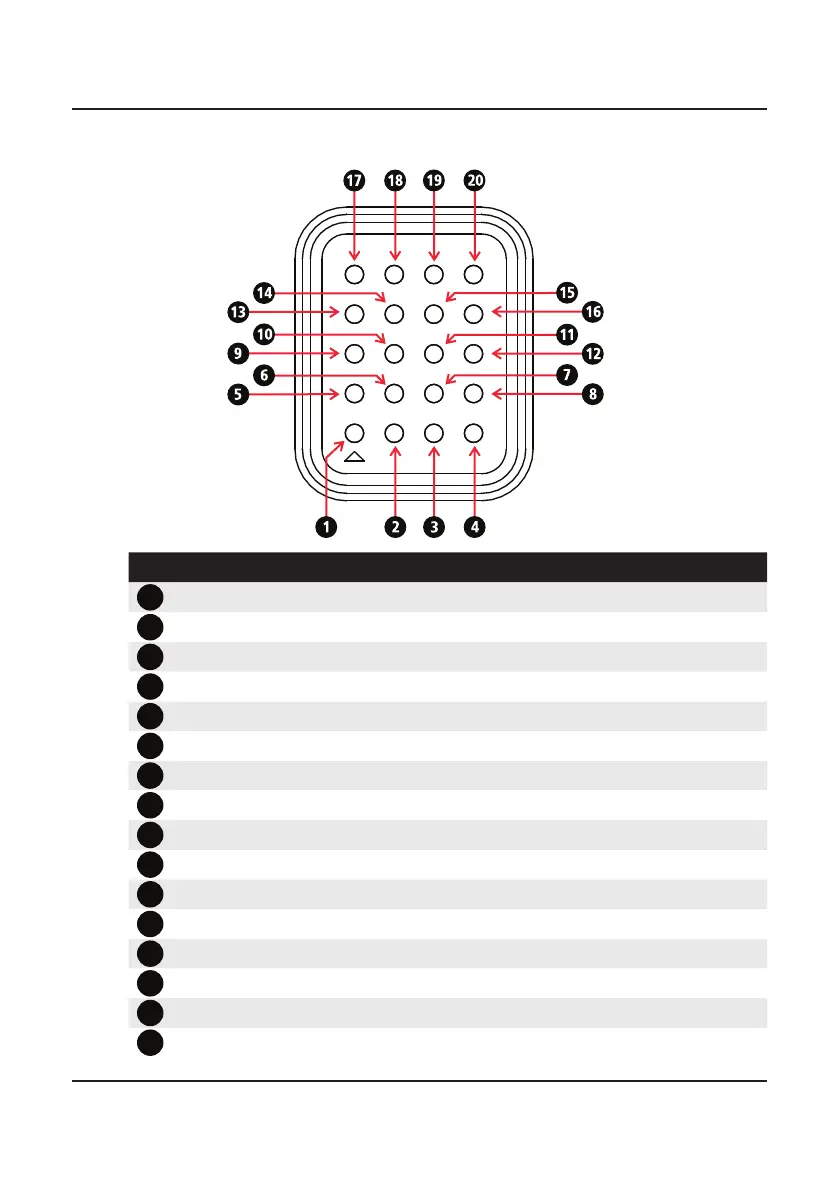

2. SDS Connector
PIN Signal
1
Handset Voltage
2
Handset GPS 1 Pulse per Second
3
CAN Bus positive
4
CAN Bus Negative
5
External GPS 1 Pulse per Second
6
Reserved
7
Handset Audio Negative
8
Handset Audio Positive
9
Ground
10
Ground
11
SDS Voltage Enable
12
SDS Voltage Enable
13
External ATU Voltage
14
External ATU Scan signal
15
External ATU Tuned signal
16
SDS Detect
