BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER -APPENDICES

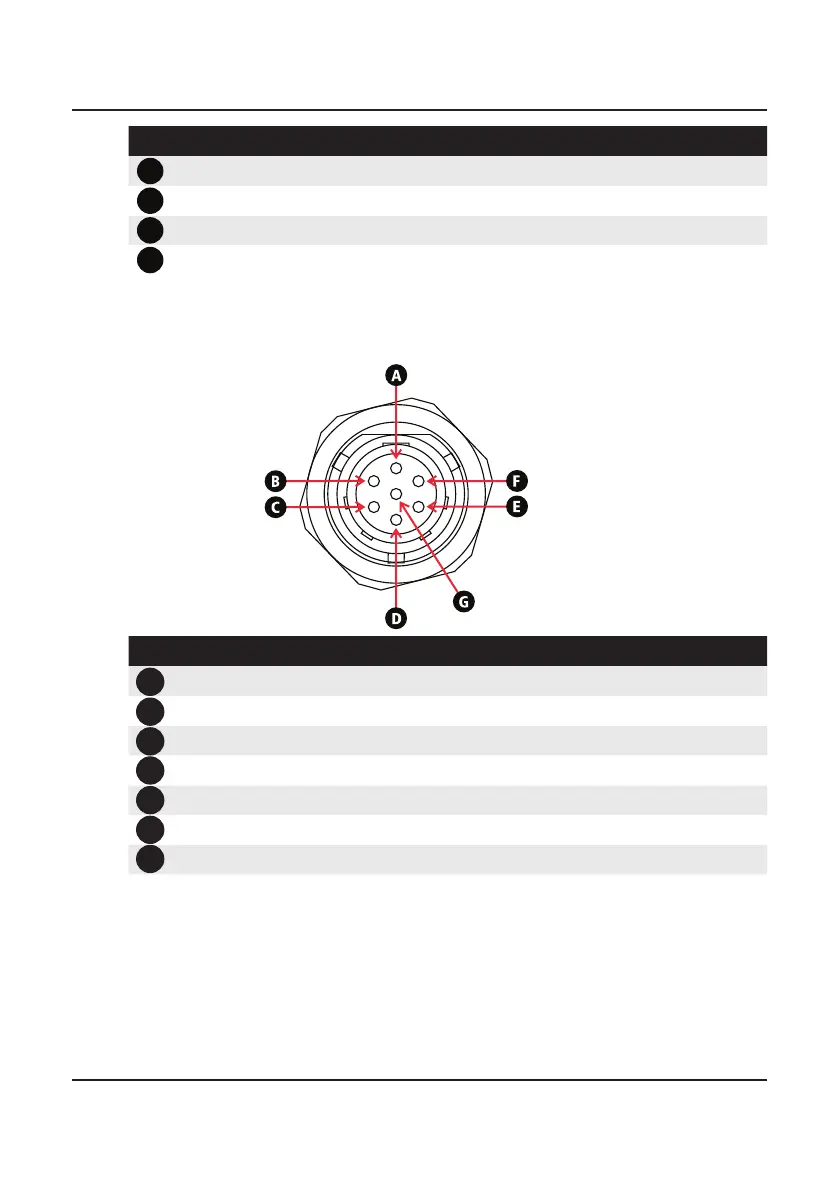

3. ATU Connector
PIN Signal
A
Ground
B
Recieve Data line
C
1 pulse per second
D
ATU Scan Line
E
ATU Tuned signal
F
ATU Voltage 13V8
G
Transmit data line
PIN Signal
17
Ethernet TX Data positive
18
Ethernet TX Data negative
19
Ethernet RX Data positive
20
Ethernet RX Data negative
