BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - APPENDICES

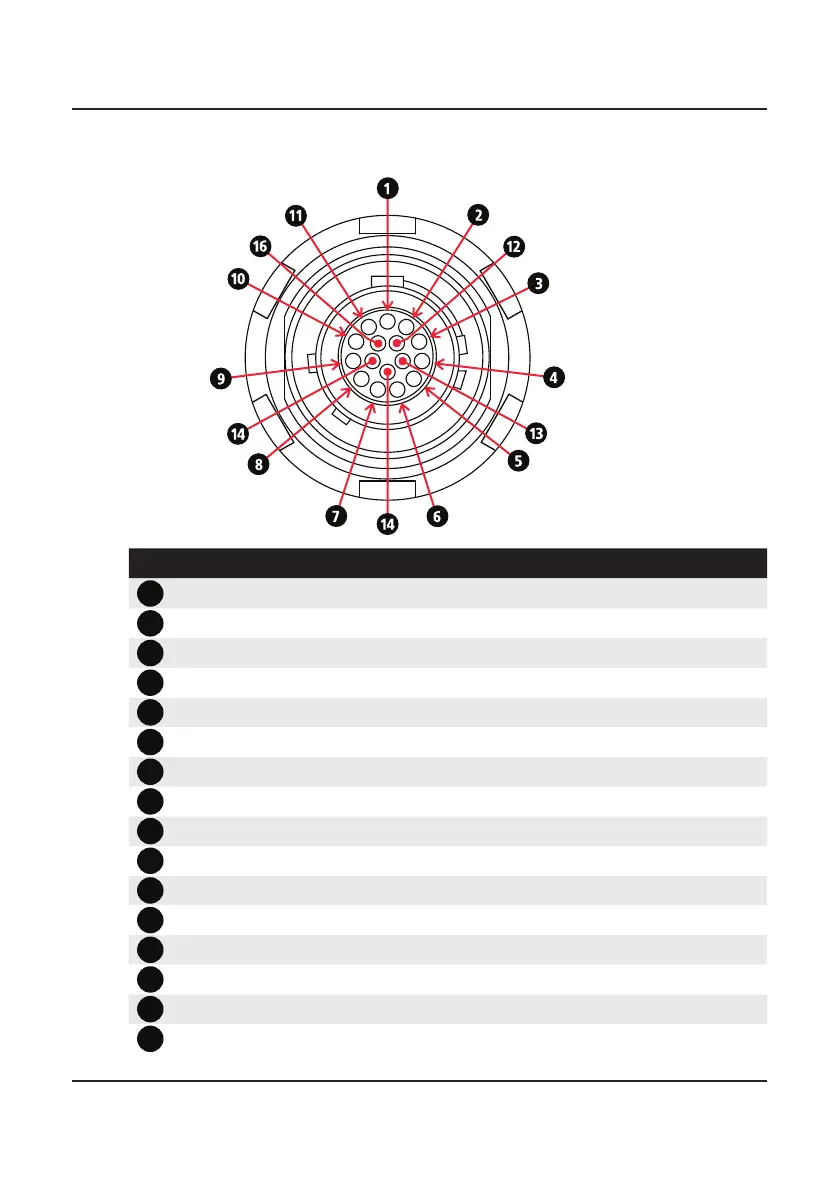

4. Control Handset Connector
PIN Signal
1
Ground
2
Handset Voltage
3
CAN Bus positive
4
CAN Bus Negative
5
Handset Audio Positive
6
Handset Audio Negative
7
Ethernet TX Data positive
8
Ethernet TX Data negative
9
Ethernet RX Data positive
10
Ethernet RX Data negative
11
Handset GPS 1 Pulse per Second
12
Reserved
13
Reserved
14
Reserved
15
Reserved
16
Reserved
