BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER -APPENDICES
PIN Signal
11
Speaker Out Positive
12
Dock Speaker Detection
13
H250 Microphone Input
14
H250 PTT
15
H250 Speaker output

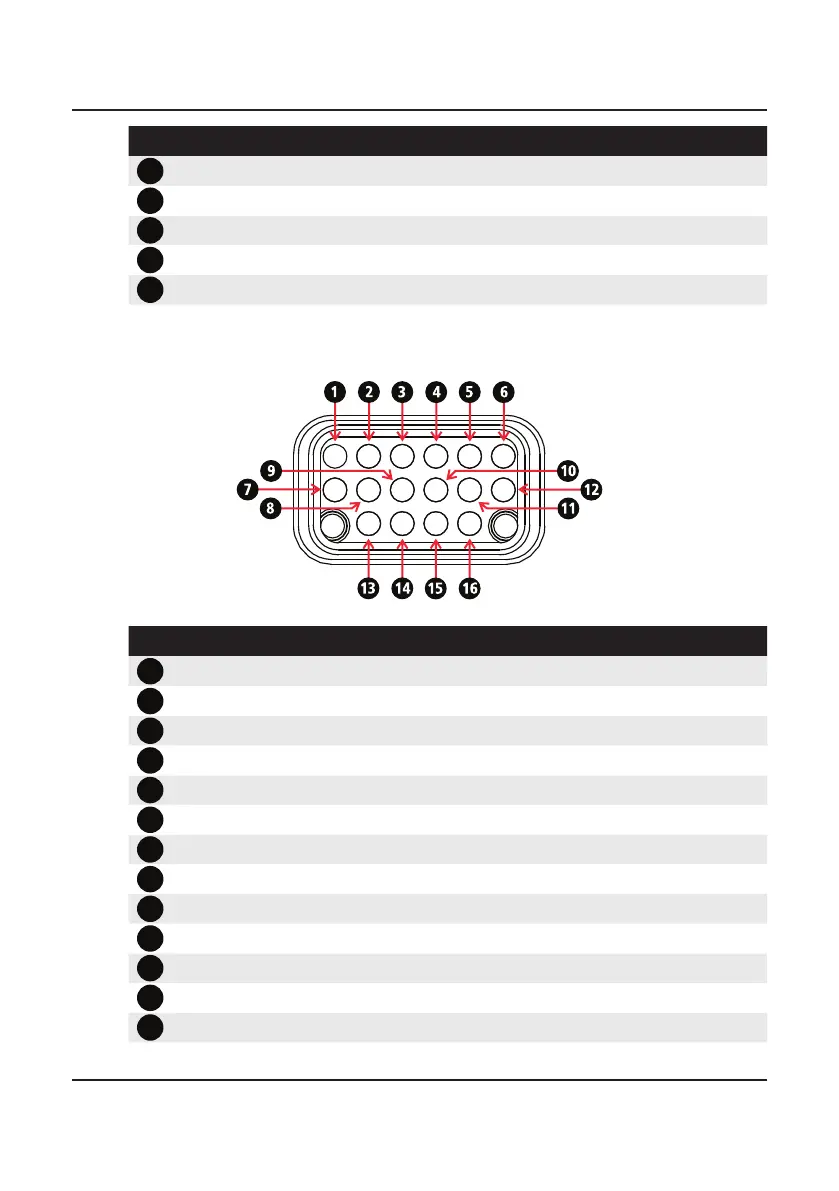

2. Control Handset Cable Connector
PIN Signal
1
Handset Voltage
2
CAN Bus positive
3
4050 Detect voltage
4
Handset GPS 1 Pulse per Second
5
Handset Audio Positive
6
Ground
7
CAN Bus Negative
8
Speaker Out Negative
9
Reserved
10
Reserved
11
Speaker Out Negative
12
Handset Audio Negative
13
Ethernet TX Data positive
