Basler A202k User Manual

Camera Interface
BASLER A202k 2-13
DRAFT
2.5.5 Integrate Enabled Signal
An RS-644 LVDS output signal called Integrate Enabled (IntEn) is available on A202k cameras.
The integrate enabled signal indicates that an exposure is taking place. The signal will go high
when each exposure begins and go low when the exposure ends. As shown in the schematic on
page 2-5, the IntEn signal is available on pins 24 and 11 of the
A202k.
The integrate enabled signal can not be easily accessed if a standard Camera Link cable is used
between the camera and the frame grabber. However, a Camera Link cable which allows easy
access to this signal is available from Basler as a stock item (part # 100013041 for a 3 meter cable
and part # 100013042 for a 5 meter cable).
In the Basler cable, the wires which carry the integrate enabled signal from the camera are not
attached to the pins in the frame grabber end of the cable. Instead, the wires are unterminated
and are folded back inside of the connector housing on the frame grabber end (see Figure 2-6
below). If you open the connector housing, you can locate the wires and use them to access the
integrate enabled signal. As shown below, a blue wire carries the positive signal and a gray wire
carries the negative signal. The wires require a 100 Ohm termination resistor.

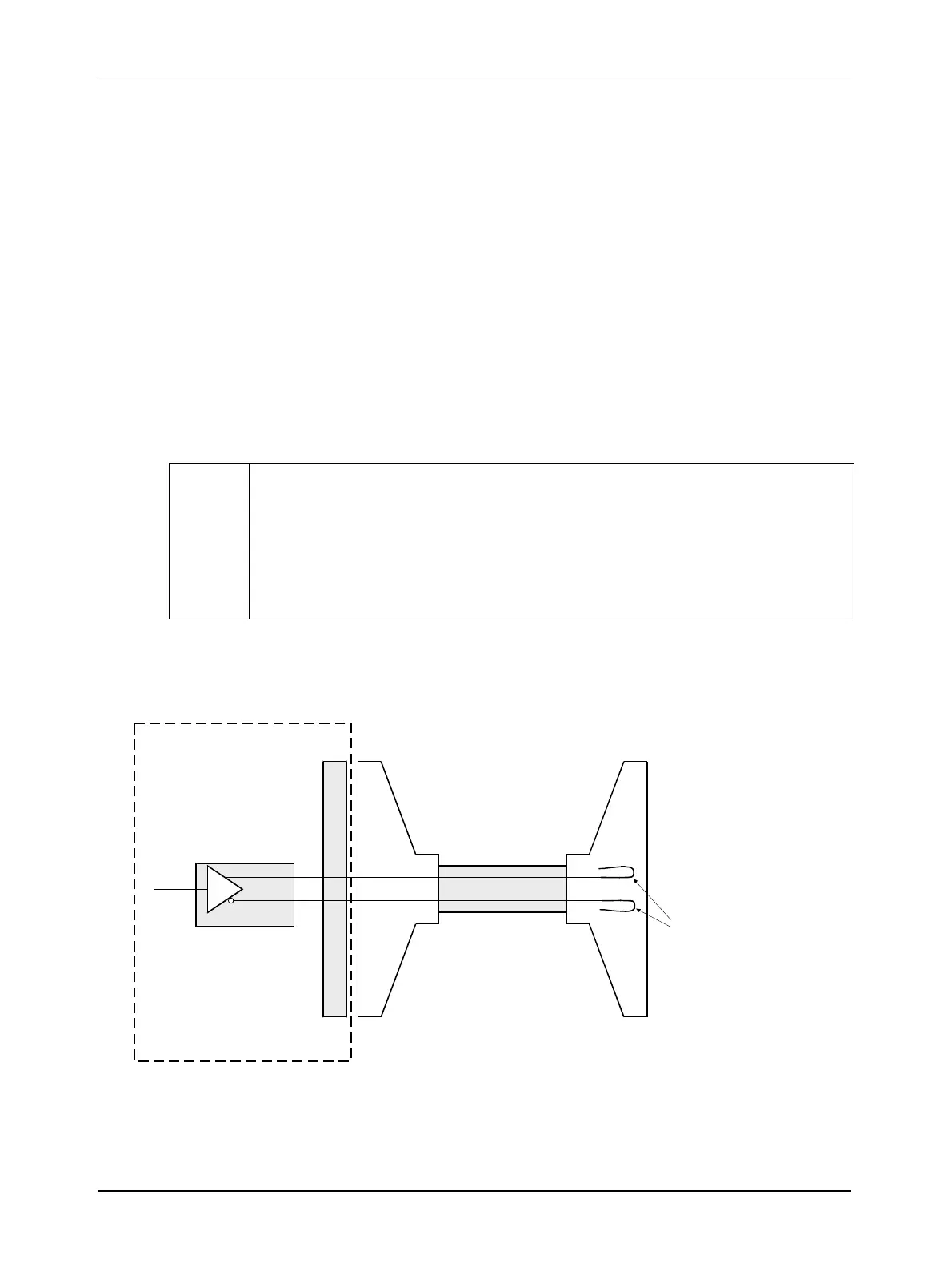

Figure 2-6: Basler Camera Link Cable

If you use a standard Camera Link cable to connect the A202k to a Camera Link
frame grabber, the RS-644 LVDS transmitter for the integrate enabled signal will be
connected to an RS-644 LVDS transmitter in the frame grabber as shown in the
schematic on page 2-5. Because the transmitter in the camera is a low current
source and because the opposing transmitter in the frame grabber is typically short
circuit protected, this configuration will not cause damage to the camera or the frame
grabber.
24
11
IntEn
DS90LV047A Tmtr.
Basler Camera
Link Cable
A202
k
Wires are unterminated
and folded back inside of
the connector housing
on the frame grabber end.
CC3+
CC3-
Blue
Gray
Blue
Gray
