Basler A202k User Manual

Operation and Features
3-24 BASLER A202k
DRAFT
3.7 Area of Interest (AOI)
The area of interest (AOI) feature allows you to specify a portion of the CCD array and during
operation, only the pixel information from the lines included in the AOI is transferred out of the
camera.
The size of the area of interest is defined by declaring a starting column, a width in columns, a
starting line and a height in lines. For example, if you specify the starting column as 11, the width
in columns as 16, the starting line as 5 and the height in lines as 10, the AOI will be as shown in
Figure 3-12.

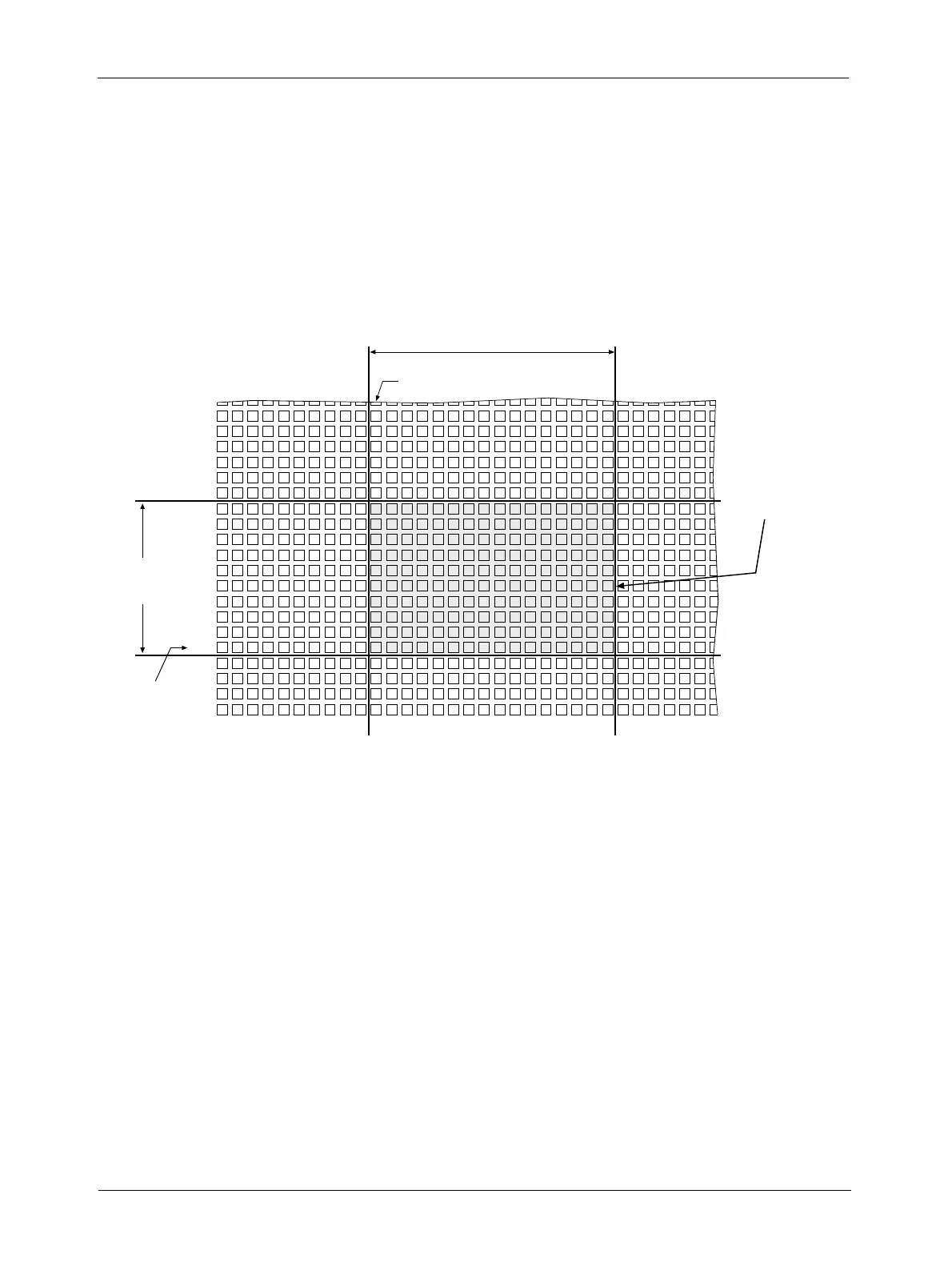

Figure 3-12: Area of Interest
You can set the area of interest using either the Camera Configuration Tool (see Section 4.1 and
the configuration tool’s on-line help file) or binary commands (see Section 4.2). With the Camera
Configuration Tool, you use the Features Tab to set the area of interest. With binary commands,
you use the Area of Interest Starting Column, Area of Interest Width in Columns, Area of Interest
Starting Line, and Area of Interest Height in Lines commands.
Starting Column
Width in Columns
12
Line 1
34567891011 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32Column
Line 2
Line 3
Line 4
Line 5
Line 6
Line 7
Line 8
Line 9
Line 10
Line 11
Line 12
Line 13
Line 14
Line 15
Line 16
Line 17
Line 18
Line 19
Line 20
Height
in
Lines
Starting
Line
Area
of
Interest
