Mechanical Considerations
5-4 BASLER A202k
DRAFT
5.4 Positioning Accuracy of the Sensor Chip
Positioning accuracy of the sensor chip in the horizontal and vertical direction is ± 0.4 mm.
Rotational positioning accuracy is as shown in Figure 5-4. Reference position is the center of the
camera housing.
Since the translatory and rotational positioning tolerance depend on each other, the worse case
of maximum rotational and horizontal/vertical mis-positioning can not occur at the same time.

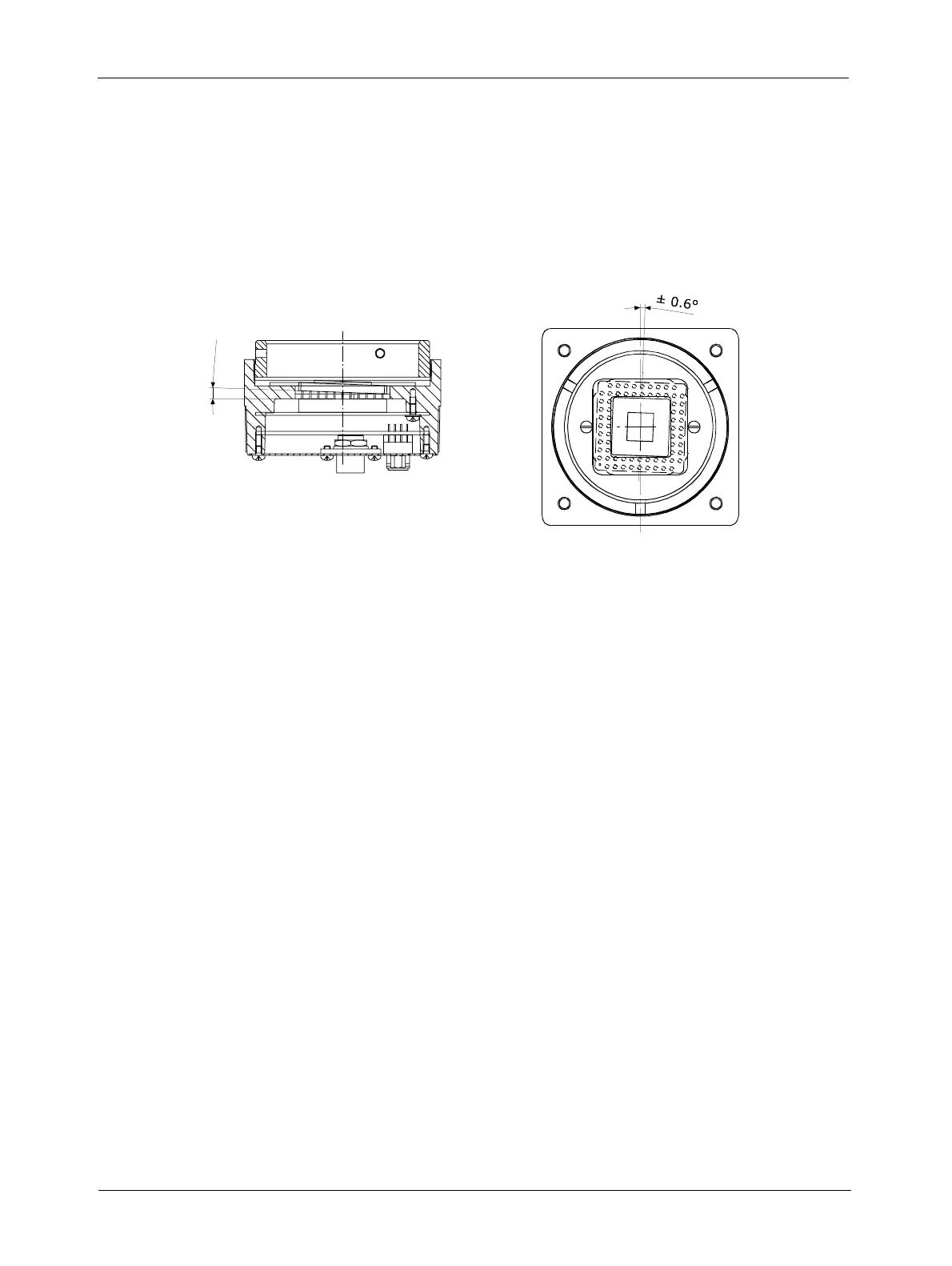

Figure 5-4: Rotational Positioning Accuracy
Drawings are not to scale
± 0.1°
