Oceanus
Page 4 2nd Edition, Rev. 0 Chg. 14
1.4 Descriptions
1.4.1 Compressor Unit Purpose
The Oceanus-E1, Oceanus-E3, and Oceanus-G are designed to compress air for breathing as required in
diving applications. The maximum allowable operating pressure (adjusted pressure on the final safety
valve) is 5,000 psi (350 bar).
1.4.2 Design
The compressor unit consists of the following major assemblies which are shown in Figure 1-2, Figure
1-4, Figure 1-5 and Figure 1-6.
• Compressor Block
•Drive
• Filter System
• Filling Assembly
• Base Plate and Frame

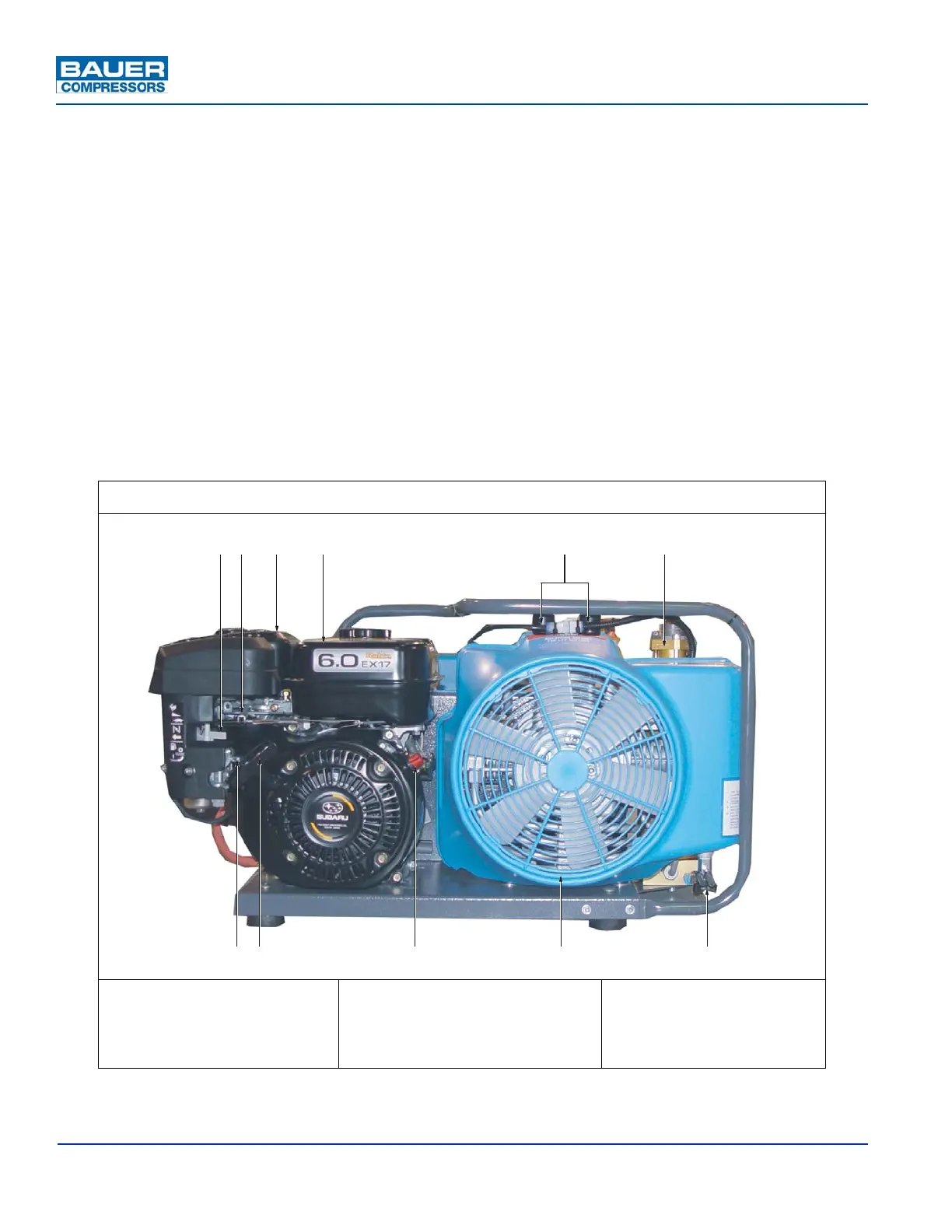

Figure 1-2 Oceanus with Gasoline Engine (typical)
1. Engine Choke Lever
2. Engine Throttle
3. Engine Air Filter
4. Gas Tank
5. Fill Hose Rest
6. Final Pressure Valve
7. Engine Fuel Valve
8. Recoil Starter Cord
9. Engine Off / On Switch
10. Cooling Fan
11. Manual Condensate
Drain Valve
12 3 4 5 6
7
8
9
10
11
