5.2.2 CO Indicator (optional)
5.2.2.1 Visual CO & Moisture Indicator
Under normal conditions the element in the moisture indicator is blue and changes to pink with elevated
levels of moisture (40 - 60% humidity). Carbon Monoxide is present if the idicator turns tan to dark
brown.

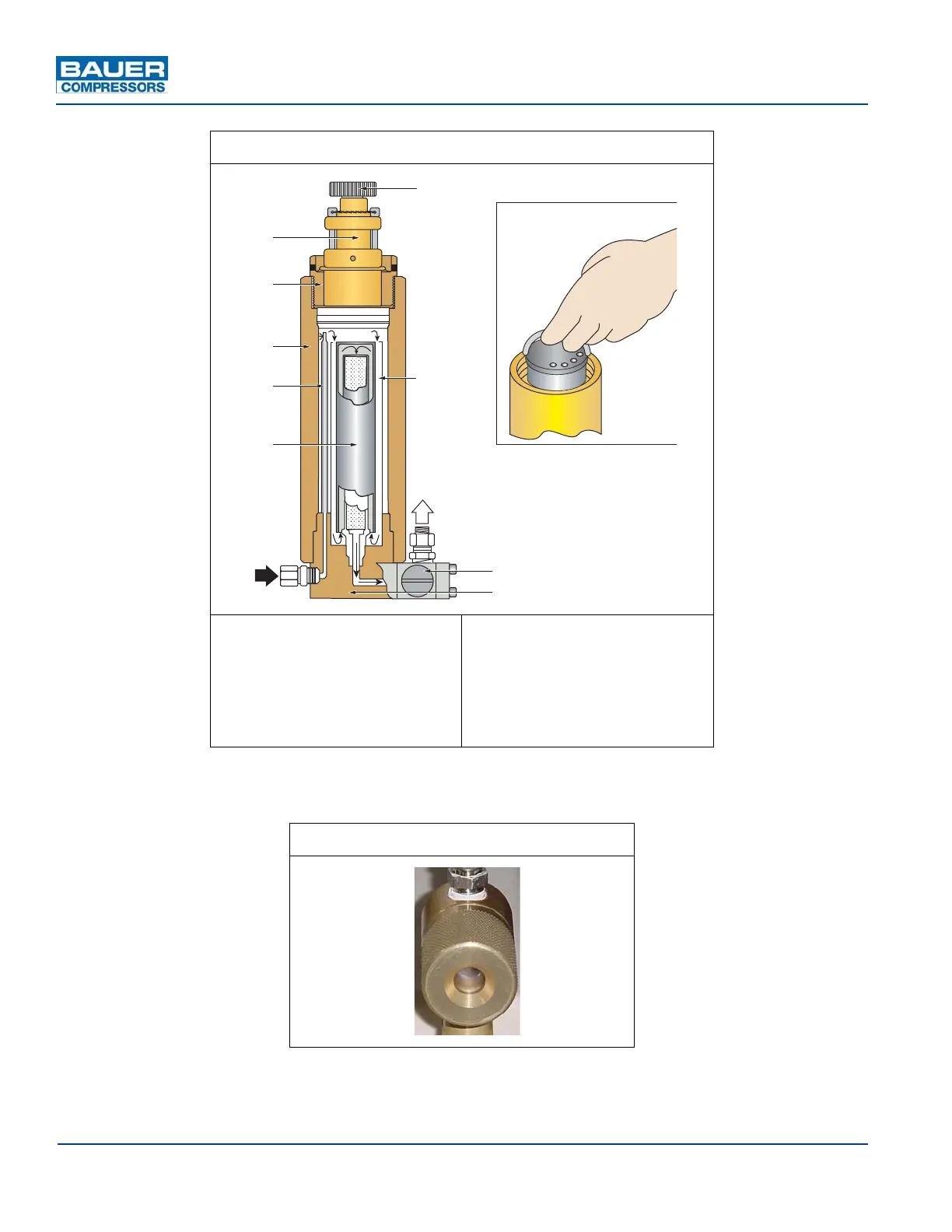

Figure 5-6 P0 Purification System Cross Section
1. Inlet
2. Cartridge
3. Jet Pipe
4. Housing
5. Plug
6. Final Pressure Safety Valve
7. Adjustment Knob
8. Separator Chamber
9. Outlet
10. Pressure Maintaining Valve
11. Bottom
12. Cartridge Removal Method
Figure 5-7 CO & Moisture Indicator
1
11
2
3
4
5
6
7
8
9
10
Cartridge Removal
