2.3.4.1 Connecting the Fill Hose to the Storage Bottle
1. Close both the Fill Valve (6) and the Bottle Valve (3).
2. Connect the compressor fill hose assembly to the Air Storage Bottle (1) utilizing the fill yoke.
Secure the fill yoke in place and seal the connection by tightening the Fill Yoke Knob (2).
2.3.4.2 To Fill the Air Storage Bottle
1. Close Bleed Valve (4)
2. Open Fill Valve. (6)
3. Open Bottle Valve. (3)
4. Bottle will begin filling.
5. During the filling process, monitor bottle pressure on Fill Valve Gauge (5) and drain condensate at
the compressor.
2.3.4.3 Removing the Bottle
1. First close the bottle valve. (3)
2. Close the fill valve. (6)
3. Open Bleed Valve (4)
4. Remove fill yoke and store compressed air bottle (7).

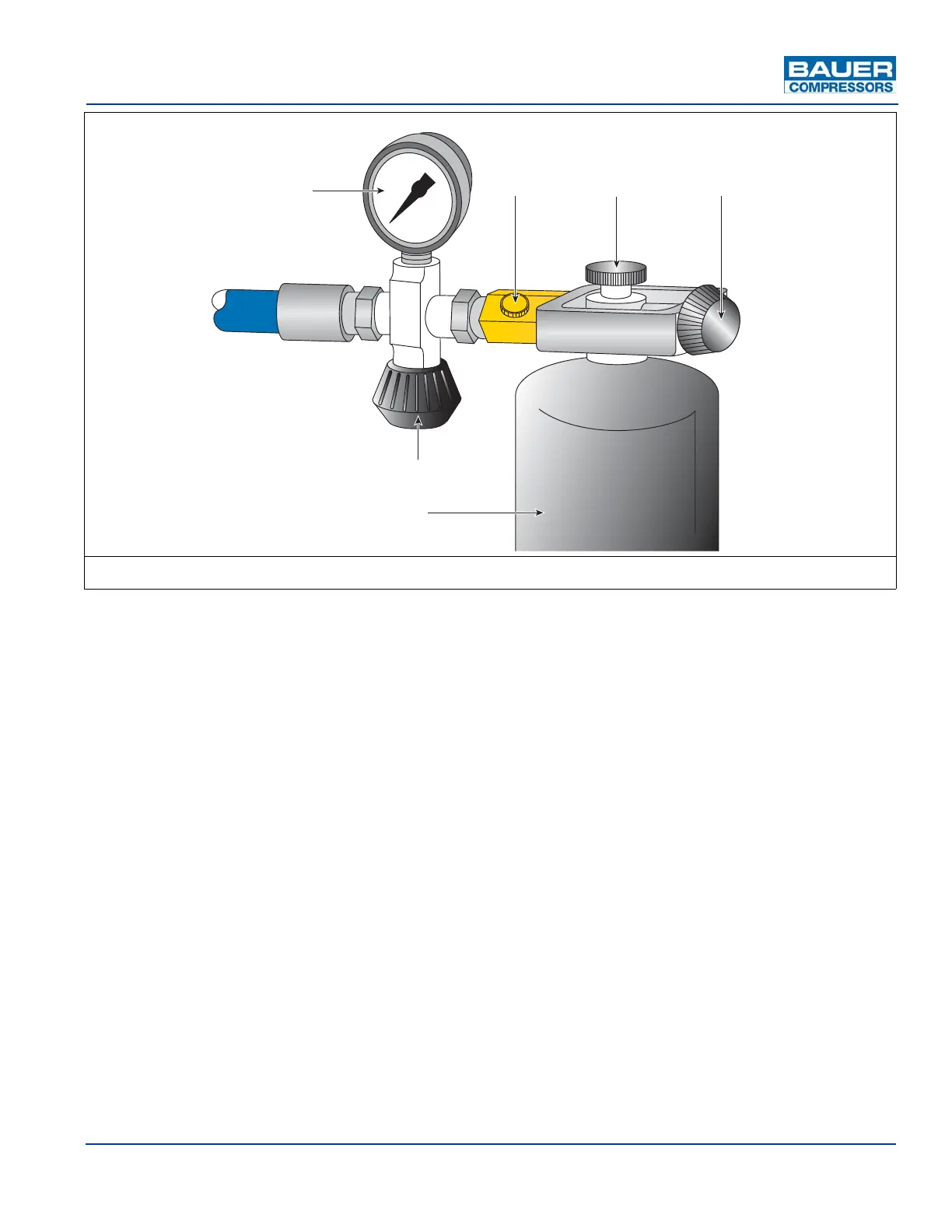

Figure 2-1 Air Storage Bottle Valve Operating Sequence
1
23
4
5
6
