Bauer Compressors Oceanus - Figure 3-18 Oceanus -E3 Electric Motor

Oceanus
Page 44 2nd Edition, Rev. 0 Chg. 14
Item Qty Part No. Description Notes
1 1 MTR-0222 Motor, Electric 5 Hp, 208 - 460 VAC, 60 Hz, 3 phase
2 1 SHE-0246 V-Belt Sheave
3 1 BUS-0031 Sheave Bushing
4 1 BET-0172 V-Belt
5 4 NUT-0119 Self Locking Hex Nut
6 4 N2460 Washer
7 4 WAS-0023 Washer
8 4 N17082 Hex Head Cap Screw
9 2 078019 Motor Brace

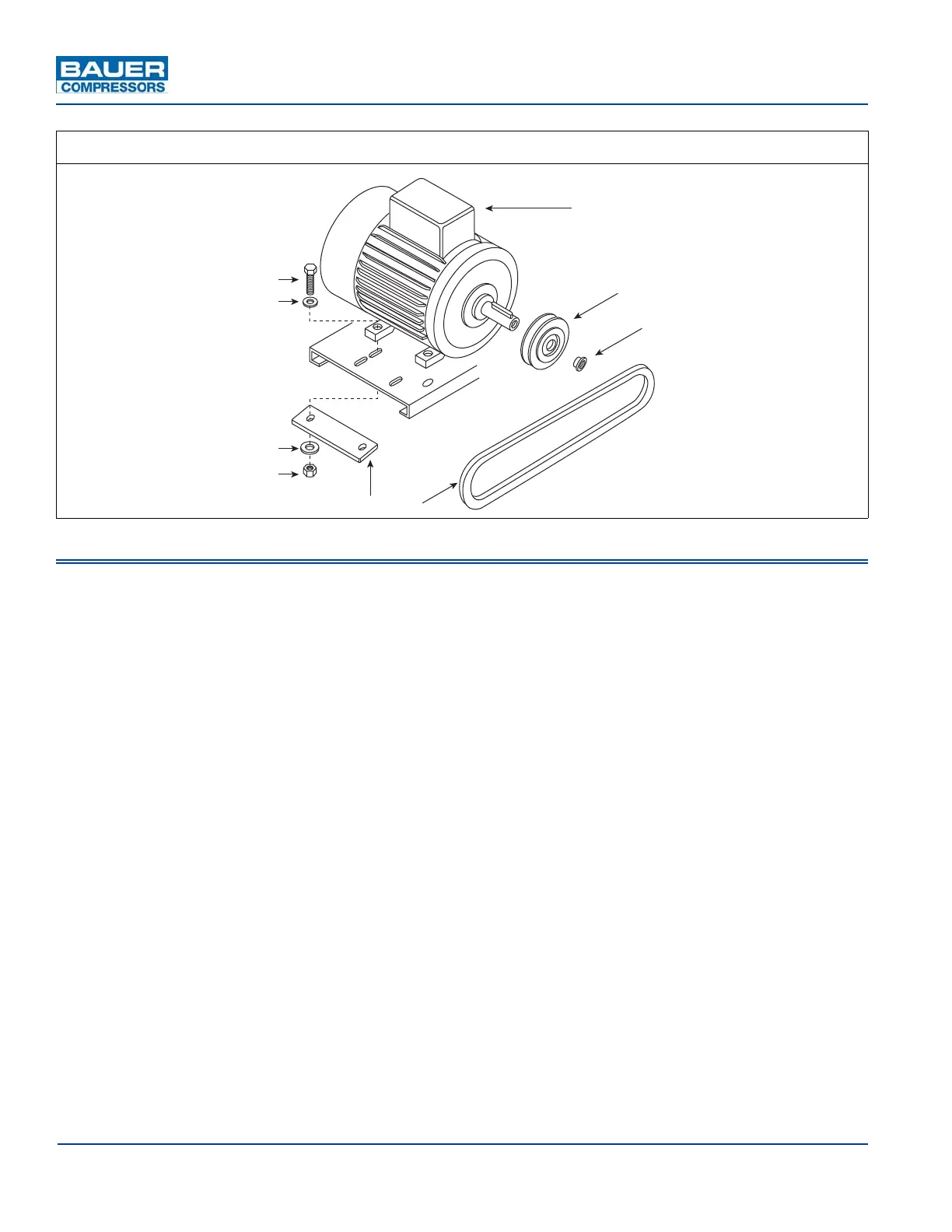

Figure 3-18 Oceanus -E3 Electric Motor
1
2
3
4
5
9
6
7
8
