Bauer Compressors Oceanus - Figure 3-17 Oceanus -E1 Electric Motor

MNL-0295
August 27, 2009 Page 43
Item Qty Part No. Description Notes
1 1 MTR-0221 Motor, Electric 5 Hp, 208-230 VAC, 60Hz, 1 phase
2 1 SHE-0246 V-Belt Sheave
3 1 BUS-0031 Sheave Bushing
4 1 BET-0172 V-Belt
5 4 NUT-0119 Self Locking Hex Nut
6 4 N2460 Washer
7 4 WAS-0023 Washer
8 4 N17082 Hex Head Cap Screw
9 2 078019 Motor Brace

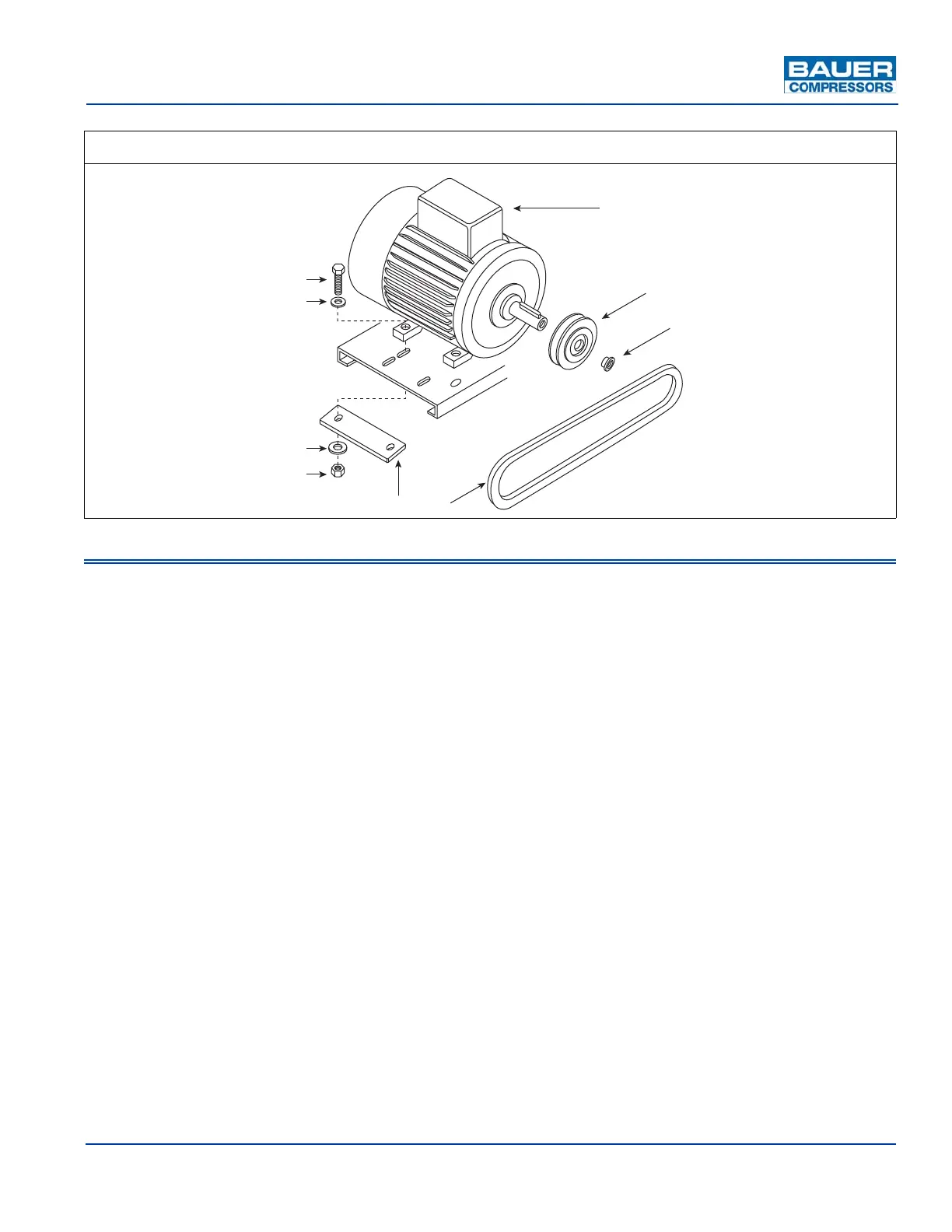

Figure 3-17 Oceanus -E1 Electric Motor
1
2
3
4
5
9
6
7
8
