Page 68 2nd Edition, Rev. 0 Chg. 14
6.4.3 V-belt Tension Adjustment
1. Slightly loosen the bolts holding the prime mover onto the base plate (1).
1. Adjust motor position until the V-belt tension is correct (2).
2. Tighten the prime mover mounting bolts.
3. Operate the unit for approximately five minutes. Stop the prime mover, check V-belt tension and
readjust if necessary.
4. After the V-belt tension is correct and the prime mover mounting bolts are tight, check to verify that
both pulleys are aligned. This is necessary to avoid excessive wear on the V-belt and pulleys.
5. Hold a straight edge against the compressor and prime mover pulleys as shown in Figure 6-4. The
straight edge must touch the pulleys at the four points indicated by the arrows. If it does not, adjust
the prime mover position until it does.
6.4.4 Electric Motor Maintenance
The electric motors require no maintenance except for external cleaning.
6.5 Electrical System
6.5.1 Description
The electrical equipment for the JRII-E1 or JRII-E3 consists of the following.
• Electric motor
• Electrical wiring with appropriate switches and protective devices is provided by the customer.
6.5.2 Drive Motor
The -E1 compressor unit is driven by a 3 hp, 230 Volt, single phase, 60 Hz electric motor.
The -E3 compressor unit is driven by a 3 hp, 208-460 Volt, three phase, 60 Hz electric motor.
For the safety of the operating personnel all voltage carrying parts have protective covers.

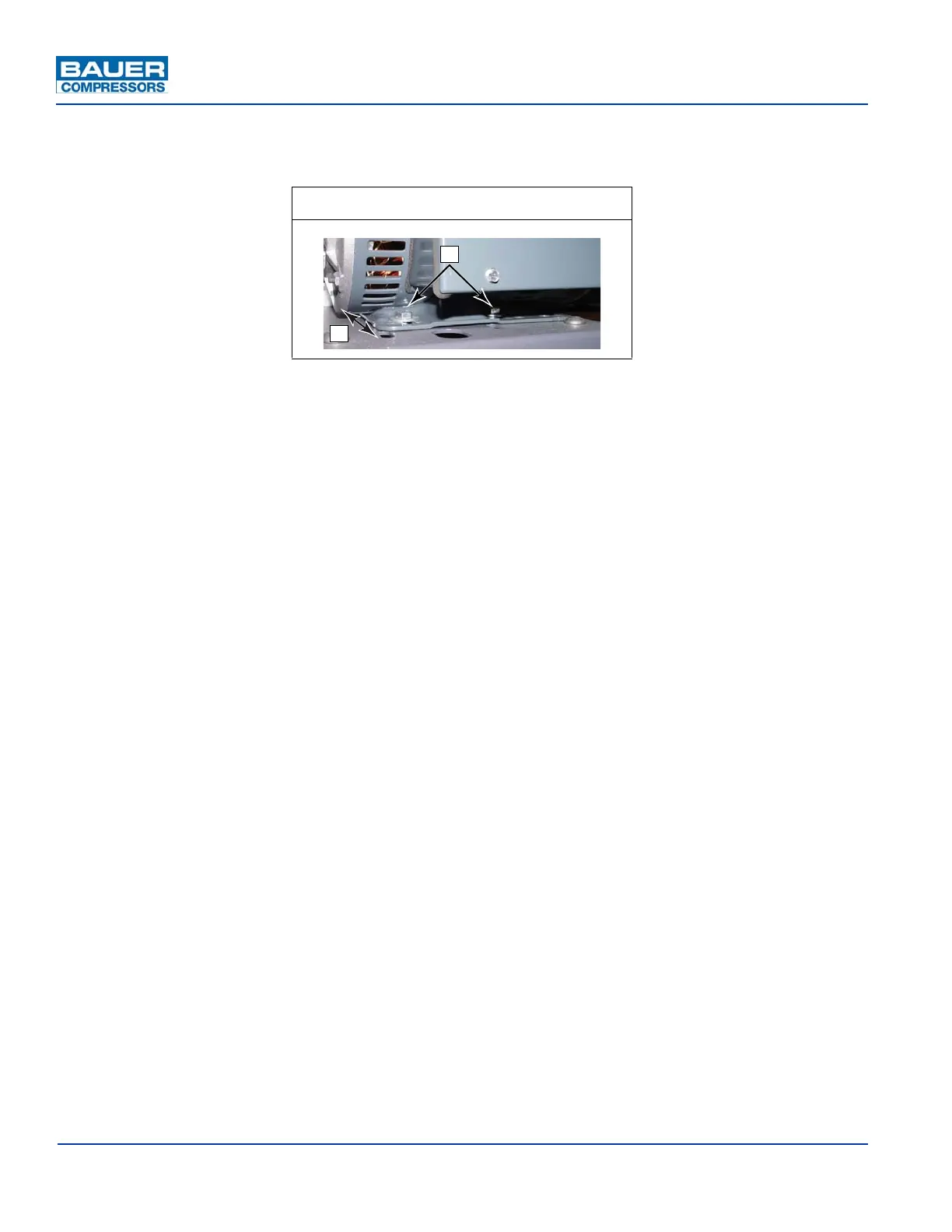

Figure 6-5 Electric Motor Adjustment
