Bauer Compressors Oceanus - Figure 3-11 Pistons and Cylinders

Oceanus
Page 32 2nd Edition, Rev. 0 Chg. 14
Item Qty Part No. Description Notes
1 11 N1042 Hex Nut, Self Locking
2 12 N102 Flat Washer
3 4 N4615 Stud
4 1 61354 Cylinder, 2nd Stage
5 1 N3157 O-ring
6 1 069920 2nd Stage Piston Assembly
7 4 N15294 Circlip
8 1 N15816 Piston Ring Set
9 1 069927 3rd Stage Piston Assembly
10 1 N4868 O-ring
11 1 67096 Cylinder, 3rd Stage
12 6 N15691 Stud
13 1 075310 Piston and Sleeve Assembly
14 1 N23810 Piston Ring Set
15 1 N2507 O-ring
16 2 N1033 Circlip

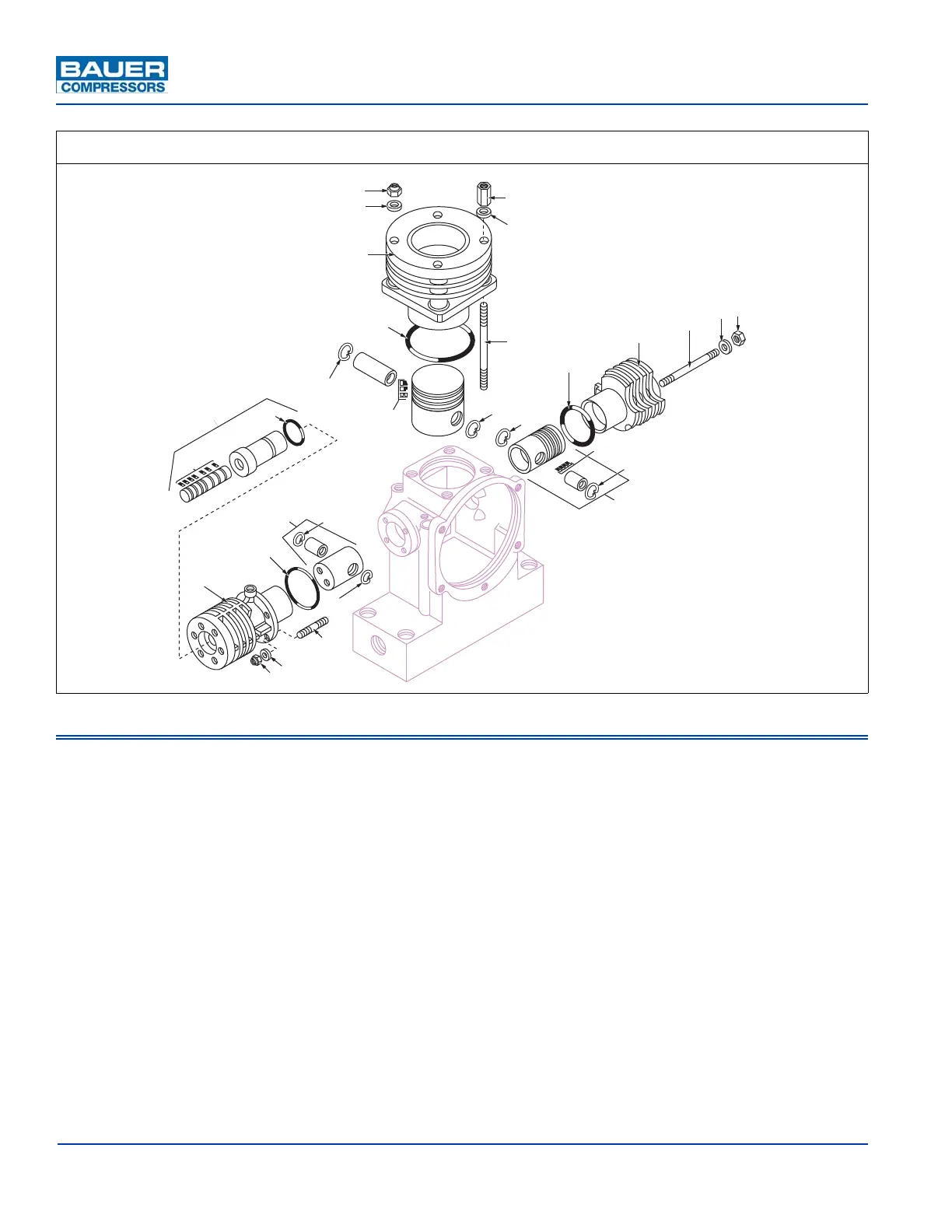

Figure 3-11 Pistons and Cylinders
1
2
3
4
5
6
7
7
8
9
10
21
7
7
10
2
1
12
11
13
17
16
14
15
1
2
2
16
18
20
19
