Oceanus
Page 40 2nd Edition, Rev. 0 Chg. 14
Item Qty Part No. Description Notes
1 1 85148 Fanwheel Shroud Cyan
1 79398 Fanwheel Shroud Turquoise
2 2 78653 Bushing
3 2 N25801 Allen Screw
4 1 80454 Handle
5 6 N15769 Allen Screw
6 4 N15761 Washer
7 4 N24916 Button Head Allen Screw
8 4 N25609 Vibration Isolator
9 2 N15757 Washer
10 2 N17511 Hex nut
11 1 80951 Frame
12 1 N16508 Allen Screw
13 1 N15801 Washer
14 2 N25343 Washer
15 4 77248 Spacer

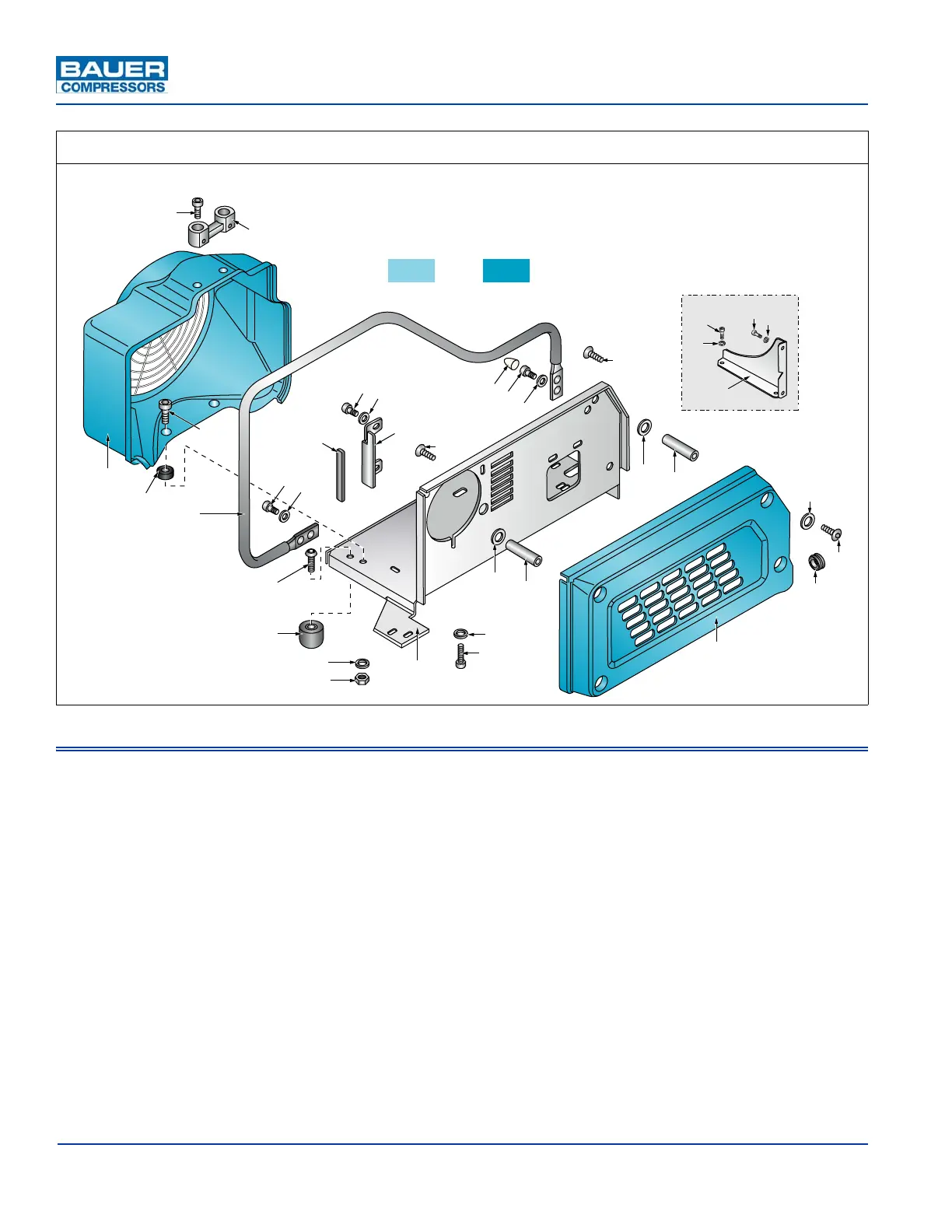

Figure 3-15 Frame with Accessories
1
2
3
4
5
5
6
6
7
8
9
10
11
5
12
13
14
15
14
15
17
18
19
20
20
20
21
5
22
23
24
25
6
6
5
5
Turquoise
Cyan
