Baumuller b maXX 5000 Application Handbook

Setting the pressure sensor inputs
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02 Baumüller Nürnberg GmbH
48
of 76
4.4
h Check the scaling of the „Pressure actual value“.

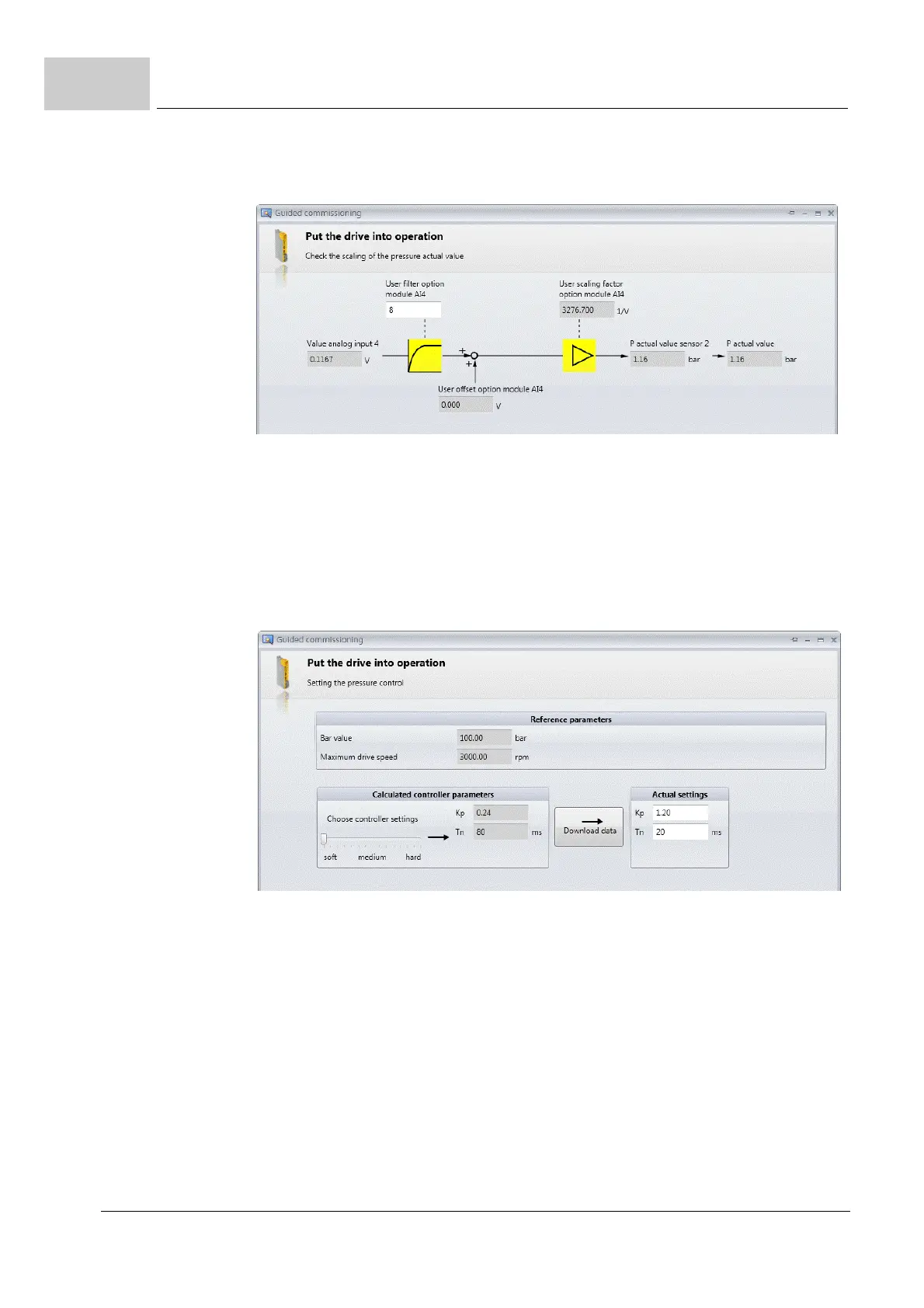

Figure 53: Guided commissioning: Check scaling pressure actual value
h Click on „Continue“
h Set the pressure control parameters between soft and hard for the Kp and Tn values.
h Do
wnload the data to the controller.
Figure 54: Guided commissioning: Setting the pressure control
h Click on „Continue“

Baumuller b maXX 5000 Specifications

General

Brand	Baumuller
Model	b maXX 5000
Category	Servo Drives
Language	English
