Guided Commissioning
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02
49
of 76
4
h Only if necessary, activate the pump protection and set the pump protection values.
If the „N/Q actual value“ is greater than the threshold value AND if the „P actual value“
is smaller than the threshold value, an error will be generated after the set „recognition
time“ has elapsed.

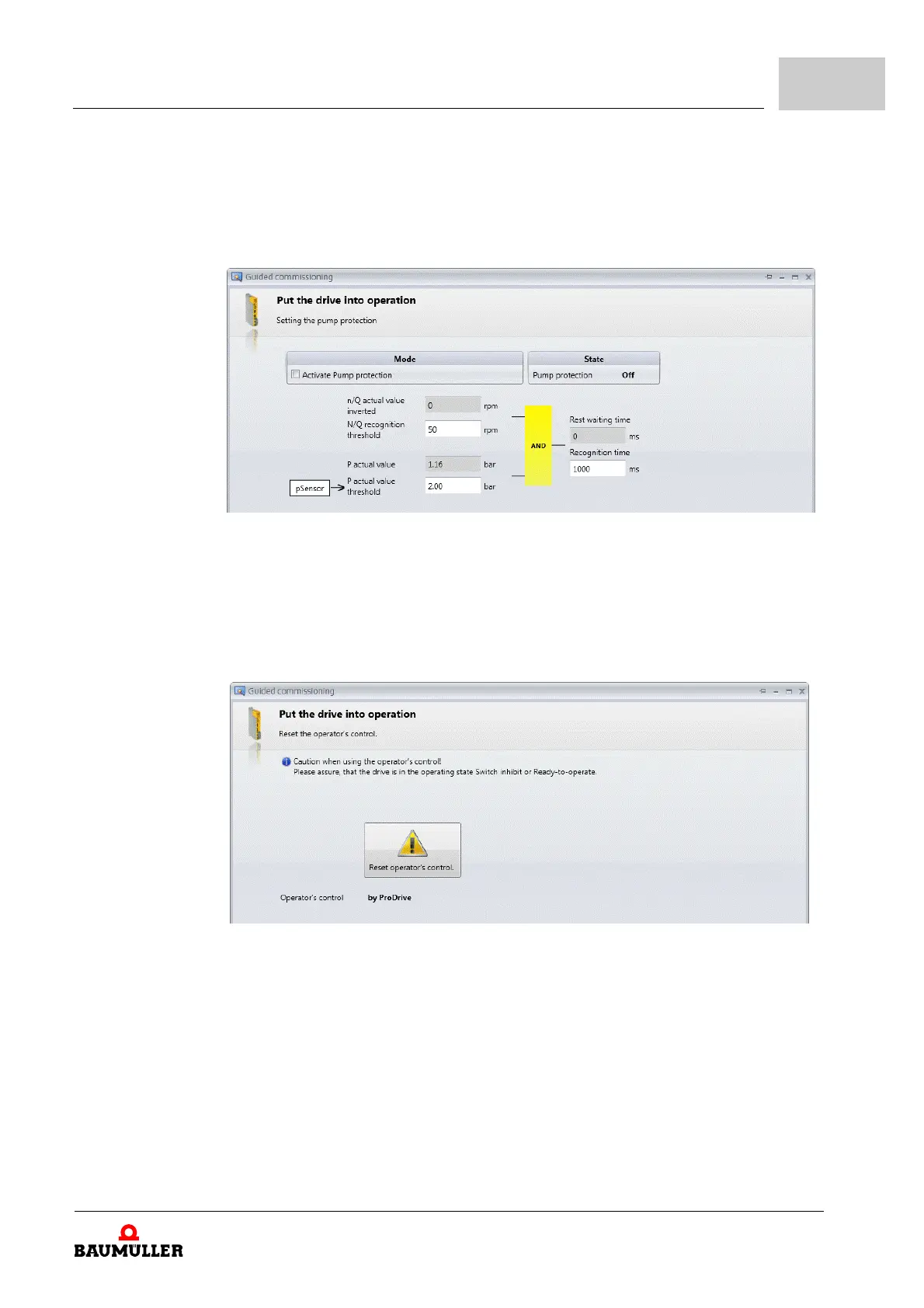

Figure 55: Guided commissioning: Setting pump protection
h Click on „Continue“
h Click on reset operator's control.
Figure 56: Guided commissioning: Operator control
h Click on „Continue“
