Instruction Handbook b maXX (BM4-F-)ENC-XX (Encoder module)
Document No.: 5.01042.12
51
of 102
7

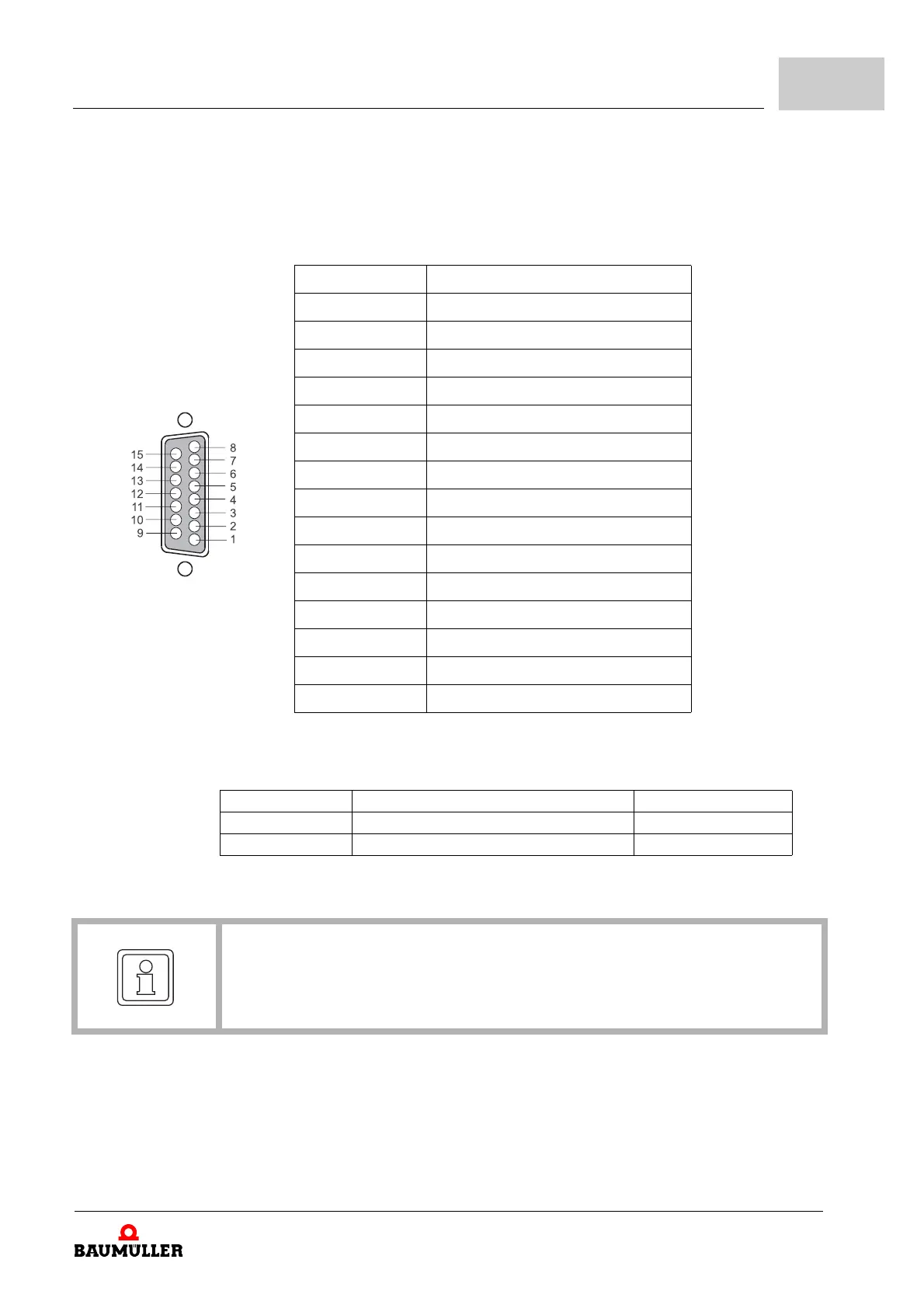

Pin assignment (BM4-F-)ENC-03
m for 5V square wave incremental encoder
1)
Requirements to the temperature sensor:
Pin assignment Pin No. Definition
Female Sub-D 15-pin
1 GND encoder supply
2 + 5 V encoder supply
3 RS422 incremental encoder track +0
4 RS422 incremental encoder track -0
5 RS422 incremental encoder track +B
6 reserved*
7 RS422 incremental encoder track -A
8 RS422 incremental encoder track +A
9 RS422 incremental encoder track -B
10 reserved*
11 reserved*
12 Sense + 5V encoder supply
13 Sense GND encoder supply
14 Temperature sensor +
15 Temperature sensor -
* do not connect
Type Additional requirements Insulation
KTY84 - SELV/PELV
NTC (MSKL) R = 1kΩ at T
protection
, I
max
< 2mA SELV/PELV
NOTE!
The connection cable is provided ready-for-use, see ZEncoder cable 12-wire– on
page 90. Assembly see ZConstruction guidance connection cable, 12-wire– on page
59.
