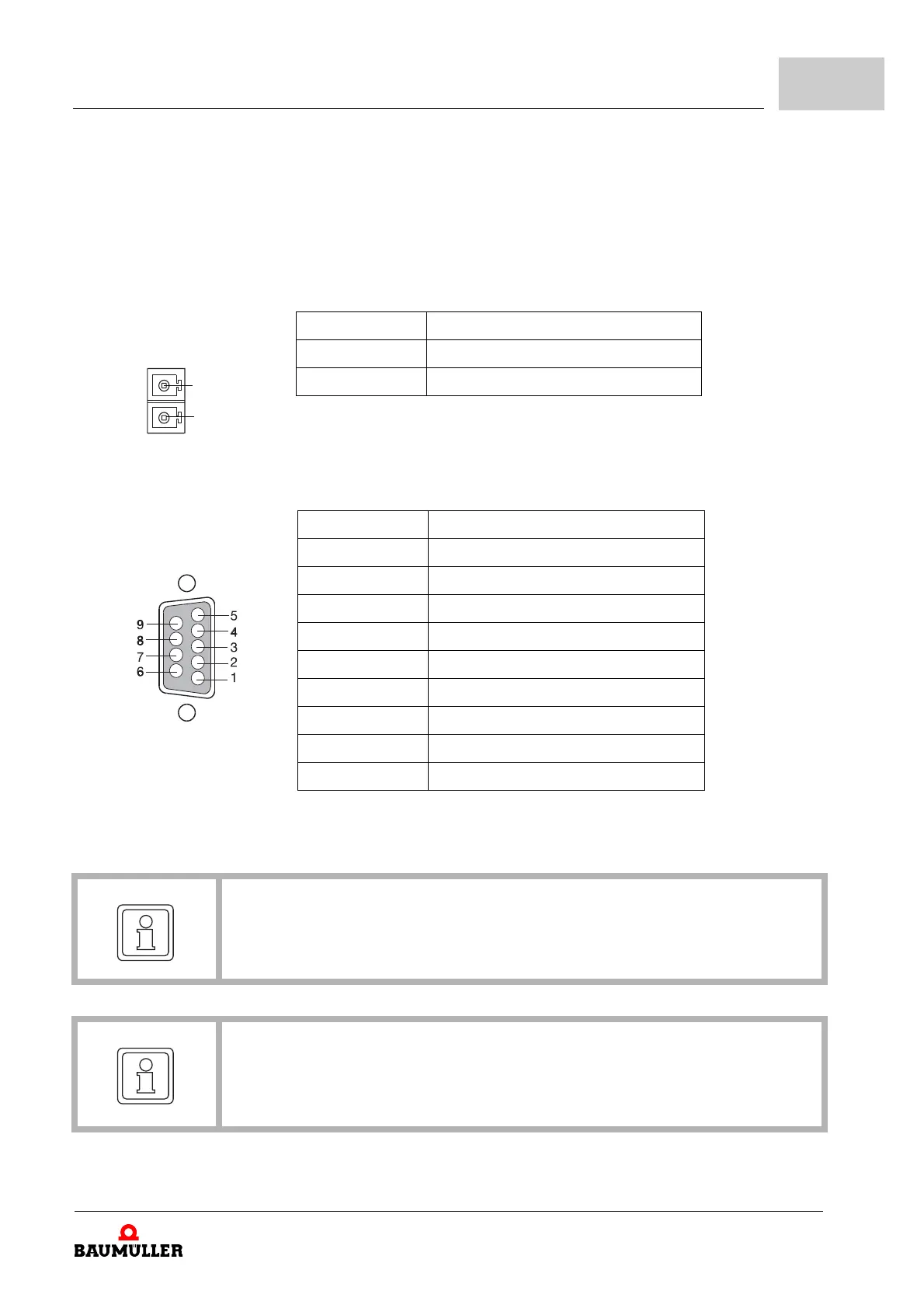

Pin assignment (BM4-F-)ENC-27
m for encoder with SSI interface and 24V encoder supply
Pin assignment
Encoder supply Pin No. Definition
X1 female connector 2-pin
1 +24 V DC
2 0 V
1
2
Pin assignment encoder Pin No. Definition
X2 female Sub-D 9-pin
1 Data -
2 Data +
3 reserved*
4 reserved*
5 reserved*
6 +24 V DC
7 0 V
8 Clock +
9 Clock -
* do not connect
NOTE
The availability of the 24V power supply is not checked and a broken wire is not de-
tected by the controller.
NOTE
The connection cable is not offered by Baumüller Nürnberg GmbH and must be made
by the user, see
ZConstruction guidance connection cable for (BM4-F-)ENC-27– on
page 63.
