ADVANCED FUNCTIONS
31
30
START
STOP
UF-rate
UF-volume
Mean rate
4h
Time

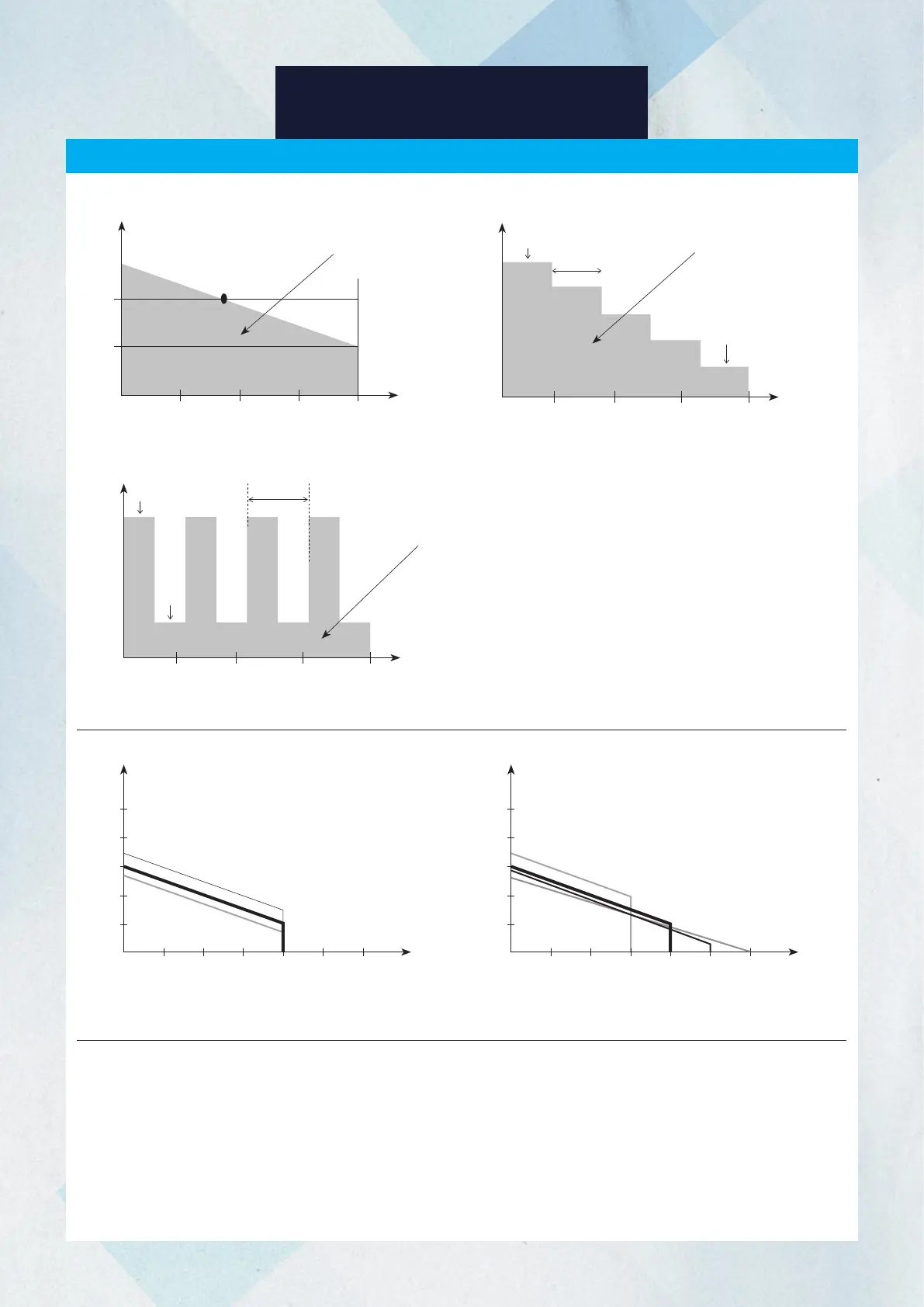

Decreasing linear mode for UF rate profiling
Time
UF-rate
UF-volume
4h
Start UF-rate
Stop
UF-
rate
Interval mode for UF rate profiling
Time
UF-rate
UF-volume
4h
Start UF-rate
Stop UF-rate
Decreasing step mode for UF rate profiling
UF rate in linear mode when UF goal is changed
Time in hours
2.5
2.0
1.5
1.0
0.5
1 2 3 4 5 6
UF rate in I/h
UF rate in linear mode when treatment time
is changed
Time in hours
2.5
2.0
1.5
1.0
0.5
1 2 3 4 5 6
UF rate in I/h
Step
Interval
Profiling (cont.)
