8 Display and operation -
Graphical user interface
Configuration pH
Settings for pH measurement and control
Configuration mV (redox)
Settings for mV (redox) measurement and control
Configuration
Cl (chlorine) / Br (bromine)
Settings for chlorine/bromine
measurement and control
Configuration
O2 (BayroSoft)
Settings for O2 (BayroSoft) automatic dosage
Configuration Temperature
Settings for temperature measurement
Calibration pH
pH measurement base calibration
Calibration mV (redox)
mV (redox) measurement base calibration
Calibration
Cl (chlorine) / Br (bromine)
Chlorine/bromine
measurement base calibration
Calibration Temperature
Temperature measurement base calibration
Manual Dosing pH
Manually controlled addition of pH minus (or pH plus)
Manual Dosing mV (redox)
Manually controlled addition of chlorine/bromine
Manual Dosing Cl (chlorine) / Br (bromine)
Manually controlled addition of chlorine/bromine
Manual Dosing
O2 (BayroSoft)
Manually controlled addition of O2 (BayroSoft)
Device Ssettings
• Basic device settings
• Menu language
• individualisation of user
interface
• Date & time
• Energy saving mode
Service Functions
Special functions (trained specialists only):
• Pool volume
•
Configuration of dosage pumps
• Set default parameters
• Software update
• First start-up
• Measurement settings
•
Configuration of device type
User Administration
Configuration of all user data, access data, and
access rights for controlling the device and for remote
access
Communication & I
nterfaces
•
Data import and export (measured value graph,
etc.)
•
Network (IP) configuration
• E-mail configuration
•
Configuration of all further interfaces
Add-on functions
Call-
up icon menus for supplemental functions
Graphical user interface
User Manual PoolManager
®
Settings for pH measurement and control
Settings for mV (redox) measurement and control
Cl (chlorine) / Br (bromine)
O2 (BayroSoft)
Settings for O2 (BayroSoft) automatic dosage
Settings for temperature measurement
pH measurement base calibration
mV (redox) measurement base calibration
Cl (chlorine) / Br (bromine)
measurement base calibration
Temperature measurement base calibration
Manually controlled addition of pH minus (or pH plus)
Manually controlled addition of chlorine/bromine
Manual Dosing Cl (chlorine) / Br (bromine)
Manually controlled addition of chlorine/bromine
O2 (BayroSoft)
Manually controlled addition of O2 (BayroSoft)
interface
Special functions (trained specialists only):
Configuration of dosage pumps
Configuration of device type
Configuration of all user data, access data, and
access rights for controlling the device and for remote
nterfaces
Data import and export (measured value graph,
Network (IP) configuration
Configuration of all further interfaces
up icon menus for supplemental functions

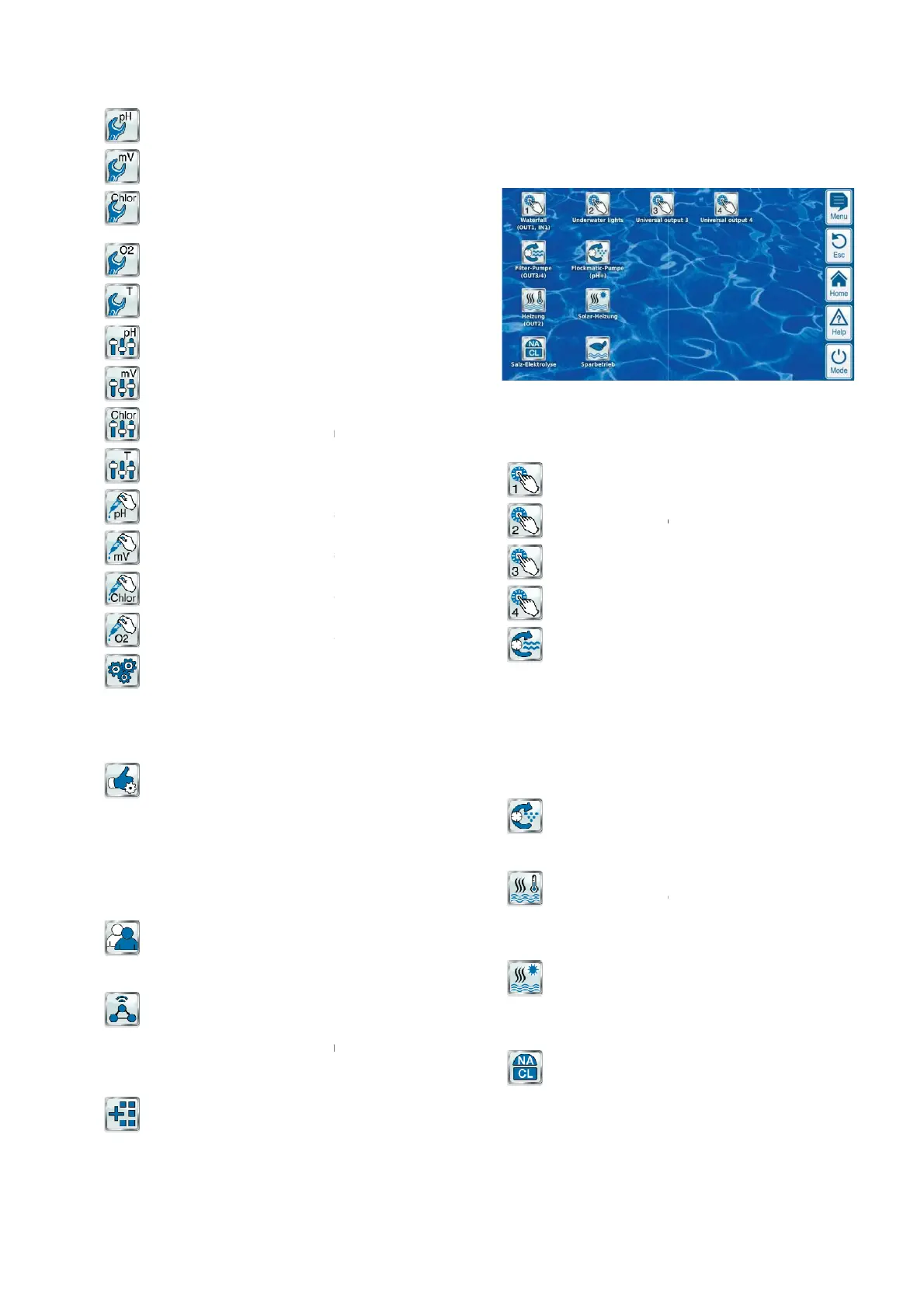

8.1.3 Add-on functions
menu (icon menu)
The Add-on
functions menu is called
facilitates access to supplemental
Each supplemental function is represented by an icon with
supplemental text.
S
witch output 1, 2, 3, 4
•
Flexible control of water attractions and other
applications:
•
Free name selection
•
Freely programmable timers
•
Potential link with other
•
Potential link with external
switches or
push button
Filter pump
Flexible control of the filter pump:
•
3 potential operating modes for variable filter pumps
(energy-
saving mode, normal filter mode, increased
output)
•
Freely programmable timers
•
Freely configurable dosage block
•
Potential link with external switches
•
Trigger via a relay switching outputs or power outlet
0/4-20mA (option)
Flockmatic pump
Flockmatic pump control:
•
Freely programmable timers
• Configurable
dosage
Heating
Flexible control of pool heating:
•
Potential link with external switch
•
Potential combination with solar heating (solar priority)
•
Potential block via one input
Solar heating
Flexible control of solar seating:
•
Potential link with external
•
Potential combination with pool heating (solar priority)
•
Potential block via an input
Salt electrolysis
Flexible control of a suitable salt electrolysis system:
•
Application of the current dosage output for chlorine in
a control pulse for a salt
•
Trigger via a relay switching output (pulse width) or
power outlet 0/4-
20mA (option)
15
menu (icon menu)
functions menu is called
up from the main menu. It
facilitates access to supplemental
functions.
Each supplemental function is represented by an icon with
witch output 1, 2, 3, 4
Flexible control of water attractions and other
Free name selection
Freely programmable timers
Potential link with other
inputs and outputs
Potential link with external
push button
s
Flexible control of the filter pump:
3 potential operating modes for variable filter pumps
saving mode, normal filter mode, increased
Freely programmable timers
Freely configurable dosage block
Potential link with external switches
Trigger via a relay switching outputs or power outlet
Flockmatic pump control:
Freely programmable timers
dosage
Flexible control of pool heating:
Potential link with external switch
Potential combination with solar heating (solar priority)
Potential block via one input
Flexible control of solar seating:
Potential link with external
switch
Potential combination with pool heating (solar priority)
Potential block via an input
Flexible control of a suitable salt electrolysis system:
Application of the current dosage output for chlorine in
a control pulse for a salt
electrolysis system
Trigger via a relay switching output (pulse width) or
20mA (option)
