6 Overview
6.1 PoolManager
®
PoolManager
®
is a highly advanced measuring, controlling, and dosing
system for swimming pools.
6.2 Maintenance program
You can select from among various maintenance programs in the
PoolManager
®
family for your swimming pool:
• PoolManager
®
Chlorine (Cl)
(measurement and control of redox potential)
• PoolManager
®
Bromine (Br)
(Measurement and control of redox potential)
• PoolManager
®
Oxygen (O2)
(Automatic dosing for BayroSoft)
• PoolManager
®
PRO
(Measurement and control of free chlorine/bromine)
6.3 Overview of features
6.3.1 Display and operation
Great emphasis was placed on easy-to-follow, simple, and intuitive
operation while developing PoolManager
®
. The screen's design is also
presented in a modern and attractive manner.
The following is an overview of the significant features and concepts in
the graphic interface.

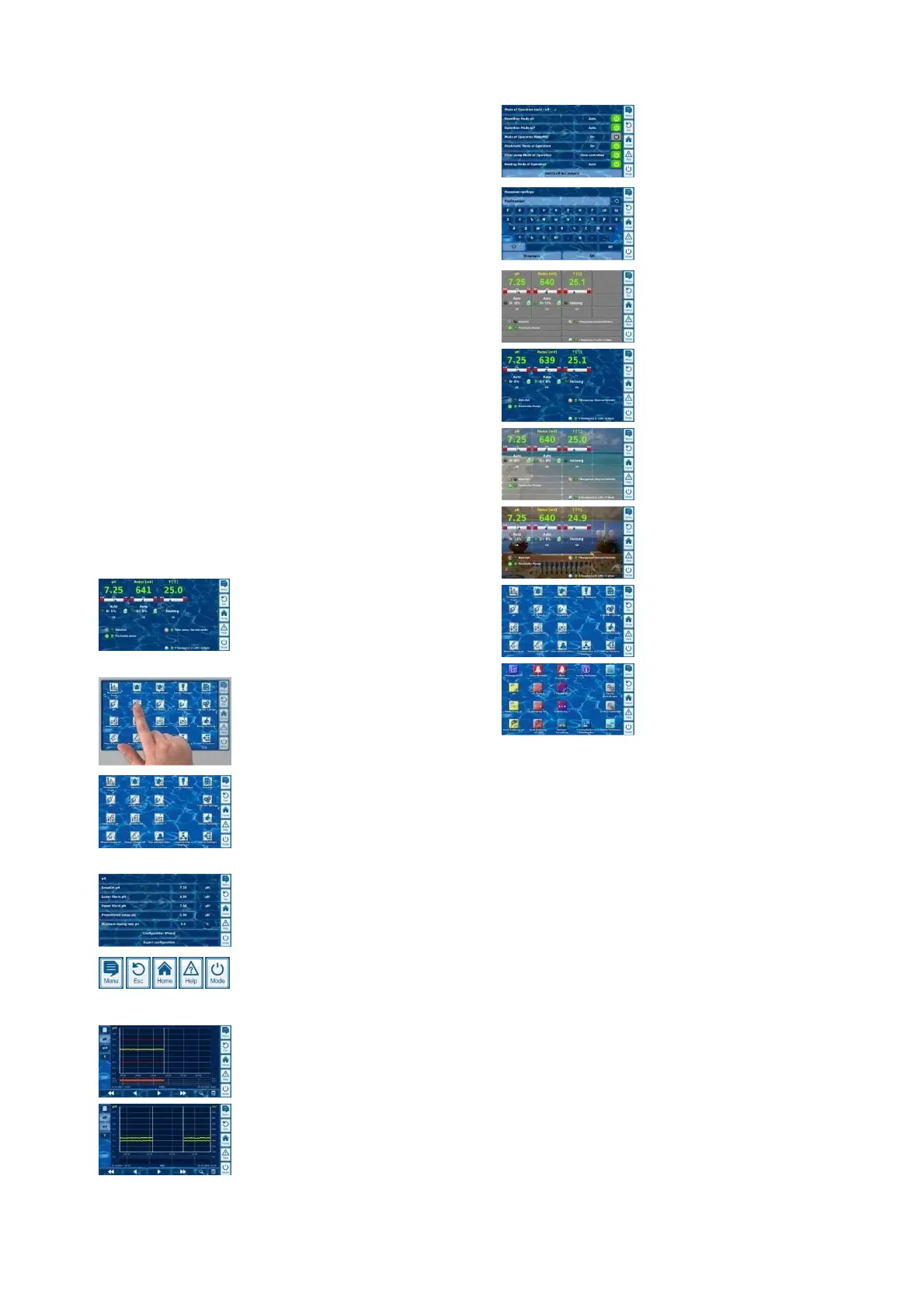

Large, high-
resolution 7" (18cm) colour TFT
graphics display
• Attractive 16:10 wide format
• Wide VGA resolution (800x400)
• 65536 colours
• Energy-saving LED backlight
Simple, intuitive touchscreen operation
• Robust touchscreen with supplemental full
design overlay
• Every touch is confirmed with a signal tone
Icon menu
• Up to 20 high quality icons
• Faster and easier access to all functions
and parameters
• Additional text for each icon in order to
ensure clarity
Standard menu
• Uniform set-up on all standard menus
• Uniform operation throughout
Hotkeys
• 5 hotkeys for menu navigation and for
important basic functions that are regularly
needed (e.g. help function)
Measurement graph
• Max record length of 1 year
• Max resolution 1 min
• Display of 1 or 2 measured variables
• Display of all important alarm statuses
Mode menu
• Called up using special hotkey
• Various system functions turned on and off
quickly and easily
Numerous menu languages available
• Extensive support for special international
characters and complete character sets
(e.g. Cyrillic and Greek)
Individualisation
• Selectable menu style
• Selectable background image
• Selectable button style
6.3.2 Measuring and control
• pH and redox measurement via single-rod measuring cells (glass
electrodes)
• chlorine/bromine measurement via open potentiostatic
measurement (3-electrode system)
• Temperature measurement in the measurement chamber
(PT1000 sensor)
• 2 additional temperature inputs for additional functions (PT1000,
KTY83, or KTY16-6 sensors)
• Proportional control for all control modules
• Minimum dosing output provides for additional interval portion, i.e.
for reliable attainment of the setpoint.
• All important control parameters are individually programmable for
each control module (setpoint, alarm threshold, proportional
range, dead zone (pH), cycle time, minimum dosage, dosage
monitoring)
• Continuous display of current dosage
• Implementation of all measured variables via high resolution 10-bit
A/D converter.
• 1- or 2-point calibration for pH
• 1-point calibration for mV(redox) and temperature
