14 Temperature measurement
14 Temperature measurement
14.1 Overview
PoolManager
®
has a total of three temperature measurement inputs. A
temperature sensor can be connected to each of them. The three
inputs are marked
Temp.1 (T1), Temp.2 (T2), and Temp.3 (T3).
The temperature sensor for the measurement water is connected to
T1 in the default setting.
14.2
Measurement water temperature
PoolManager
®
measures the temperature of the measurement water
flowing through the measurement chamber. To that end, a PT1000
temperature sensor is integrated into the measurement chamber and
connected to the input Temp. 1 (T1).
For PoolManager
®
O2, temperature measur
temperature compensation is used (see section Automatic O2
(BayroSoft) dosage).
14.3 Measured temperatures
Various functions and sensor types can be allocated to all three
temperature inputs. Allocation is realised in the following menu:
Configuration Temperature
The following functions can be assigned to each individual
temperature input:
• Measurement water
Temperature of measurement water The integrated standard
measurement water sensor in the measurement chamber is
connected to input Te
mp. 1 (T1) in the default
• Pool water
Temperature of the pool water (measurement in circulation circuit)
• Solar
Water temperature in the solar collector
• Air (indoor hall)
Air temperature in the indoor hall
• Air (outside temperature)
Outside air temperature
14.4 Sensor types
Furthermore, the sensor type used can be configured for each
temperature input:
• PT1000 (standard)
This is the standard measurement water sensor
used in the measurement chamber.
• KTY83
This model was used in earlier BAYROL devices
• KTY16-6 (2kΩ parallel)
This model was also common in the swimming pool industry
IMPORTANT NOTICE!
KTY16-6 temperature sensor
When using a KTY16-
6 sensor, a
be connected parallel to it in order to match the sensor
to the measurement r
ange of the two other sensor
models.
User Manual PoolManager
®
has a total of three temperature measurement inputs. A
temperature sensor can be connected to each of them. The three
Temp.1 (T1), Temp.2 (T2), and Temp.3 (T3).
The temperature sensor for the measurement water is connected to
Measurement water temperature
measures the temperature of the measurement water
flowing through the measurement chamber. To that end, a PT1000
temperature sensor is integrated into the measurement chamber and
O2, temperature measur
ement for calculating
temperature compensation is used (see section Automatic O2
Various functions and sensor types can be allocated to all three
temperature inputs. Allocation is realised in the following menu:
The following functions can be assigned to each individual
Temperature of measurement water The integrated standard
measurement water sensor in the measurement chamber is
mp. 1 (T1) in the default
state.
Temperature of the pool water (measurement in circulation circuit)
Furthermore, the sensor type used can be configured for each
This is the standard measurement water sensor
This model was used in earlier BAYROL devices
This model was also common in the swimming pool industry
6 sensor, a
2kΩ resistor
has to
be connected parallel to it in order to match the sensor
ange of the two other sensor

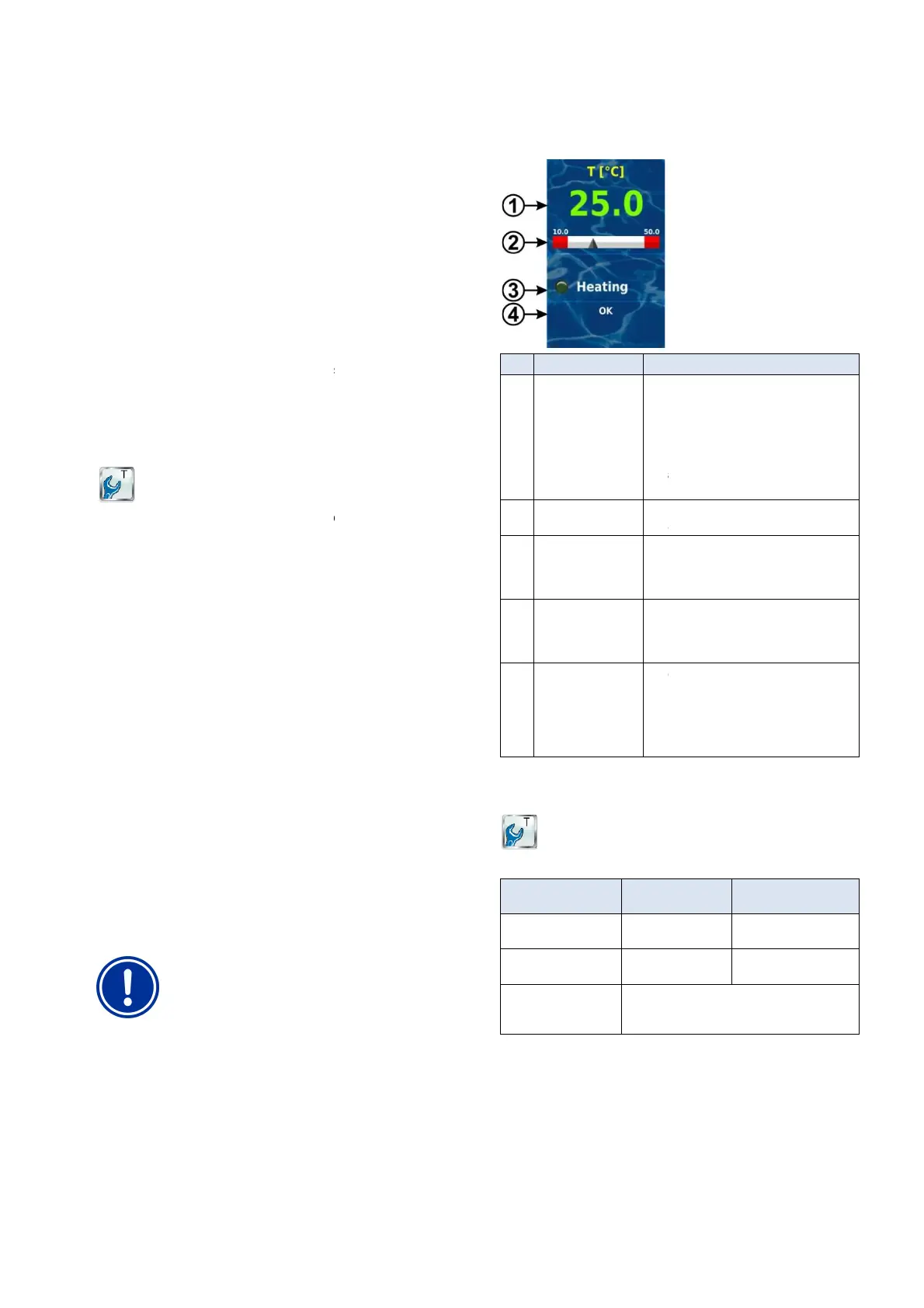

14.5
Display in home view
Pos. Content
Notes
1 Current measured
value
0.0...50.0 °C (input T3: 0.0...75.0 °C)
Colour of measured value display:
green
everything OK
yellow
or
start delay
red
2 Measured value scale
Graphic display of current measured value
and alarm thresholds.
3a LED symbol
The LED symbol is only displayed when the
supplemental
It illuminates when the heating system is
a
ctive, i.e. when heating is on.
3b Status of heating
and/or solar heating
This status is only displayed when the
supplemental
function is being used.
For details, please review the section
4 Alarms
All active alarms are shown regarding
temperature measurement.
Alarms whose cause has already been
remediated disappear from the display, even
if they have not been acknowledged.
If there is no active alarm, "OK" appears.
14.6
Configuration temperature
Config
uration of temperature measurement is performed in the menu:
Configuration Temperature
There, the following parameters can be configured:
Parameter
Setting range
Top alarm threshold
T1 / T2 / T3
0.0…50.0°C
(T3
0.0…75.0°C)
Bottom alarm threshold
T1 / T2 / T3
0.0…50.0°C
(T3 0.0…75.0°C)
Sub-menu
Configuration of
temperature sensors
Configuration of functions and sensor types for
T1 / T2 / T3, see section
Temperature sensors
41
Display in home view
Notes
0.0...50.0 °C (input T3: 0.0...75.0 °C)
Colour of measured value display:
green
Normal operation,
everything OK
yellow
Flow signal missing
start delay
Alarm
Graphic display of current measured value
and alarm thresholds.
The LED symbol is only displayed when the
supplemental
heating function is being used.
It illuminates when the heating system is
ctive, i.e. when heating is on.
This status is only displayed when the
supplemental
heating or solar heating
function is being used.
For details, please review the section
Heater.
All active alarms are shown regarding
temperature measurement.
Alarms whose cause has already been
remediated disappear from the display, even
if they have not been acknowledged.
If there is no active alarm, "OK" appears.
Configuration temperature
uration of temperature measurement is performed in the menu:
Configuration Temperature
There, the following parameters can be configured:
Setting range
Standard setting,
default set Europe
0.0…50.0°C
0.0…75.0°C)
10.0°C
0.0…50.0°C
(T3 0.0…75.0°C)
50.0°C
Configuration of functions and sensor types for
T1 / T2 / T3, see section
Temperature sensors
