48
Hardware description
User Manual PoolManager
®
88
48.5 Power supply 230V~
PoolManager
®
has three different branches for 230V~ supply:
230V~ supply for the PoolManager
®
unit
(L / N / PE, fuse F1 3.15AT)
230V~ supply for dosing outputs
(L
F
/ N
F
/ PE, fuse F2 2AT)
230V~ supply for alarm relay and supplement functions
(L
F
/ N
F
/ PE, fuse F2 2AT)

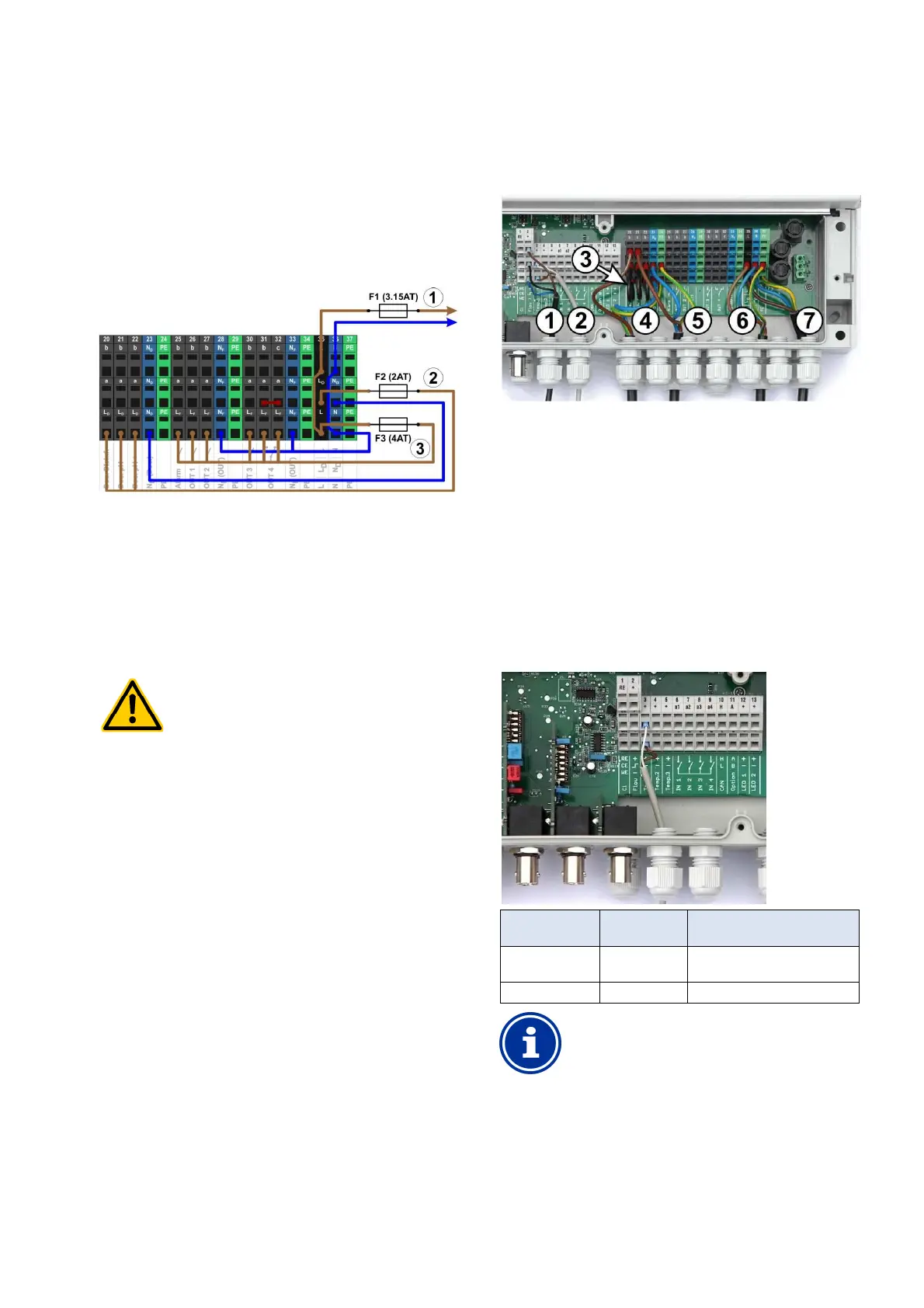

The following figure schematically shows the connections present on
the printed circuit board:
The supply for the PoolManager
®
unit as well as for the alarm relay
and the supplemental functions share a mutual power input (L/N).
Phase L for PoolManager
®
is run from the input over via fuse F1.
Phase L
F
for the alarm relay and the supplemental functions is run
from the input via fuse F3. Neutral conductors N and NF are
connected to each other internally.
Supply to the dosing outputs is run via a separate power input (L
D
/
N
D
). This input is fused via F2 and does not have an internal
connection to L / L
F
or N / N
F
.
HAZARD!
Gaseous chlorine produced from dosing in standing
water if dosage outlets are not locked.
If the flow switch is stuck or experiences other types of
errors, there is a risk of dosing in standing water.
Poisonous chlorine gas can be yielded when
ChloriLiquid and pH minus come together.
Potential consequence: Death or the gravest
degree of injury,
heavy material damage.
Only run power to input L
D
/ N
D
for the dosage
outlets if circulation is running under voltage
(dosage outlets locked via filter pump).
Connect power input L
D
/ N
D
to the timer that
controls the filter pump, or use the corresponding
outlet on the filter pump.
If PoolManager
®
is controlling the filter pump
directly, then locking automatically occurs
internally.
48.6 Standard wiring
(Without supplemental functions)
The following figure schematically shows a typical PoolManager
®
connection configuration.
1 Flow switch [terminal block 2]
2 Temperature sensor [3]
3 Wire bridges from L
D
to a for 230V~ dosing pumps
4 Dosing pump disinfection [20]
5 Dosing pH minus [21]
6 230 V~ power supply for dosing pumps
[L
D
/ N
D
/ PE], locks via the filter pump!
7 230 V~ power supply for PoolManager
®
, the alarm relay,
and supplemental functions [L / N / PE]
48.6.1 Connecting a temperature sensor
Also see the section Temperature measurement.
Terminal Function
Cable colour
(standard PT1000 sensor)
[3+] / [4+] / [5+] Measurement
input
White
[3-] / [4-] / [5-] Ground Brown
INFO
Expansion temperature measurement range for
Temp. 3
Temperature
input Temp. 3 is designed for
temperatures from 0...75°C and is therefore particularly
well suited for connection with a solar sensor.
Temp. 1 and Temp. 2 are designed for 0...50°C.
