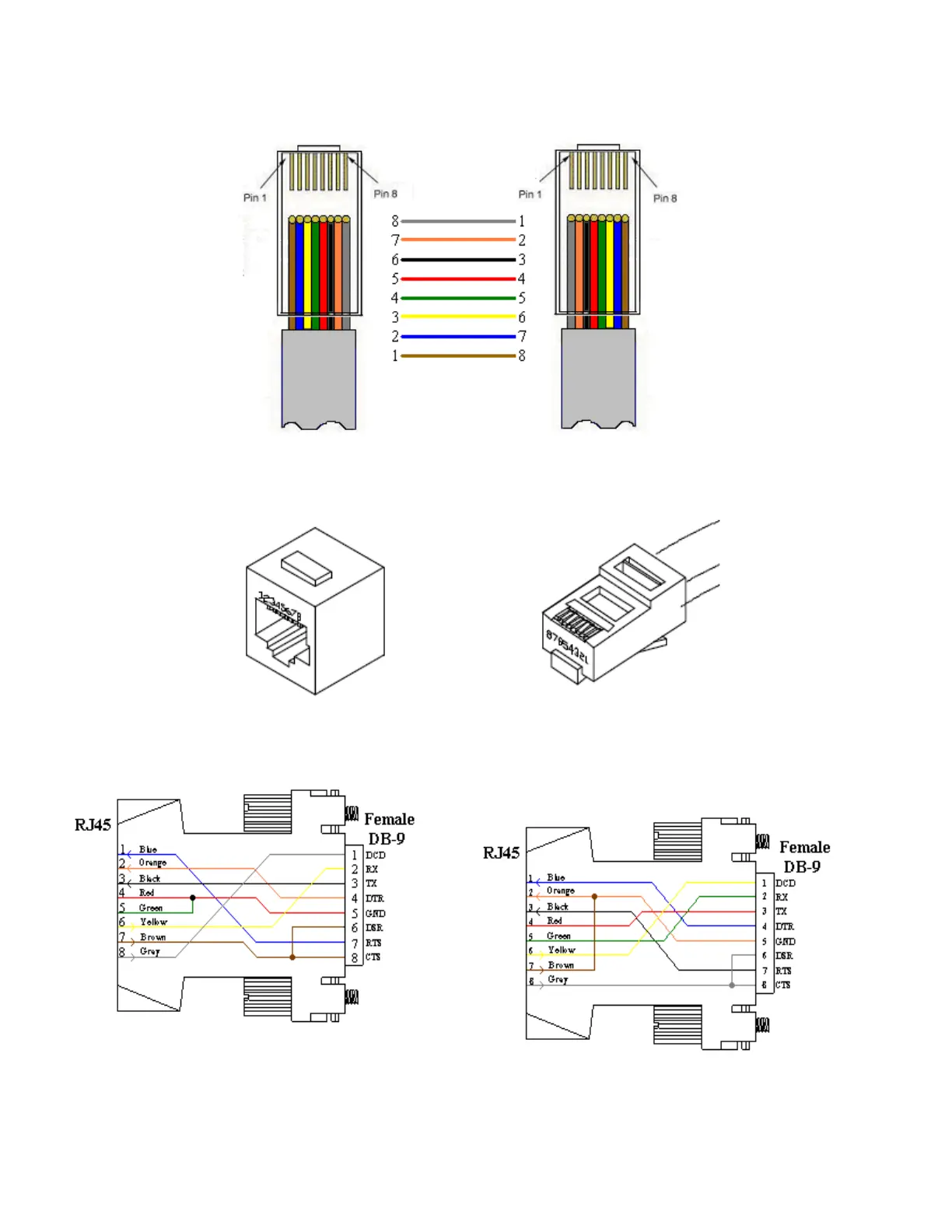

RJ08X007 Standard Rollover Cable – RJ45 to RJ45
Serial 2: RJ08X007 Pin out
Serial 3: RJ45 Receptacle & Plug
Adapters
Serial 4: 9FRJ45PC Cisco Adapter Pin Out
Serial 5: 9FRJ45PC-1 Adapter Pin out
Use with RJ08X007 Cable only if
controller has a B/C and is set to “C”)
Use with RJ08X007 Cable Without B/C
switch or With B/C switch set to “B”)
