BBH SMX Series User Manual

Installation manual
HB-37420-810-01-25F-EN SMX100 Installation manual.docx Page 151 of 260
Version: 25F

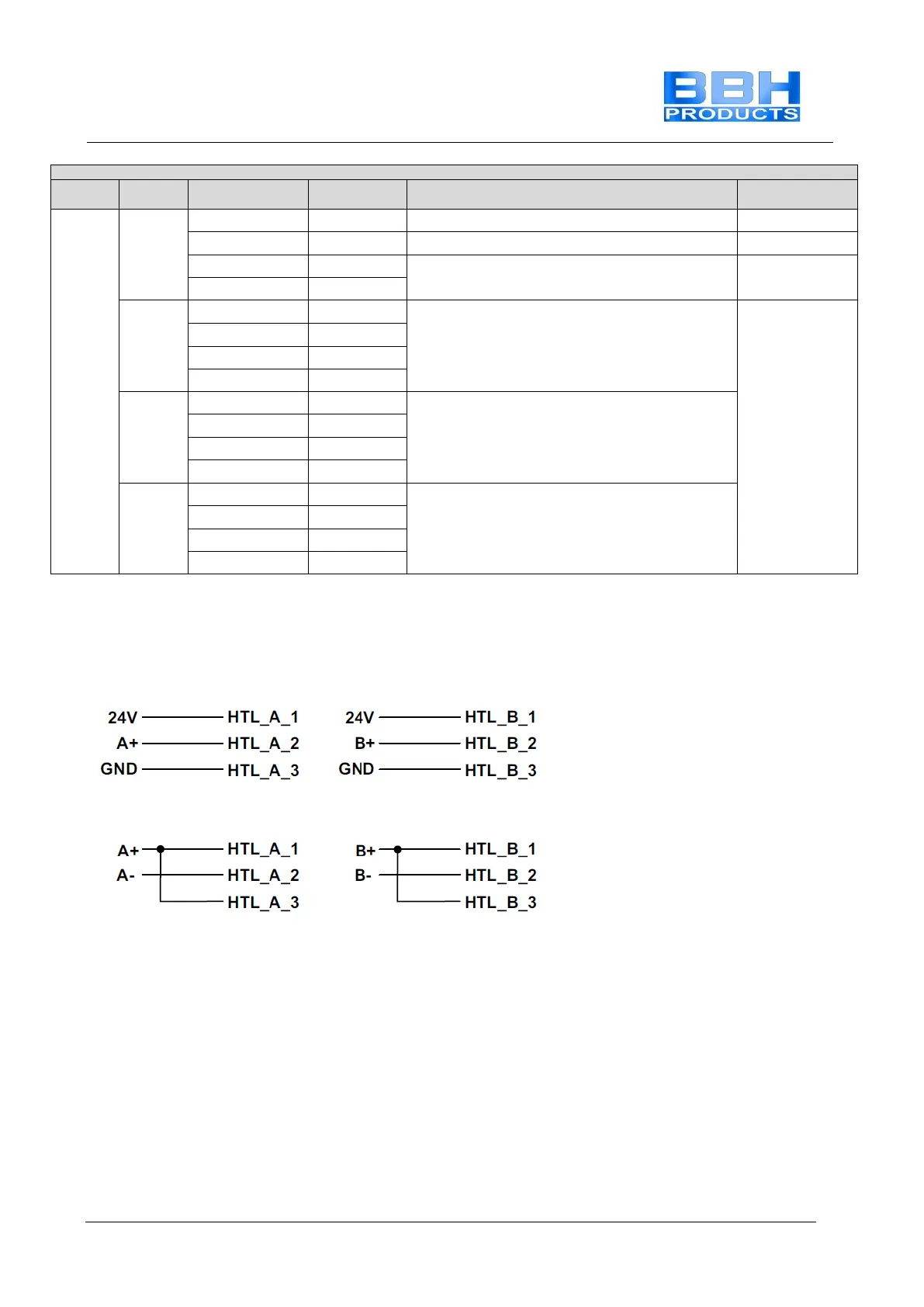

Terminal assignment
Unit
Terminal
Pin
Pin
SMXGen2 (/2)
Description
Note
ENC
X15
1 – U_ENC_2
1 – UE2+
Voltage supply encoder +24V DC X32
2 – GND_ENC_2
2 – UE2-
Voltage supply encoder 0V DC X32
3 – NC
3 – NC
No function
4 – NC
4 - NC
X16
1 – NC
1 – NC
No function
2 – NC
2 – NC
3 – NC
3 - NC
4 – NC
4 – NC
X25
1 – NC
1 – NC
No function
2 – NC
2 – NC
3 – NC
3 - NC
4 – NC
4 – NC
X26
1 – NC
1 – NC
No function
2 – NC
2 – NC
3 – NC
3 - NC
4 – NC
4 – NC
HTL encoder connection: A+/B+
HTL encoder connection: A+,A-/B+,B-
