pilot and student have their own controller with full-synchronized views
or as separate controllers for pilot and co-pilot.
1.5.1 AR6201 Single Block Transceiver
The AR6201 Single Block Transceiver is a compact and lightweight unit
designed for operation in a cockpit environment for both general
aviation aircraft and helicopters. The dimensions correspond to the
standard instrument diameter of 58 mm (2 ¼ inch). All controls and
indicators are located on the front panel.
The equipment connectors and the antenna socket are located at the rear
of the units.
The AR6201 should be mounted by means of four screws (rear panel
installation).

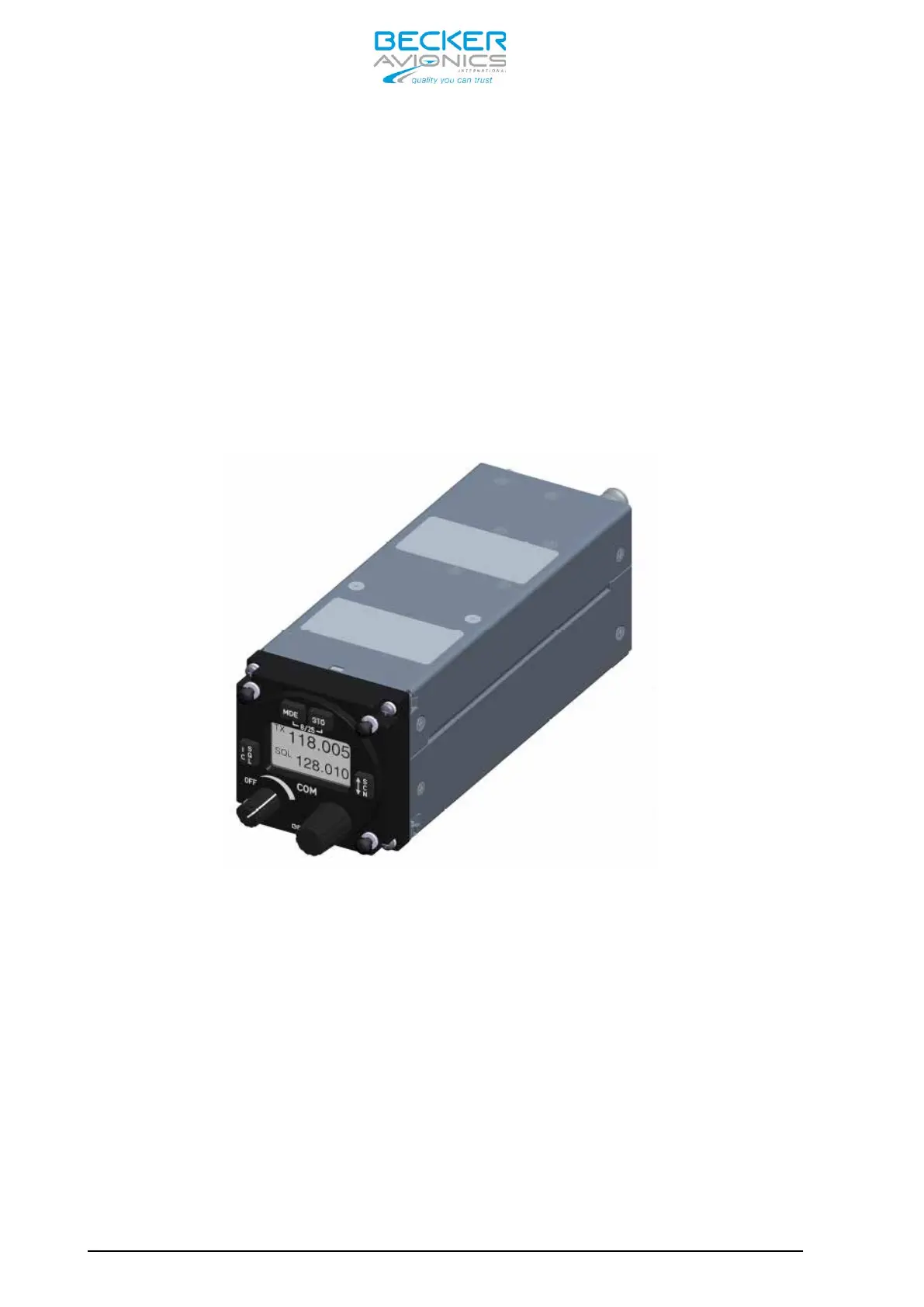

Figure 1-1: AR6201 Single Block Transceiver; 58 mm (2 ¼ inch)
standard instrument cut-out
1.5.2 RT6201 Remote Transceiver
The RT6201 Remote Transceiver is a compact and lightweight single block
unit in rectangular shape that contains a VHF transceiver. The
dimensions correspond to the standard instrument diameter of 58 mm (2 ¼
inch).
The RT6201 Remote Transceiver can be controlled via its dedicated
controller RCU6201 or by a third party controller via MFD (BECKER
proprietary protocol required).
