AR6201 - RT6201 - RCU6201 - AR6203
DV 14307.03 Issue 1 09/2013 Page 1-5

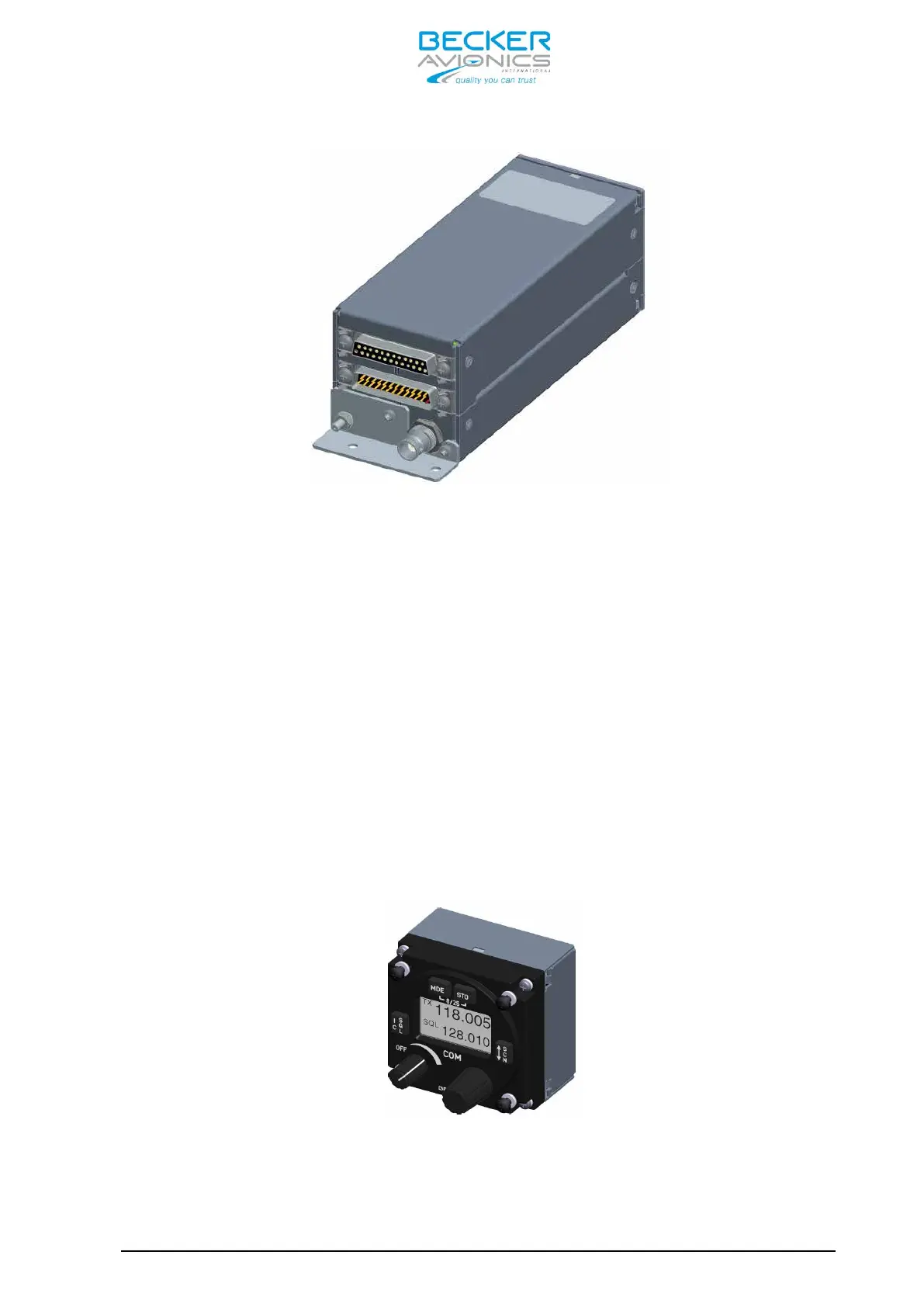

Figure 1-2: RT6201 Remote Single Block VHF transceiver,
back panel installation
The RT6201 Remote Transceiver is installed by means of the attached
mounting provisions and four screws (back panel installation).
1.5.3 RCU6201 Remote Control Unit
The RCU6201 Remote Control Unit is a compact and lightweight unit. The
dimensions correspond to the standard instrument diameter of 58 mm (2 ¼
inch).
All controls and indicators are located on the front panel. The
equipment connectors are located at the rear of the units.
The controller RCU6201 should be mounted with four screws (rear panel
installation).
Figure 1-3: RCU6201 Remote Control Unit; 58 mm (2 ¼ inch)
standard instrument cut-out
