1.5.4 AR6203 Single Block Transceiver
The AR6203 Single Block Transceiver is designed as a single block unit.
AR6203 is designed for operation in a cockpit environment for both
general aviation aircraft and helicopters. The dimensions correspond to
the
state-of-the-art 160mm (6.3 “) panel mounted design.

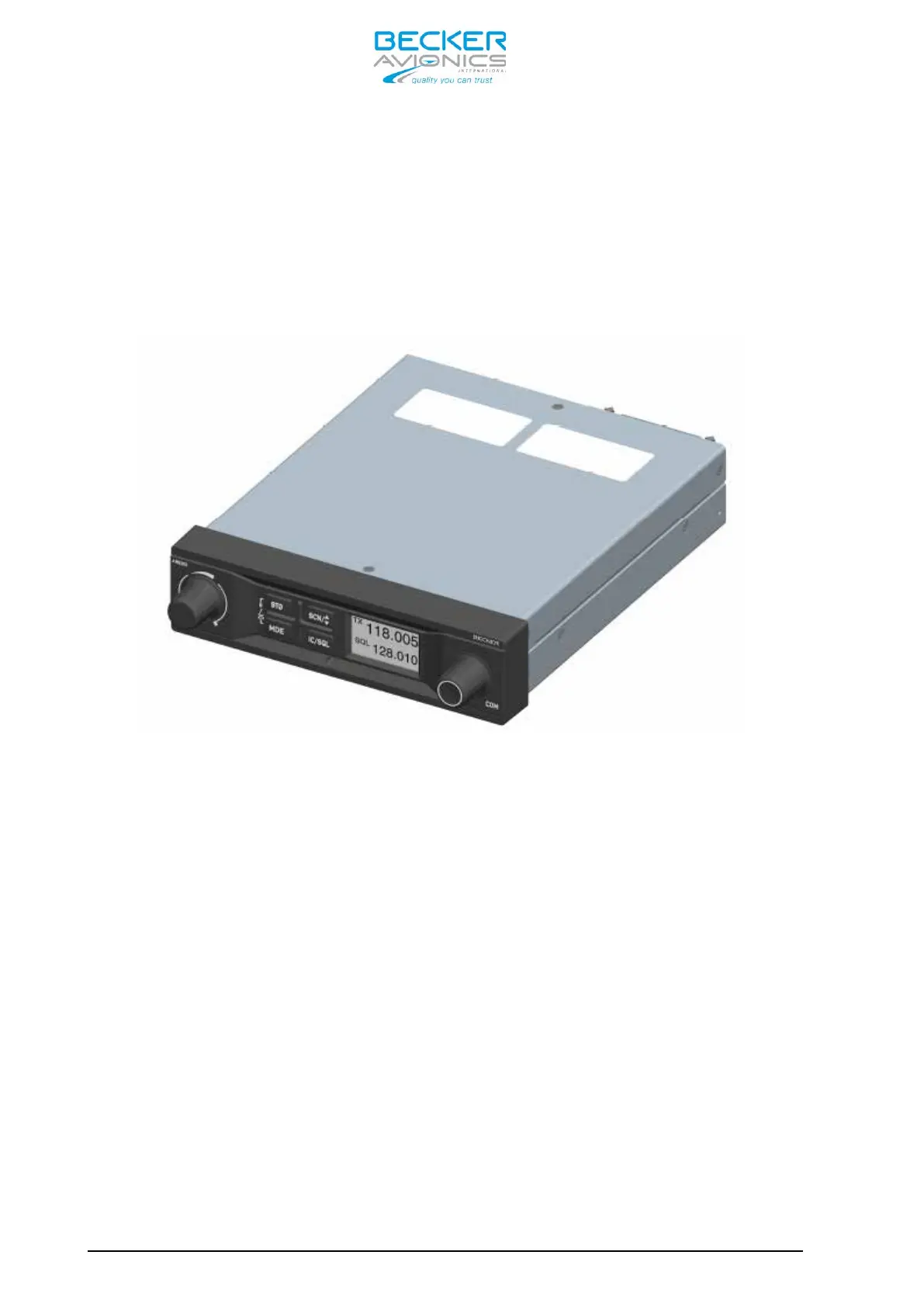

Figure 1-4: AR6203 Single Block Transceiver
All control elements are located on the front panel of the unit. For
connection to the aircraft inter-wiring two 25-pin unit connectors and
BNC antenna socket are located at the rear of the unit.
The AR6203 should be mounted with the designated mounting kit MK6403-1
(refer to chapter 1.10). Six holes on both sides of the mounting kit
frame enable the device to be mounted in the aircraft cockpit.
1.6 Features Overview
Frequency Indication
A liquid crystal display (LCD) provides the frequency indication. The
required operating frequency is set with the rotary knob. The relation
between the real operating frequency and the displayed frequency is
according to standards (ED-23B, chapter 1.3.2). For an overview, refer
to the table below.
