Becker RT6201 - Wiring for Aircraft with Four Seats (no TANDEM)

AR6201 - RT6201 - RCU6201 - AR6203
Page 2-48 DV 14307.03 Issue 1 09/2013
2.9.6 Wiring for Aircraft with Four Seats (no TANDEM)

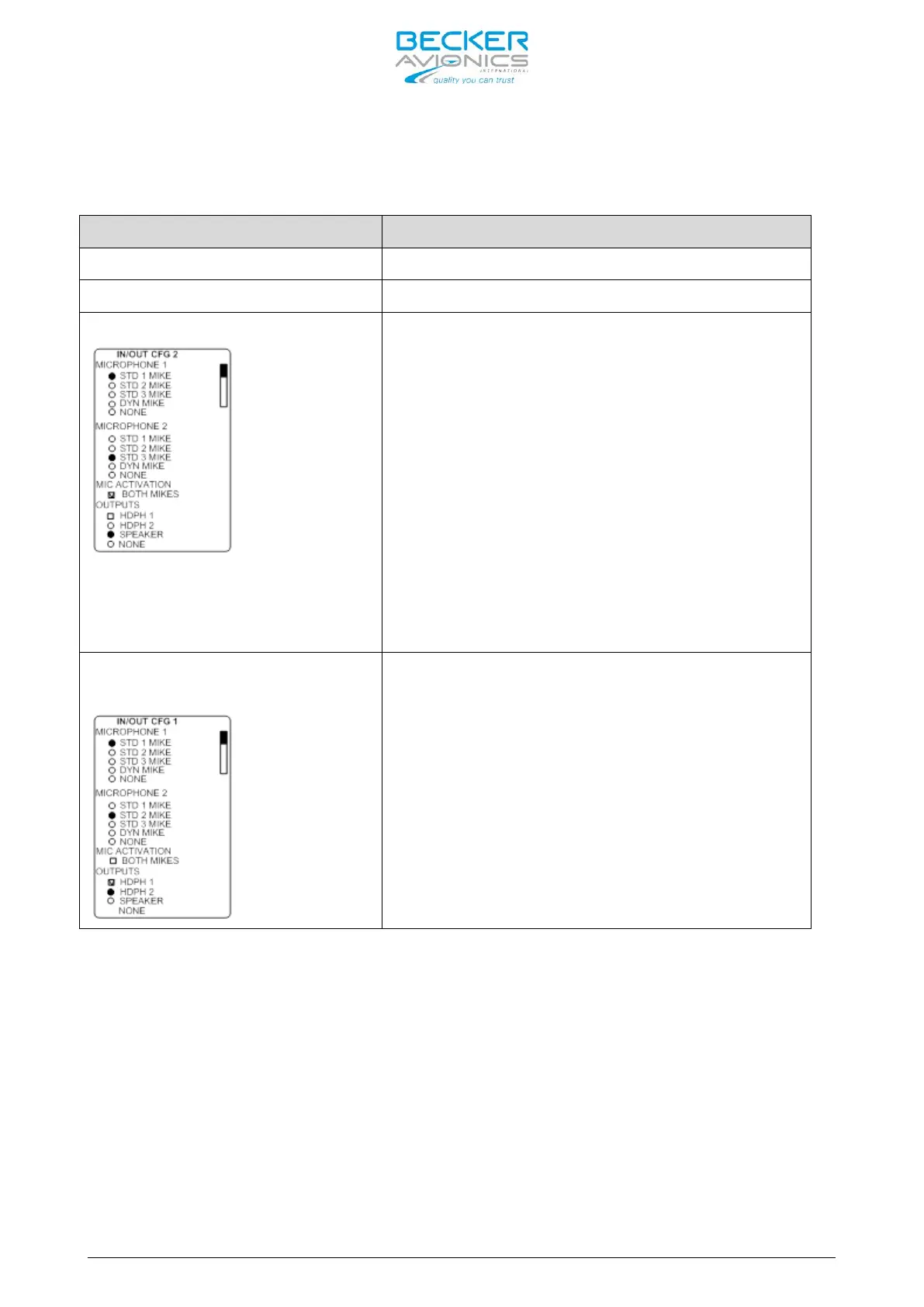

Installation Setup for Aircraft with Four Seats (no TANDEM)
Sub-Menu
Function: / Selection
“SPKR VOLUME SOURCE BOTH
“CONFIGURATION” “SWAP MIKE IC” : Disabled
“IN/OUT CFG1” (/MIKE_SW open):
“MICROPHONE 1” : STD1_MIKE
“MICROPHONE 2” : STD3_MIKE
“BOTH MIKES” : Enabled
“HEADPHONE 1” : Disabled
“SPEAKER” : Enabled
If only headphone(s) are used, SPEAKER can
be disabled by selecting NONE.
If only speaker is used, HDPH 1 can be
disabled.
The standard microphone remains selected for
both configurations
“IN/OUT CFG2”
(/MIKE_SW closed):
“MICROPHONE 1” : STD1_MIKE
“MICROPHONE 2” : STD2_MIKE
“BOTH MIKES” : Disabled
“HEADPHONE 1” : Enabled
“HEADPHONE 2” : Enabled
“SPEAKER” : Disabled
