AR6201 - RT6201 - RCU6201 - AR6203

DV 14307.03 Issue 1 09/2013 Page 2-39

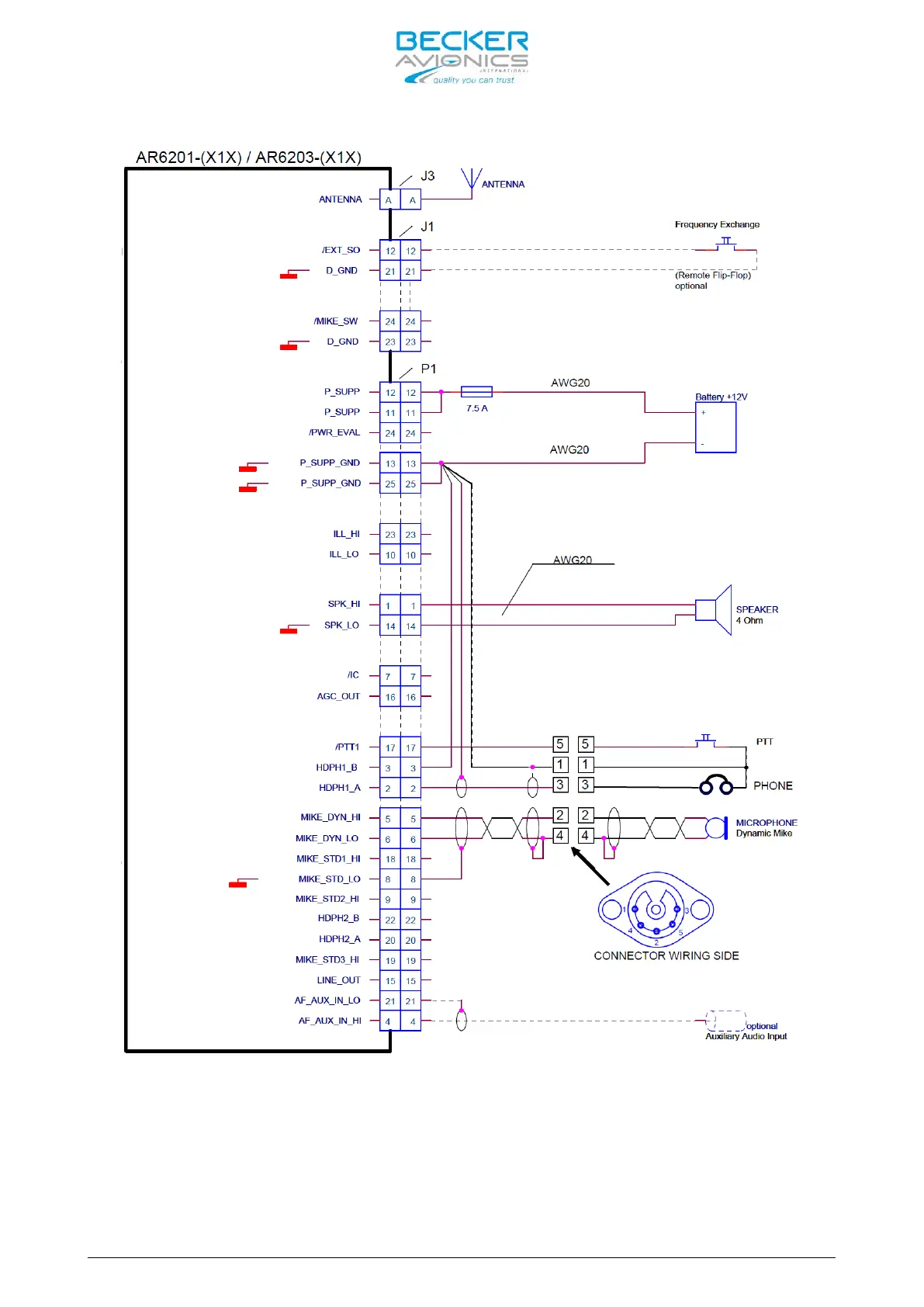

Figure 2-20: Typical Wiring for Single Seat Glider (5-pol DIN Jack)

Note: Frequency Exchange Switch is optional

Table of Contents6
List of Abbreviations10
Section 1 GENERAL DESCRIPTION13
- Introduction13
- Purpose of Equipment13
- General Notes14
- Variants Overview14
- Short Description15
- AR6201 Single Block Transceiver16
- RT6201 Remote Transceiver16
- RCU6201 Remote Control Unit17
- AR6203 Single Block Transceiver18
- Features Overview18
- Technical Data21
- Power Supply Data21
- General Data22
- Dimensions & Weight23
- Receiver Data for AR620X and RT620123
- Transmitter Data AR620X and RT620124
- Emergency Operation24
- Software25
- Complex Hardware25
- Regulatory Compliance25
- Environmental Qualification AR620X and RCU620126
- Environmental Qualification RT620128
- Accessories30
Section 2 INSTALLATION33
Limitations33
Unpacking the Equipment and Preparation for Installation33
Mechanical Installation33
- AR6201 and RCU6201 Installation33
- AR6203 Installation35
- RT6201 Installation37
Electrical Interface40
- Connectors and Pin Assignment for AR6201, AR6203 and RT620140
- Inputs / Outputs Detailed Description43
- Connector and Pin Assignment for RCU620148
Installation and Configuration of 620X Transceivers49
Antenna Installation50
Installation Setup for RT/AR6201-(X1X)51
- Entering Installation Setup51
- Leaving Installation Setup51
- Page up / Page down in the Installation Setup51
- Storage of Setup Data51
- Terminate Installation Setup51
- VU Meter52
- Installation Setup Pages - Data Description52
Factory Default Settings67
Typical Installations with Recommended Settings and Wiring Diagrams69
- Single Seat Glider69
- Twin Seat Motor Glider72
- General Aviation (GA) Aircraft Using Standard Microphones74
- Installation Setup for Individual Dual Headset Configuration (Two IC Circuit)76
- Installation Setup for Twin Seat with AR6201 Tandem Configuration78
- Wiring for Aircraft with Four Seats (no TANDEM)80
- Installation with RT620183
- Aircraft with Intercom System84
- Installation Setup for Twin Seat with RT6201 Tandem Configuration87
- Retrofitting an AR4201 with an AR620X89
Pin Compatibility89
Dynamic Microphone Input91
Temperature Sensor91
Interface91
Afcu/Agc/Afwb92
Cpin92
Switched92
Pwr_Eval92
- Post Installation Tests92
- Mechanical Installation and Wiring Check92
- Power Supply92
- Receiver / Transmitter Operation93
- Antenna Check93
- Interference Check93
- Flight Test Check95
- Trouble Shooting95
- Continued Airworthiness97
Section 3 OPERATION99
Safety Instructions99
Controls and Indicators100
Controls100
Symbols Shown on the Display101
Start-Up101
Receive and Transmit Mode102
Receive Mode102
Transmit Mode102
Frequency Selection Modes103
Standard Mode103
Direct Tune Mode103
Channel Mode103
Scan Mode107
Squelch108
RX Field Strength Indication108
Channel Spacing Mode109
Storage Function109
Manual Storage Function109
Automatic Storage Function111
Auxiliary Audio Input111
Intercom Operation111
VOX & Speaker Operation113
Menus113
Intercom Menu113
Pilots Menu115
Warning and Failure Indications116
