AR6201 - RT6201 - RCU6201 - AR6203

DV 14307.03 Issue 1 09/2013 Page 2-43

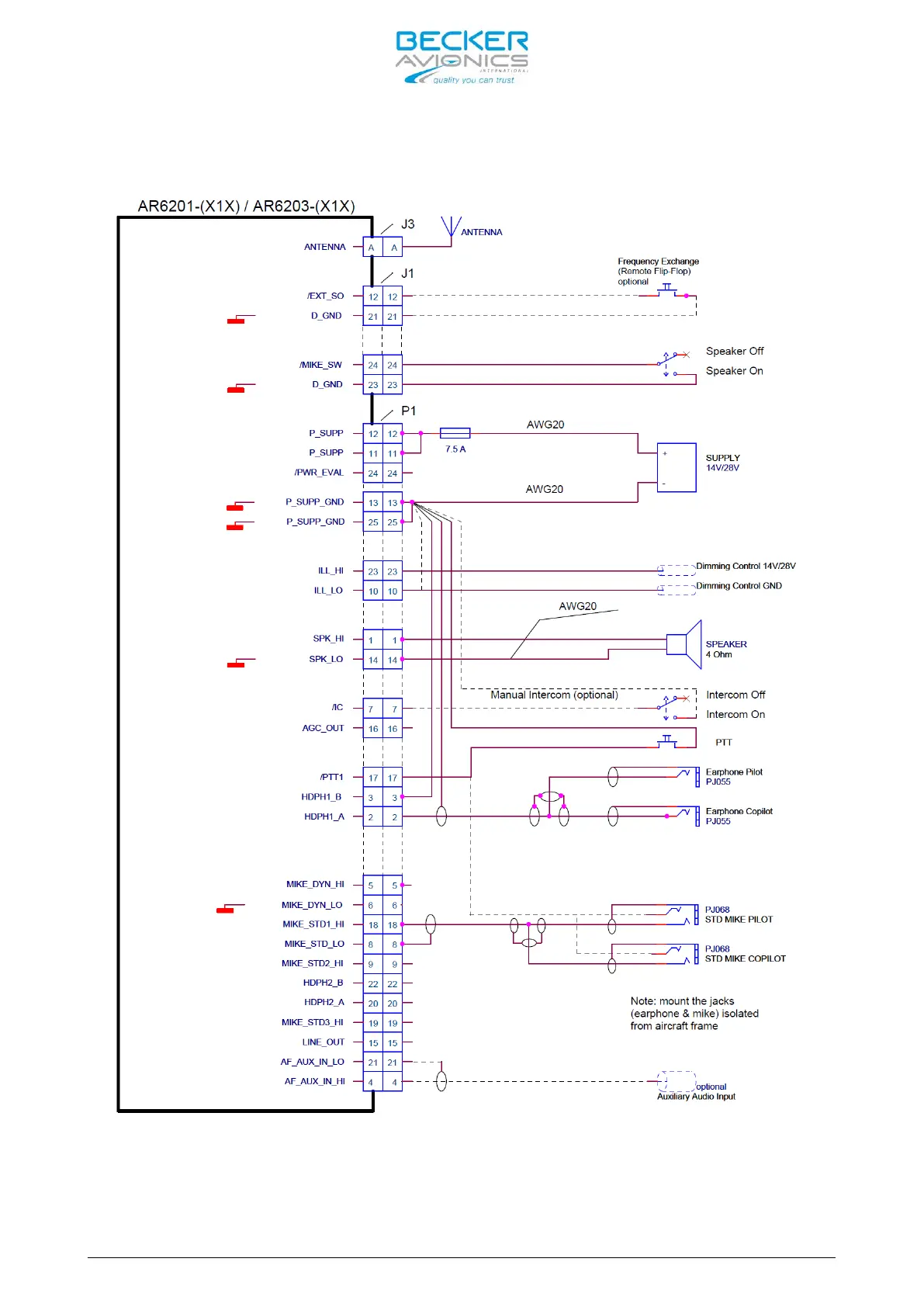

Installation Wiring Diagram

Figure 2-22: Typical wiring for usage of standard hand mikes, earphones and speaker
