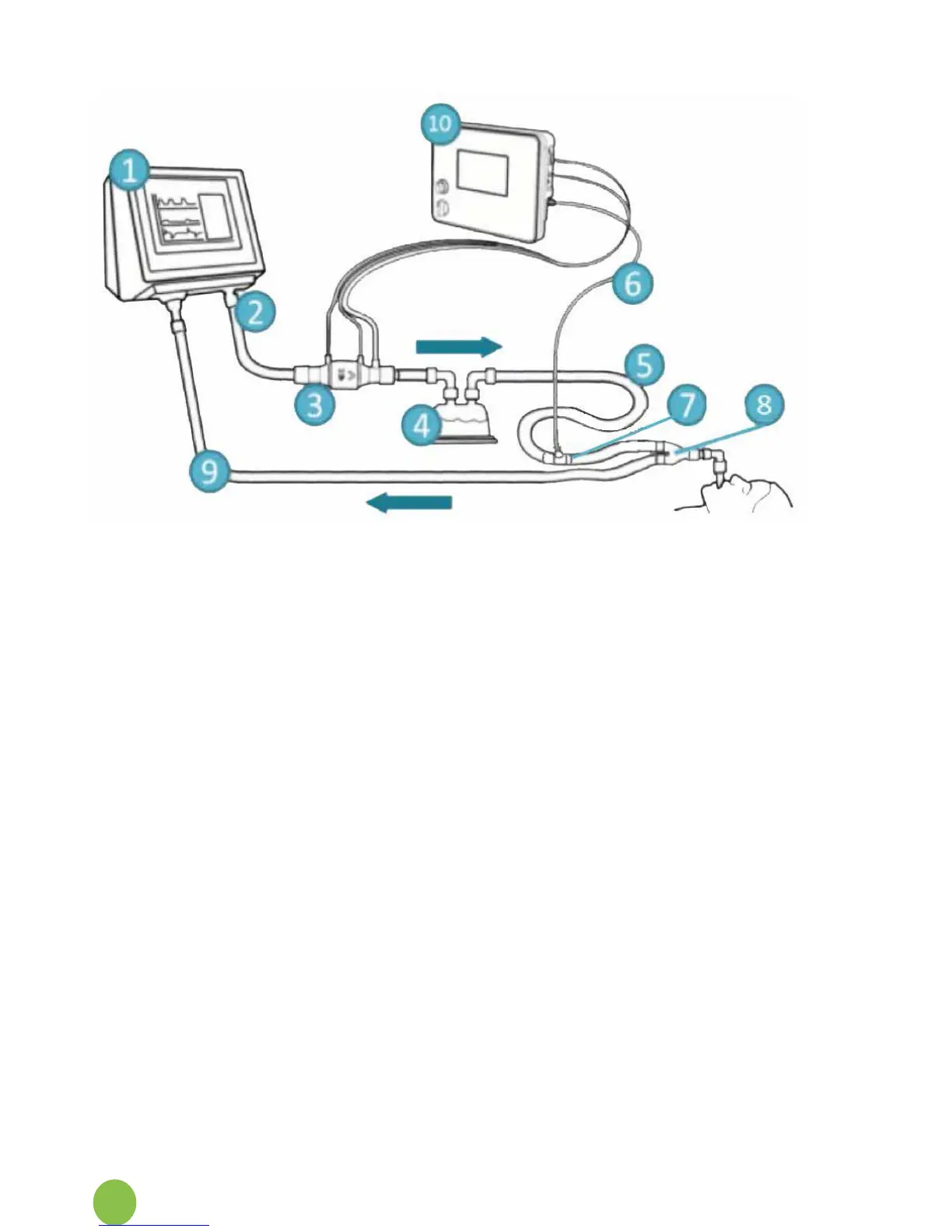

5.3 Vent circuit Example 1
1. Ventilator
2. VentilatorInspiratoryPort
3. NOxFLOW
TM
(use22For15Mtoventtubeadaptors)
4. Humidier
5. 0.7m-1.3mCorrugatedTubing(15mmor22mm)
6. NOxBOX
i
Sample Line
7. 10M–10F,12M–12F,15M–15For22M–22Fluerportconnector
8. Patient Y-piece
9. Expiratory limb
10. NOxBOX
i
NOTE:Toimproveaccuracyitisrecommendedtohaveapproximately30cmbetweenthepatient
Y-Piece(8)andthesampleline(6)wherepossible.
