5 PATIENT CIRCUIT SETUP

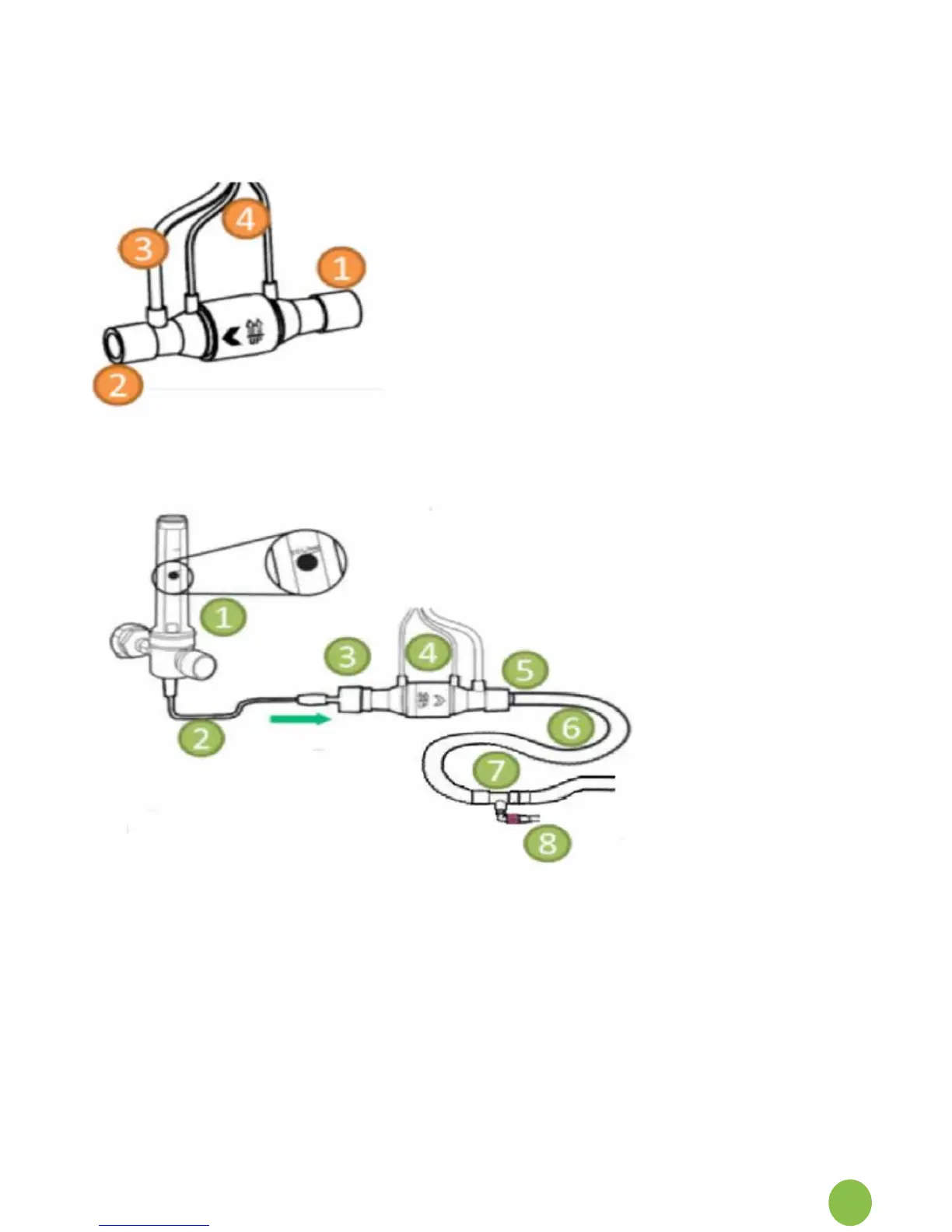

5.1 NOxFlow
NOxFlow™
1. 22M/15F inlet
2. 22M/15F outlet
3. NO dose line
4. NOxFlow sensor lines
5.2 System Test Circuit
System Test Circuit
1. O
2
owmeter
2. Oxygen tubing
3. 22F – 4.6mm connector
4. NOxFlow™
5. 10M–10F,12M–12F,15M–15For22M–22Fluerportconnector
6. 1mcorrugatedtubing(15mmor22mm)
7. 15M – 15M luer port or 22M – 22F luer port connector
8. NOxBOX
i
sample line
