7.2.3 Ethernet Port
The Ethernet port has a standard 10/100Base-T interface with an 8-pin (RJ-45) modular jack
connector and uses TCP/IP protocol. The connector orientation and pinout table are shown
below.
Pinout Table
1—
2TX
3RX
4—
5Ground
6—
7CTS (in)
8RTS (out)
9—

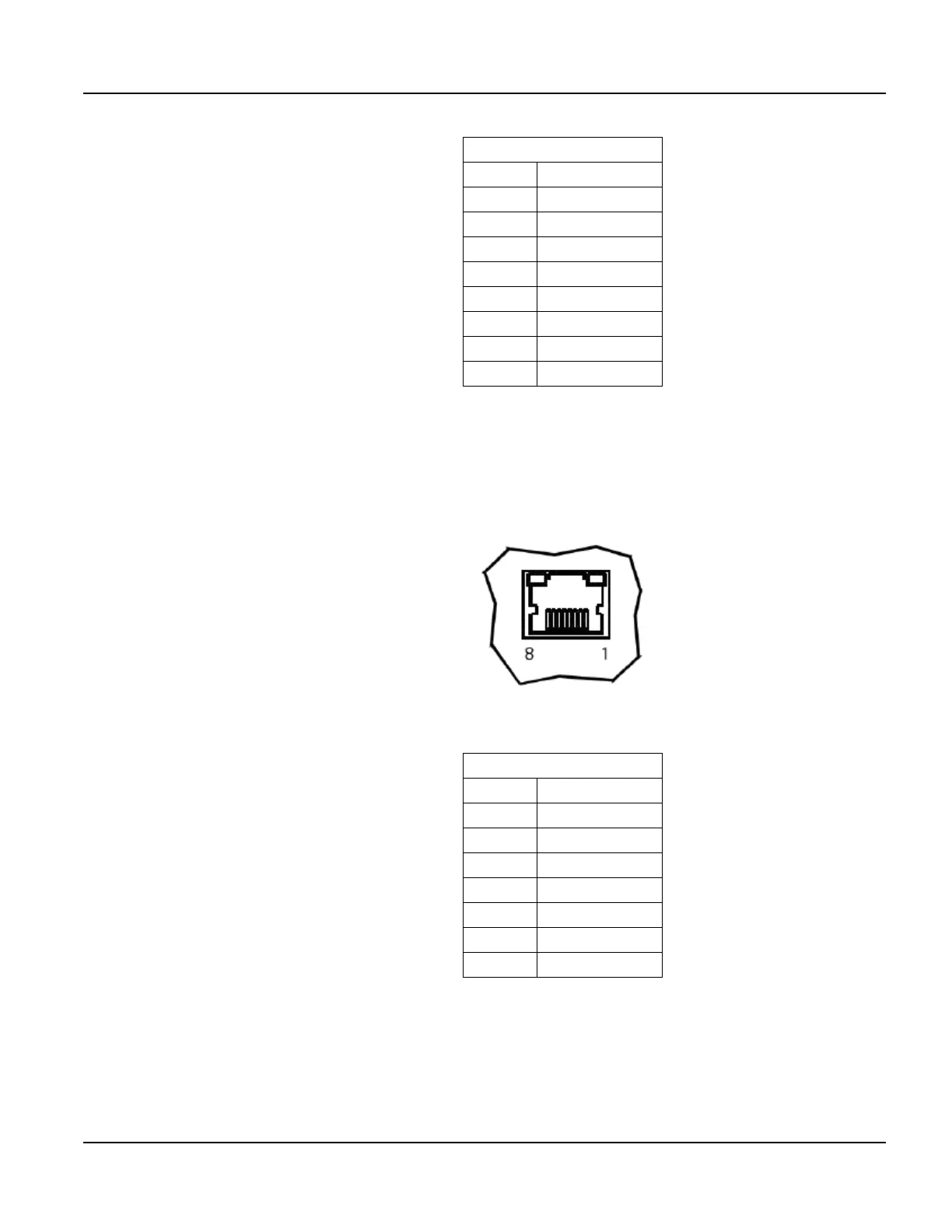

Figure 35
QTERM-G72 Ethernet Port
Pinout Table
1TX+
2TX-
3RX+
4—
5—
6RX-
7—
8—
