Qlarity-Based Terminal Hardware
3.2 Supported Interfaces
3.2.1 Handheld Connector Interface
The QTERM-G55 handheld terminal comes standard with one serial port through a 12-pin
round connector (Hirose HR30-8R-12SC) or integral cable with strain relief, terminated with a
DB15f connector. The serial port interface can be EIA-232, EIA-422 or EIA-485. A second
serial port is available as on option on non-E-stop units.

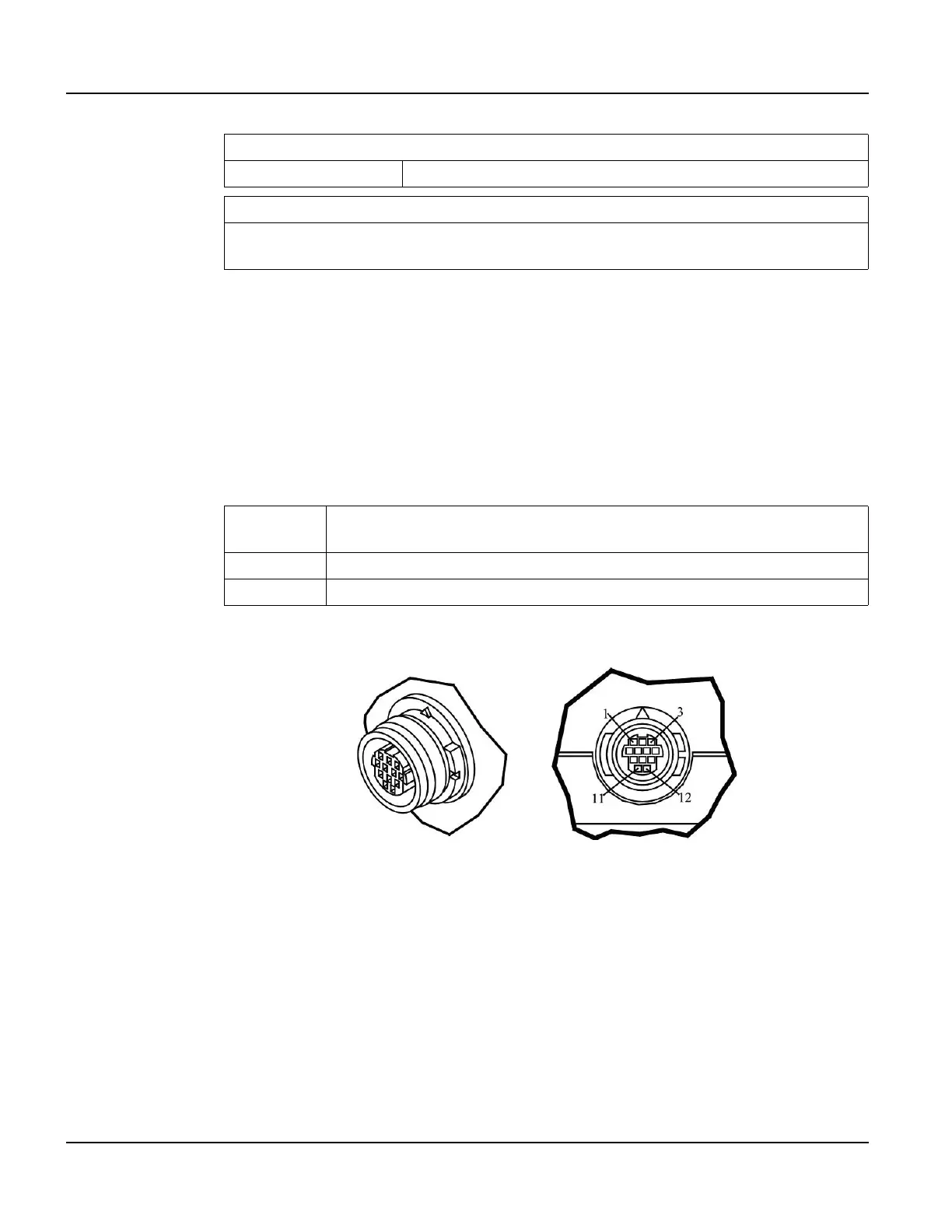

Figure 16 shows the handheld unit connector orientation.
CUSTOMIZING
Keypad legend Customize with logo/name or graphics
CERTIFICATION
FCC Part 15, Class B (Class A with Ethernet or PoE option)
CE Certification
EIA-232
with proper cables and grounding the terminal can communicate up to five
meters at a top speed of 115,200 bps
EIA-422 permits operation at distances up to 2,000 meters
EIA-485 permits multiple terminals to be connected in a multi-drop chain
Figure 16
QTERM-G55 Handheld Connector
