Installing to NEMA-4 QTERM-G70 Terminal

Qlarity-Based Terminal Hardware

3. On the back of the panel, place the terminal mounting bracket against the back of the ter-

minal, and align it with the back panel. Refer to Figure 7.

4. Fasten the six screws (supplied with the terminal).

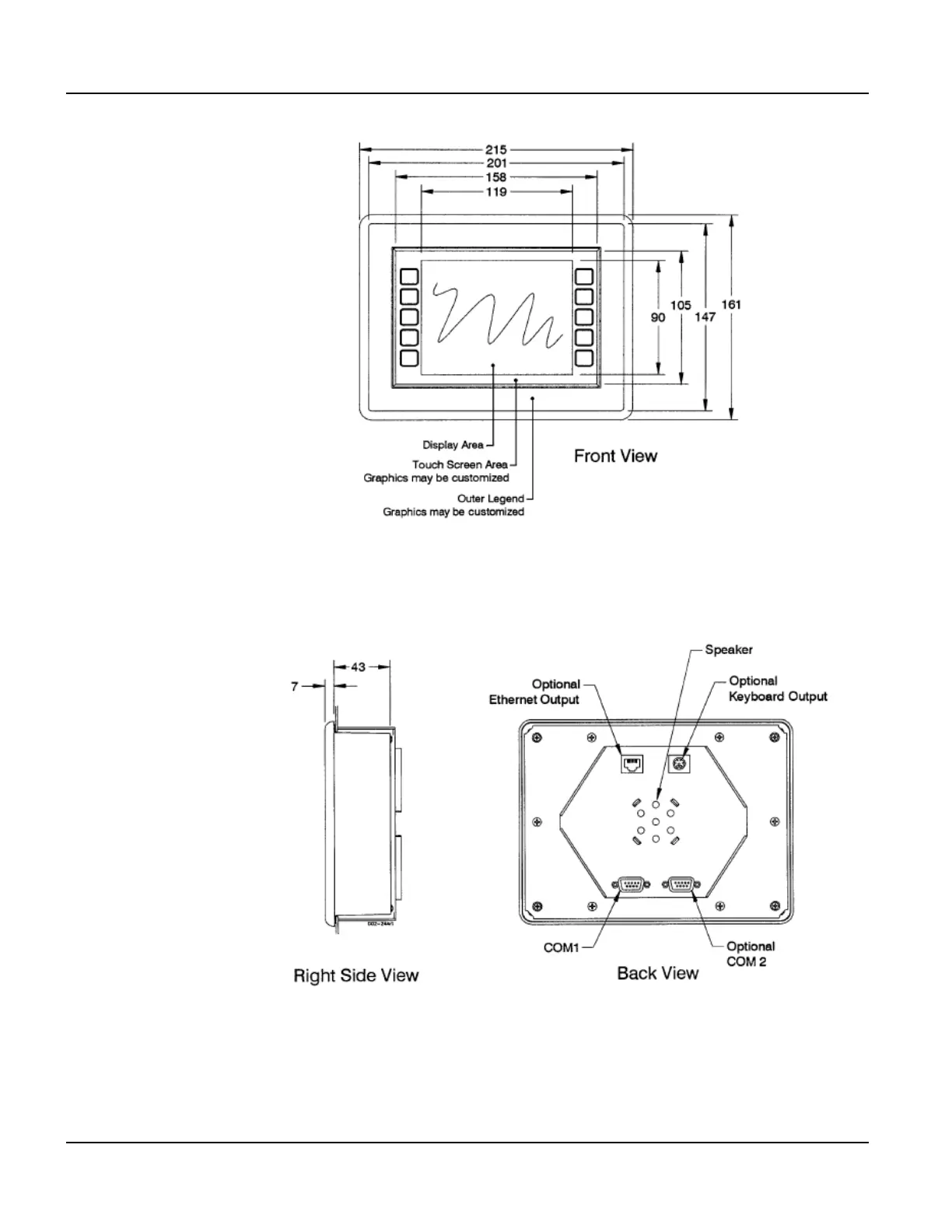

Figure 6

QTERM-G70 Front Panel Mount

Figure 7

QTERM-G70 Back Panel Mount
