Supported Interfaces QTERM-Z60 Terminal
76
Qlarity-Based Terminal Hardware

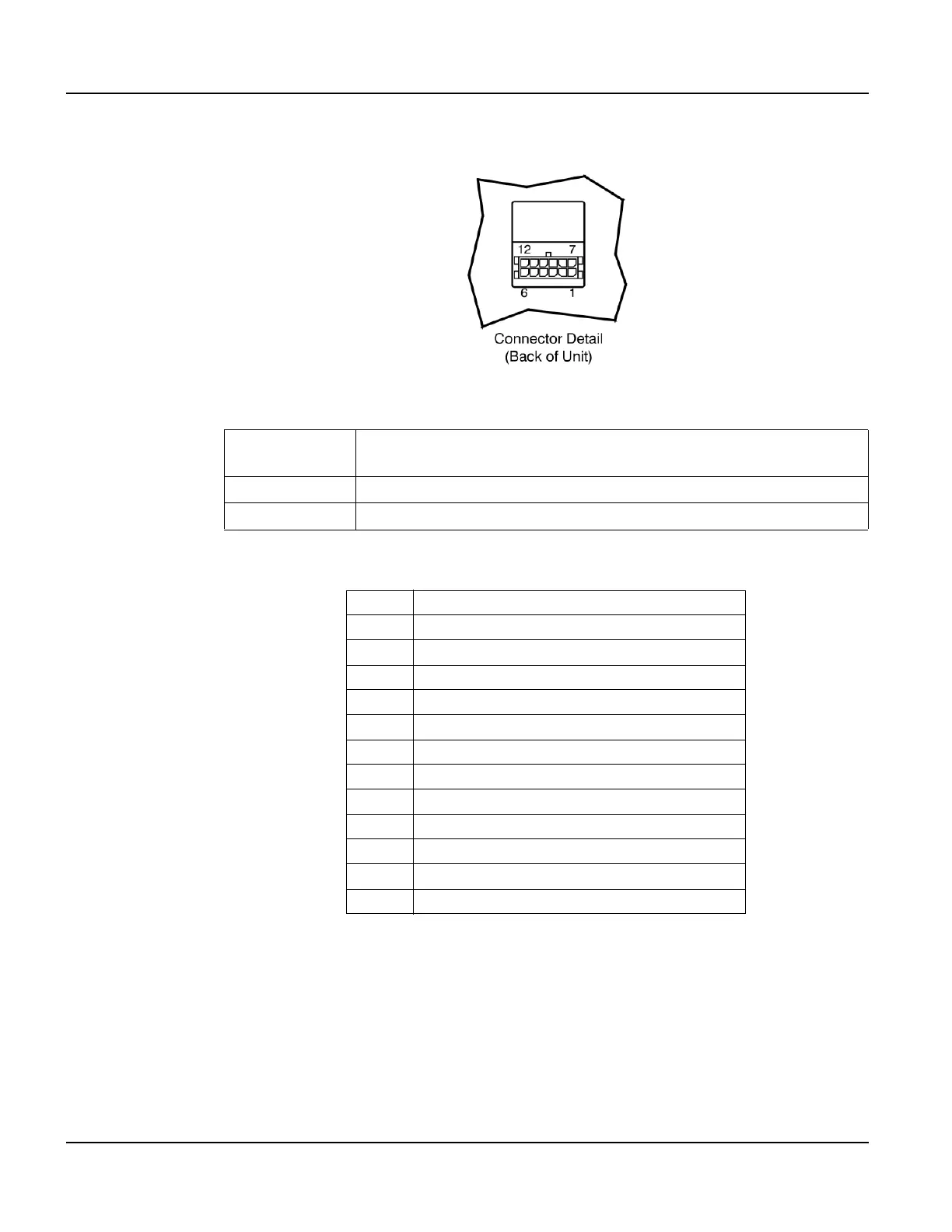

Figure 27 shows the serial connector’s orientation.
The following table shows the pinouts for the interface connector.
6.2.2 Five Volt Power Supply Output
Pin 5 of the interface connector is a 5 VDC power supply and can supply up to 200 mA current
to a serial peripheral device (such as a barcode reader). The ground return for the supply is on
pin 7 of the interface connector.
Figure 27
QTERM-Z60 Serial Connector
EIA-232
with proper cables and grounding the terminal can communicate up to
five meters at a top speed of 115,200 bps
EIA-422 permits operation at distances up to 2,000 meters
EIA-485 permits multiple terminals to be connected in a multi-drop chain
Pin Function
1Power In
2 RS-232 TX (out)
3 EIA-422 TX+ (out)
4 EIA-422 RX+ (in), or EIA-485 RTX+
5 5 VDC output
6 No Connect
7Ground
8 RS-232 RX (in)
9 EIA-422 TX- (out)
10 EIA-422 RX- (in), or EIA-485 RTX-
11 External Reset (in)
12 No Connect
