QTERM-G56 Terminal Supported Interfaces
Qlarity-Based Terminal Hardware 55
4.2.2.1 Power and USB Device Interfaces with Integral Cable
The following table shows the pinout for the power and USB device interfaces when the inte-
gral cable option is selected.
4.2.2.2 Serial Interface with Integral Cable
The following table shows the pinout for the selected typed of serial interface on the multipro-
tocol port.
4.2.2.3 Additional Serial Interface with Integral Cable (without Ethernet option)
The following table shows the pinout for the EIA-232 serial interface with integral cable.

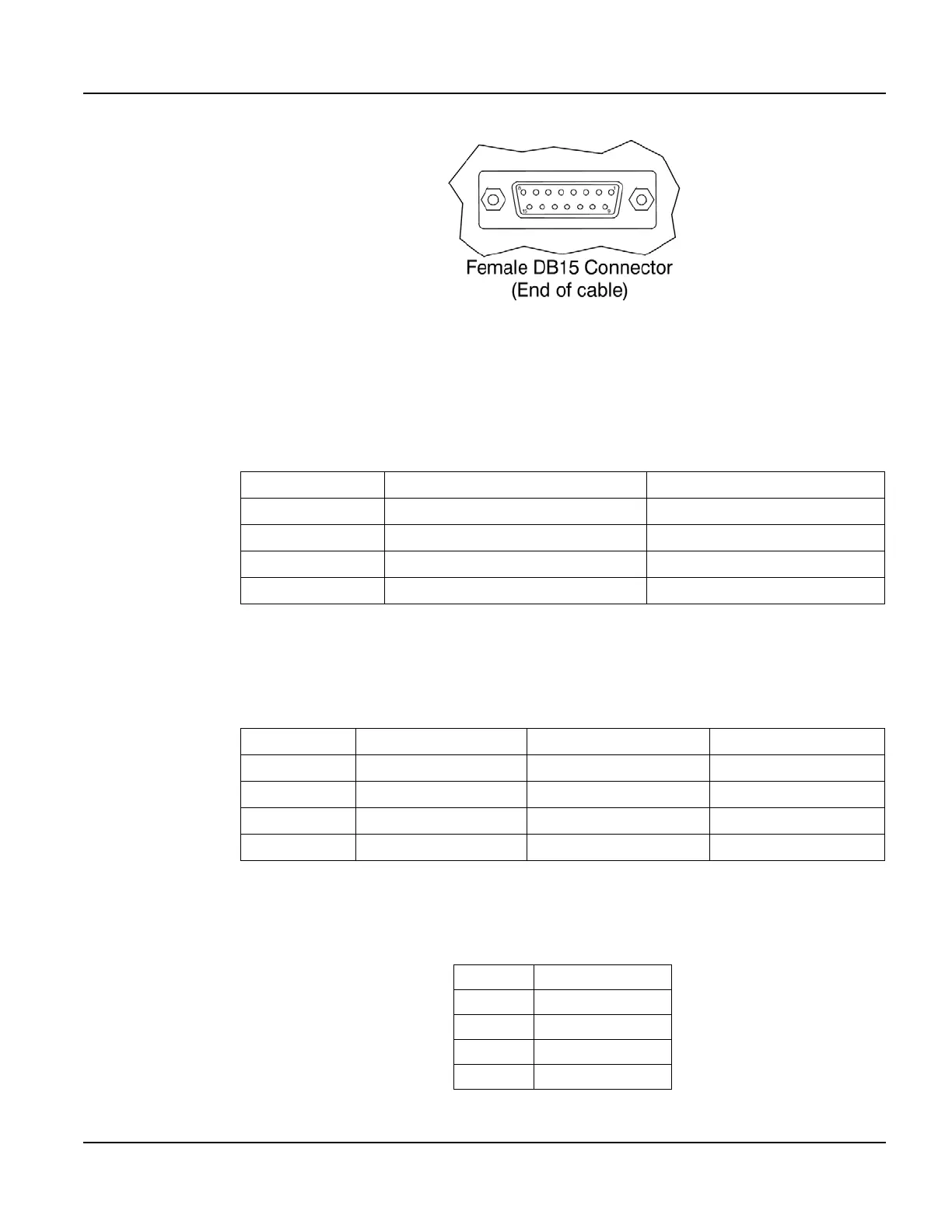

Figure 23
QTERM-G56 Integral Cable Connector
DB15f Pin Regulated (standard) 5 Volt USB Host
9 8 - 32 VDC 4.5 - 5.5 VDC
1 Ground Ground
2 N/A USB D+
3 N/A USB D-
DB15f Pin EIA-232 EIA-422 EIA-485
4Tx Tx- RTx-
5 RTS (out) Tx+ RTx+
10 Rx Rx+ No connect
11 CTS (in) Rx- No connect
Pin EIA-232
7Tx
14 RTS (out)
6Rx
13 CTS (in)
