Product description | VAS 6430 | 23 | en
1 690 386 012 2013-09-24| Beissbarth GmbH

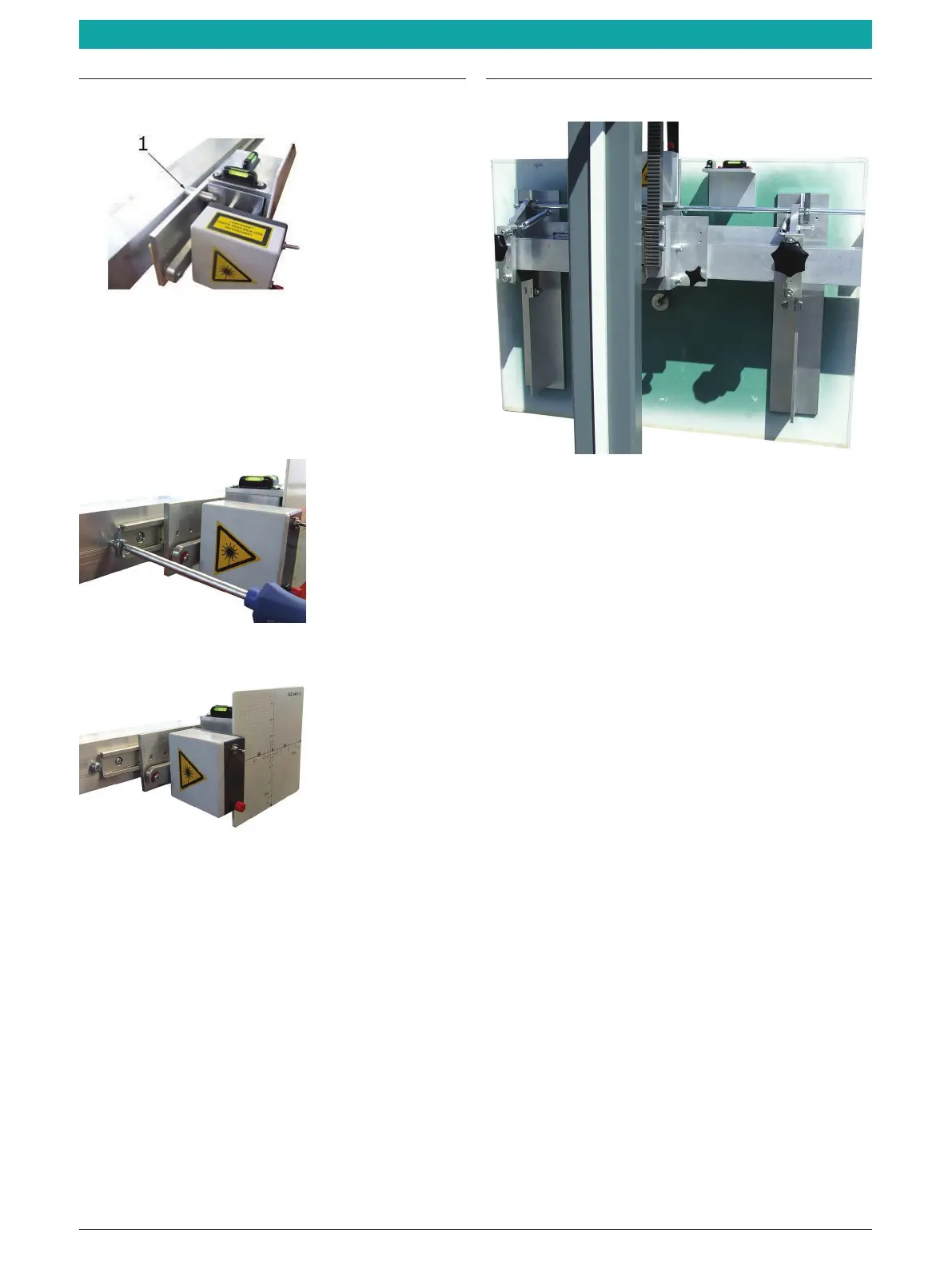

5.2 ACC laser unit 6430/2
Fig. 10: Fitting laser unit
1 Spring thrust piece
i The spring thrust piece must always be inserted.
1. Slacken off the bolt and slide in the ACC laser unit.
2. Re-tighten the bolt.
Fig. 11: Tightening bolt
Fig. 12: ACC laser unit fitted
5.3 ACC reflector 6430/3
Fig. 13: Rear view of ACC reflector
1. Slide the ACC reflector with the "U"-shaped bracket
centrally over the adjustment beam.
2. Swivel the two locking bars into position and fasten
the reflector mount to the adjustment beam with the
star knob screws.
