Chapter 2 System Overview
Point of Sales (POS) Connections
The Belanger INTEGRA® System is designed to work with most any POS system on the market today. The
following information will explain the basic connections required to work with most systems.

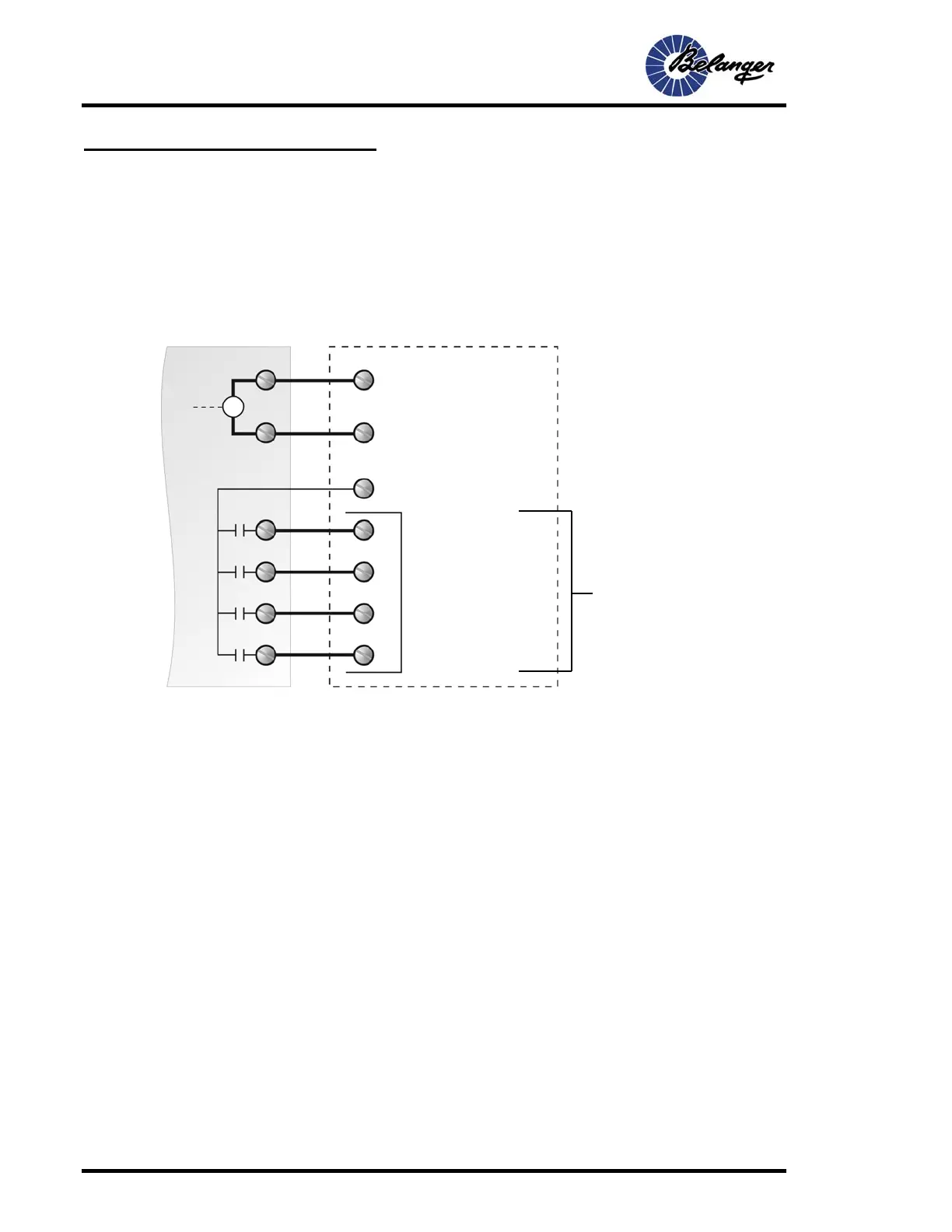

These instructions should make it very clear which typical inputs and outputs are available to the field for the POS
installation. Following that, the responsibility is on the installers to be able to integrate our product with a third party
POS.
Review the SETUP screen for alternative methods.
Note 1:
See your supplied 3
rd
Party POS manual for Wash-In-Use coil voltage. Connection to PIN 11 of the WASH IN USE
Relay may need to be changed.
3
rd
Part
y
POS Belan
g
er INTEGRA
728: Wash-In-Use Signal
338 (0VDC)
(See Note 1)
338: (0VDC)
x15: Package Select 1
x16: Package Select 2
x17: Package Select 3
X20: Package Select 4
A1
A2
(See Note 1)
Wash 1
Wash 2
Wash 3
Wash 4
These inputs
may also be
utilized in
BINARY to get
15 packages
