INTEGRA® / E-1063
1MANUL102 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 4-13

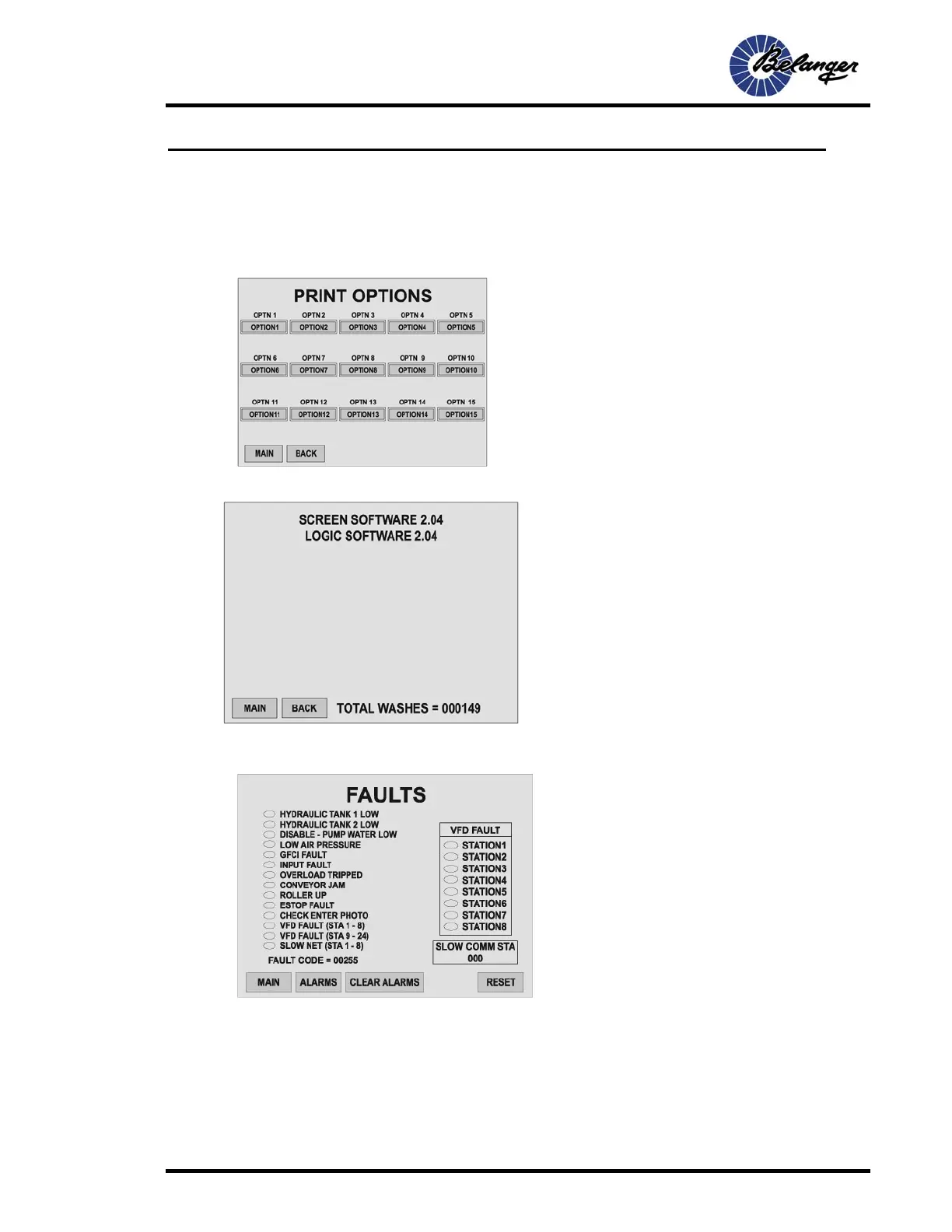

Chapter 4 Operator Interface/Standard Wash Operation Screens
User
User / Print
User / Print / Options
User / About
Faults
Screen Key:
• Pressing these buttons will print the corresponding
setup.
Screen Key:
• This screen displays the software version for
both the HMI screen and the Logic in the
controller.
• This screen also displays the accumulated
total of vehicles washed by the controller.
Screen Key:
• The ovals to the left will fill in solid when the
Fault is active.
• The Fault Code is the number that will be sent
to a pager to represent the current Fault
status.
