Chapter 5 Operator Interface/Wash Setup Screens
Setup

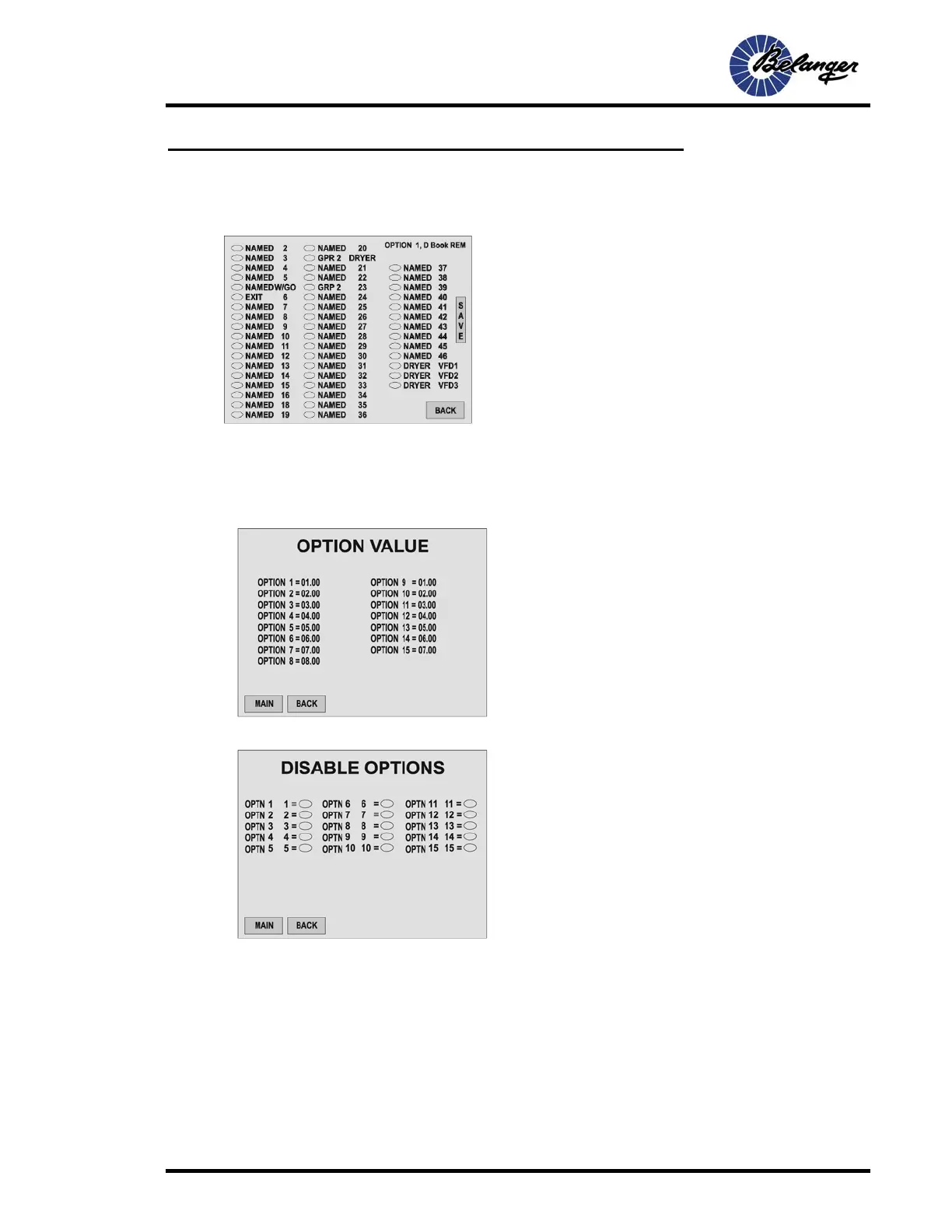

Setup / Options (typical): second screen for removing Functions
CHANGES WILL NOT TAKE EFFECT AND WILL BE LOST IF “SAVE” IS NOT SELECTED ONCE SELECTIONS
ARE MADE.
Pressing the BACK key on the above screen will return you to the first option screen.
Setup / Options / Option Value
Setup / Options / Option Block
Screen Key:
• When an oval is filled it becomes REMOVED from the
Option/Wash.
• Touching the desired oval will toggle it between filled and
unfilled
• VFD Mode 1 – Network VFD Dryer switch to set distance
for Package.
• VFD Mode 2– Network VFD Dryer switched OFF for
Package.
• VFD Mode 3– Network Pump 1 selected for Package.
Screen Key:
• On this screen you will enter the Value/Costs of
each Option.
• To make a change, touch the desired Value and
enter new Value in the “Pop-Up Number Pad”.
• The value of the Options may be negative
Screen Key:
• The Options are DISABLED when the oval to the
right is filled.
• Touch the oval next to the associated Option to
toggle between filled and unfilled.
