Maintenance
Motor Gearbox and Torque Plate Replacement
Remove Motor Gearbox & Torque Plate Assembly

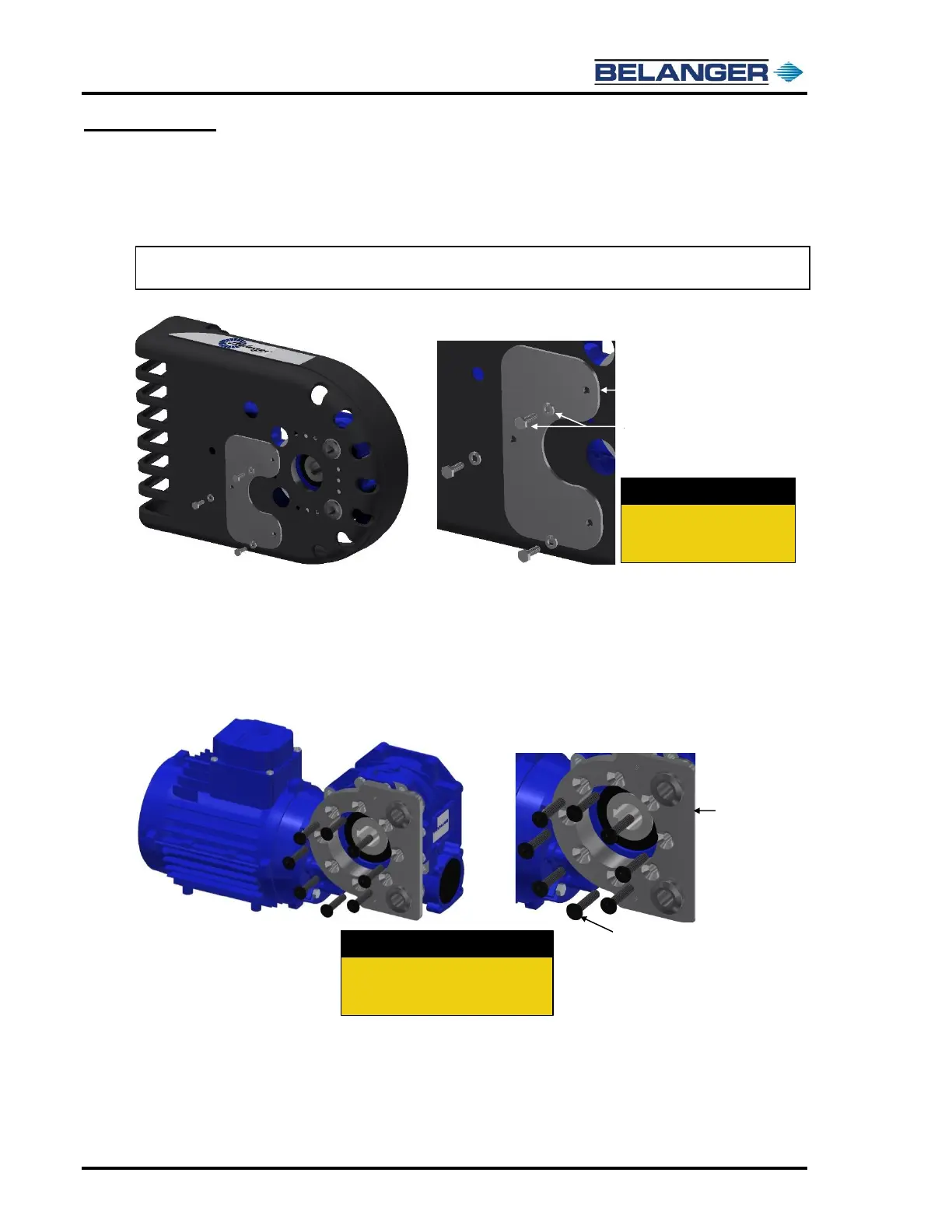

24) Remove the base of the Cover by removing the three fasteners on the Cover Mount Plate.
See the images below.
Note: Once the Cover Mount and Cover are removed, you will be able to access the bottom of the
Gearbox / Torque Plate Assembly.
25) If replacing the Motor Gearbox and Torque Plate, skip Step 26 and continue to the next
section. If replacing just the Torque Plate perform Step 26 and then continue to the next
section.
26) Separate the Mounting Ring and expose the mounting holes on the Gearbox, use a 5 mm hex
head socket to remove the eight fasteners and Torque Plate. See the images below.
