SpinLiteĀ® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 69
Maintenance
Motor Gearbox and Torque Plate Replacement
Remove Motor Gearbox & Torque Plate Assembly
21) Remove the Torque Stud Retainer Pins and Washers from above the Gearbox Torque Plate
mounting holes allowing the Motor Gearbox to be removed.
22) Pull the Motor Gearbox and Cover Assembly straight off of the Torque Studs and Drive Shaft.
23) Move the Motor Gearbox Assembly to a work surface and turn it over to expose the bottom
Cover and the Cover Mounting Plate.
Note: You will need a work surface such as a table or a bench available to allow for disassembly of
the Motor Gearbox Torque Plate assembly.

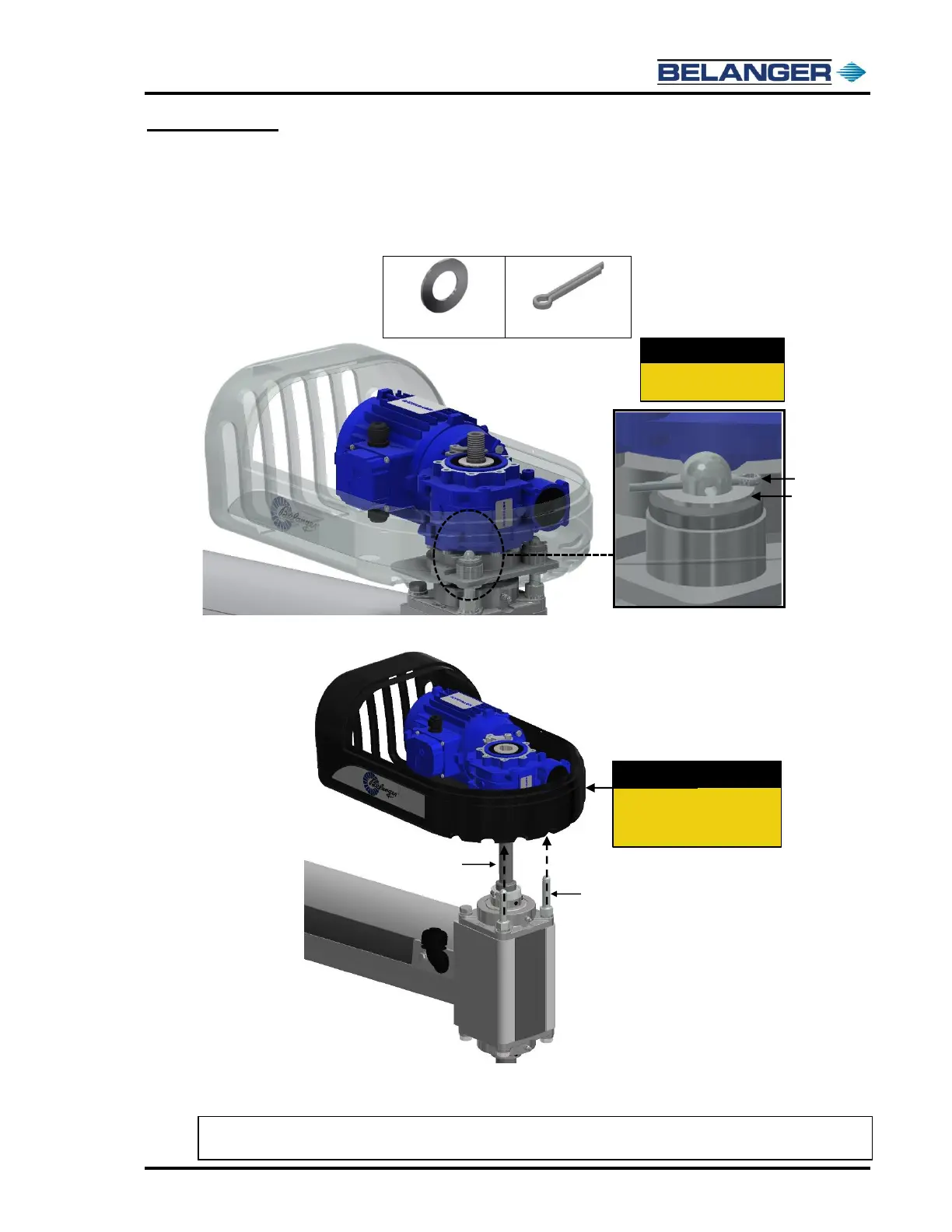

Slide the Motor/Gearbox &
Cover Assembly off of the
Torque Studs and Drive Shaft.
