SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 68
Maintenance
Motor Gearbox and Torque Plate Replacement
Remove Motor Gearbox & Torque Plate Assembly

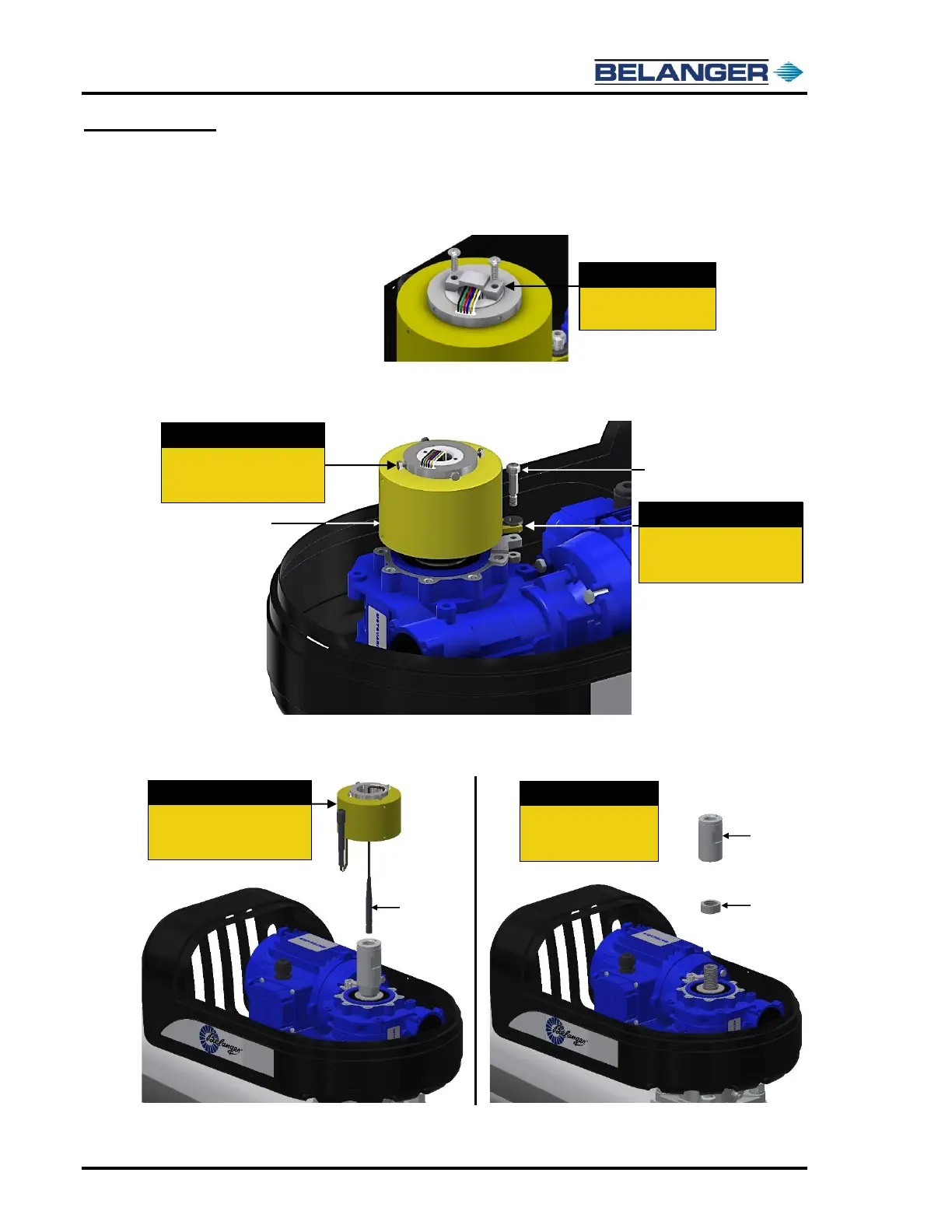

17) Unfasten and remove the Wire Clamp from the top of the Slip Ring.
18) Loosen the 4 setscrews that secure the Slip Ring to the Slip Ring Shaft and remove the
Shoulder Bolt that secures the Slip Ring to the Torque Mount, refer to the image below.
19) Slide the Slip Ring off of the Slip Ring Shaft and pull the Slip Ring Plug up through and out of
the Drive Shaft as shown below.
20) Unthread the Slip Ring Shaft and Jam Nut from the Drive Shaft as shown above.
Shoulder Bolt:
5/16” X 3/4"
Nut: 1/4”-20
Slip Ring
Loosen the four (4) setscrews
that secure the Slip Ring to
the Slip Ring Shaft.
Step 18a:
Torque Mount
Remove the shoulder bolt that
secures the Slip Ring to the
Torque Mount.
Step 18b:
Remove Wire Clamp
from the Slip Ring Shaft.
Step 17:
Slip Ring
Plug
Slide Slip Ring off of Slip Ring
Shaft and pull Slip Ring Plug
out of Drive Shaft.
Step 19:
Remove Slip Ring Shaft
and Jam Nut from the
Drive Shaft.
Step 20:
Slip Ring
Shaft
Jam Nut
