SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 75
Maintenance
Motor Gearbox and Torque Plate Replacement
Install New Motor Gearbox & Torque Plate Assembly

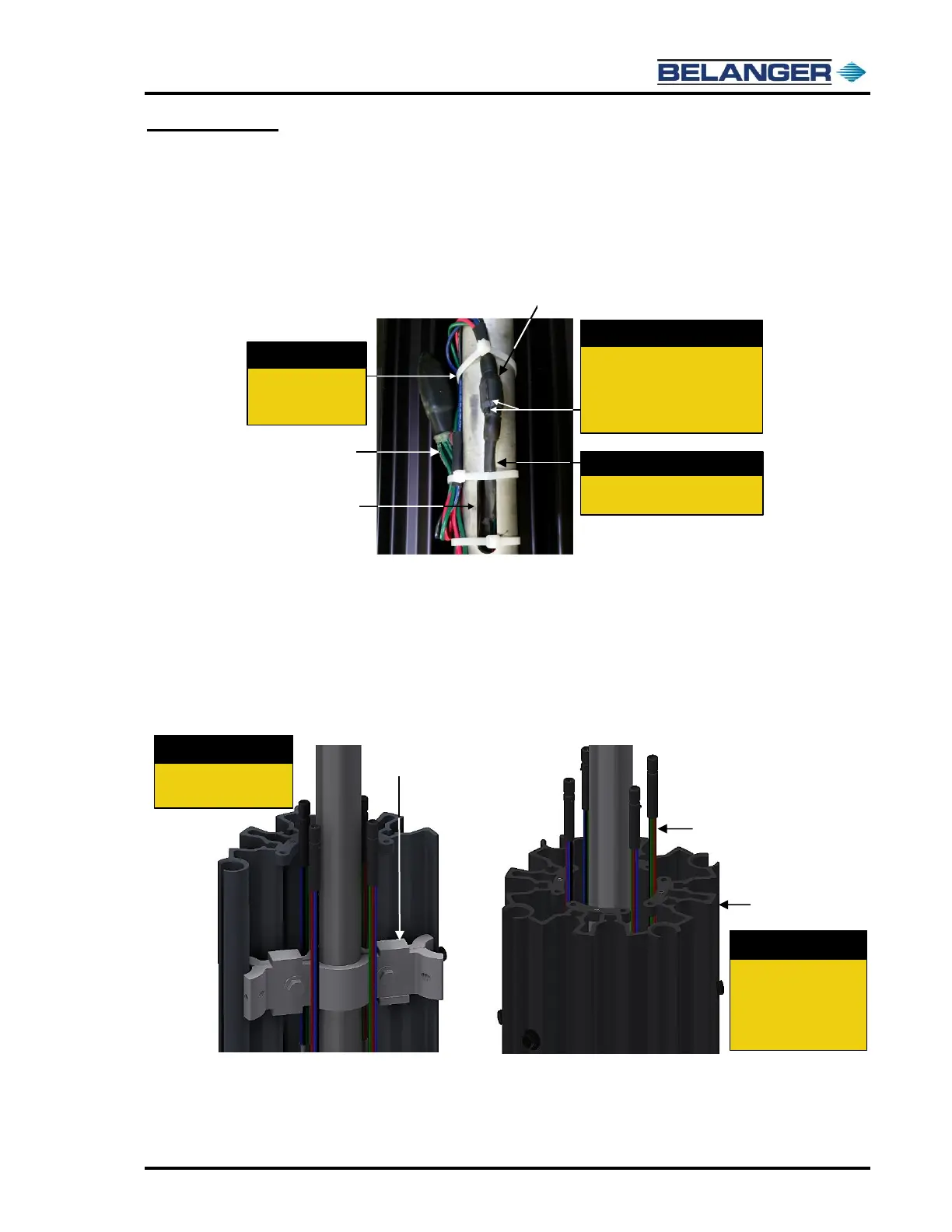

10) In the Hub Assembly, locate the Slip Ring Plug that was routed down through the Drive Shaft.
Pull enough of the Slip Ring Wires out through the slot in the Drive Shaft so it can easily be
connected to the Wire Harness, shown in the image below.
11) Apply dielectric grease to the receptor on the Wire Harness align the indicators on the Slip
Ring Plug and Wire Harness Receptor and press them together gently. Wrap the connection
with electrical tape to protect them from the car wash elements.
12) Use Tie Straps to secure the Wire Harness to the Drive Shaft as shown in the image above.
13) Route the LED Wires from the Wire Harness to above the Top Spider and the top of the Hub
Skin, shown in the images below.
14) Reattach the Hub Skin to the Hub Assembly and tighten all fasteners; be careful not to over
tighten the bolts or to crimp any of the wires, shown below.
15) If the Cleaning Material was removed from the Hub Skin during disassembly reload the
ShineMitt™ Cleaning Material onto the Hub per the instructions given in the Installation section
of this manual.
Apply dielectric grease to the
Wire Harness Receptor. Align the
indicators on the Slip Ring Wire
and Wire Harness and press the
connectors together gently.
